DEH-80PRS/XNUC
24
1234
1234
C
D
F
A
B
E

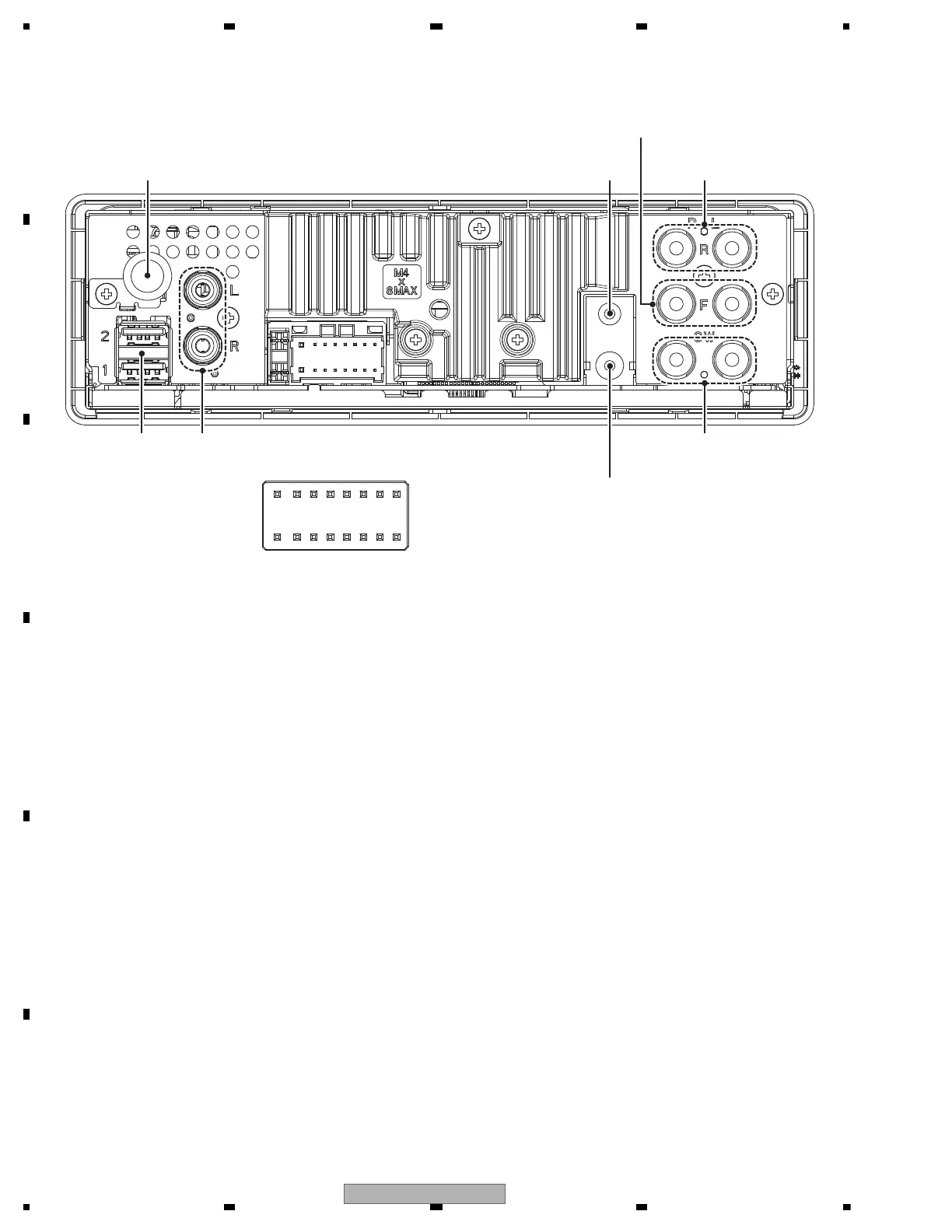

5.3 CONNECTOR FUNCTION DESCRIPTION
1 FL+
2 FR+
3 FL-
4 FR-
5 RL+
6 RR+
7 RL-
8 RR-
9 NC
10 NC
11 ILL
12 NC
13 ACC
14 B.REM
15 B.UP
16 GND
16
14
12
10 8
6
42
15
13
11
97
5
31
FM/AM ANTENNA
USB
REAR OUTPUT or
HIGH RANGE OUTPUT
SUBWOOFER or
LOW RANGE OUTPUT
REAR AUX
INPUT
FRONT OUTPUT or MID RAGE OUTPUT
WIRED REMOTE CONTROL INPUT
MICROPHONE INPUT for BT
(UC, EW5 only)

Pioneer DEH-80PRS Series Specifications

General

Channels	4
Preamp Outputs	6-channel
Preamp Voltage	5 volts
Subwoofer Output	Yes
Bluetooth	No
Auxiliary Input	Front
CD Playback	Yes
DIN Size	Single DIN
CEA-2006 Compliant	Yes
Display Type	LCD
MP3 Playback	Yes
WMA Playback	Yes
AAC Playback	Yes
FLAC Playback	Yes
HD Radio	No
Remote Control	Yes
Built-in DSP	Yes
Built-in Parametric EQ	Yes
Time Alignment	Yes
MOSFET Power Supply	Yes
High-Voltage Preamp Output	Yes
Digital Time Correction	Yes
Auto EQ	Yes
Advanced Sound Retriever	Yes
Dual Zone	No
iPod/iPhone Control	Yes
Detachable Faceplate	Yes
Power Output	50 Watts x 4 Channels
RMS Power Output	14 Watts x 4 Channels
Peak Power Output	50 watts
USB Input	Front
Display	LCD
SIRIUS or XM Radio Ready	Yes
Equalizer	16-Band Graphic Equalizer
