Pioneer DEH-X6500BT Service Manual

DEH-X65BT/XNUC
16
1234
1234
C
D
F
A
B
E
5. DIAGNOSIS

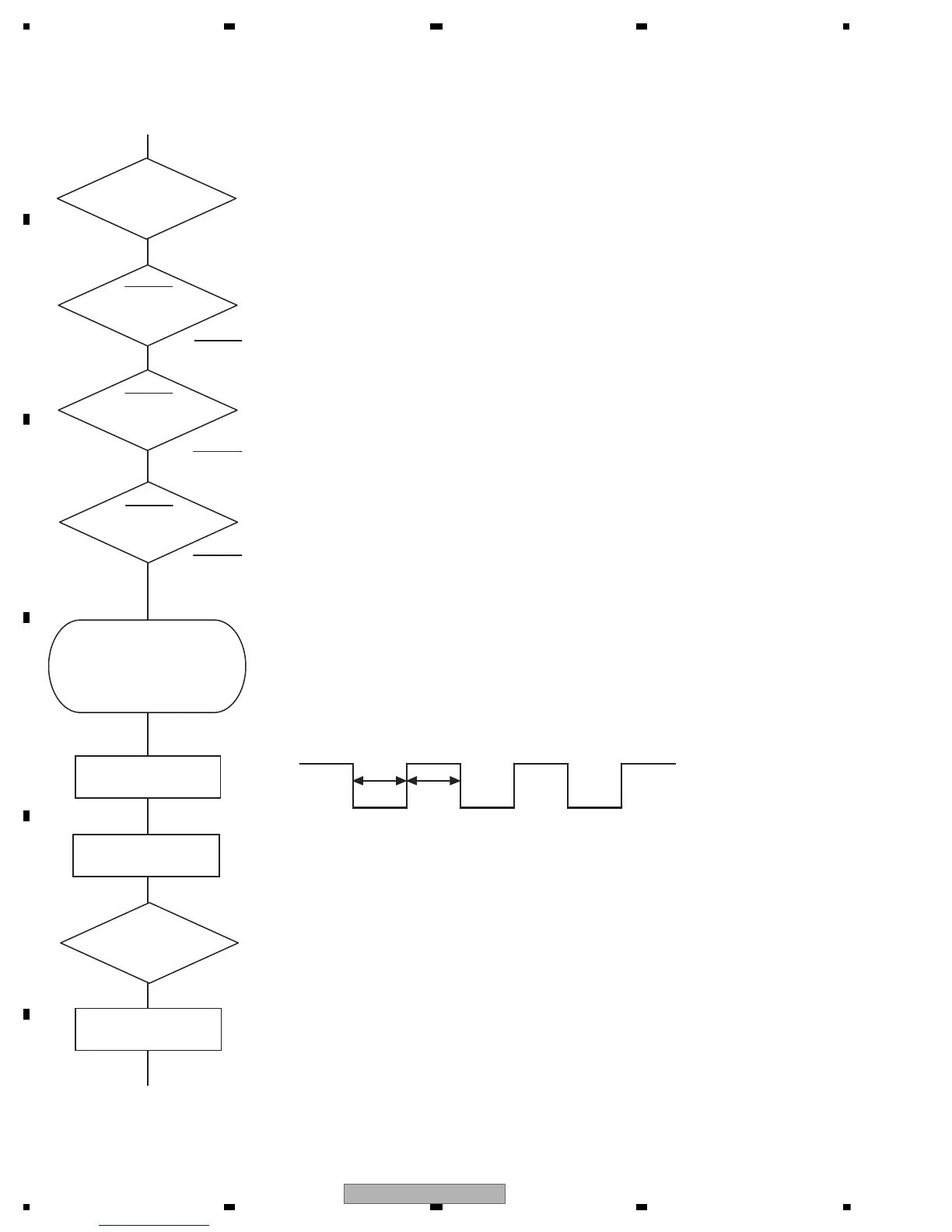

5.1 OPERATIONAL FLOWCHART
Vcc = 1.2 V
PVcc = 3.3 V
BSENS
Pin 90
ASENS
Pin 89
DSENS
Pin 34
BSENS = L
DSENS = L
Starts
communication
with Grille
microcomputer.
SWVDD <- H
Pin 113
Source keys
operative
Source ON
SYSPW <- H
Pin 8
300 ms
300 ms
In case of the above signal, the communication
with Grille microcomputer may fail.
If the time interval is not 300 msec, the oscillator
may be defective.
Completes power-on operation.
(After that, proceed to each source operation)
Power ON
ASENS = L
Vcc : Pin 12, 20, 43, 78, 86, 109
PVcc : Pin 3, 16, 28, 36, 48, 69, 82,101, 112

Pioneer DEH-X6500BT Specifications

General

MP3 playback	Yes
Preset stations quantity	24
Product color	Black
Volume control	Rotary
Disc types supported	CD, CD-R, CD-RW
Equalizer bands quantity	5
Display type	LCD
Display number of colors	210000 colors
USB version	2.0
Bluetooth profiles	A2DP, AVRCP, HFP, SSP
Line outputs (RCA)	2
USB ports quantity	1
Handheld remote control	No
Amplifier output power	200 W
