Pioneer DEH-X6500BT Service Manual

DEH-X65BT/XNUC
20
1234
1234
C
D
F
A
B
E

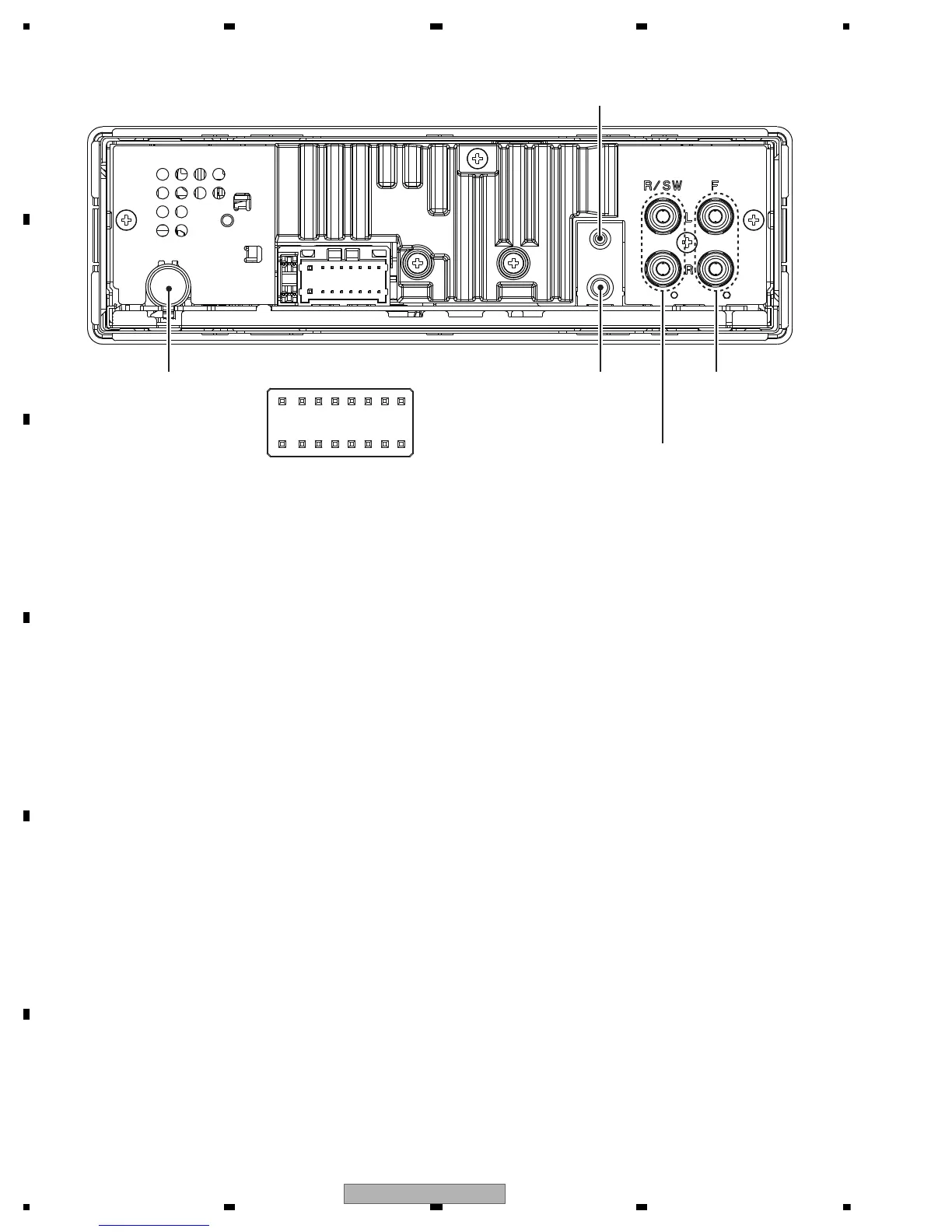

5.3 CONNECTOR FUNCTION DESCRIPTION
ANTENNA
1 FL+
2 FR+
3 FL-
4 FR-
5 RL+
6 RR+
7 RL-
8 RR-
9 NC
10 NC
11 NC
12 NC
13 ACC
14 B.REM
15 B.UP
16 GND
WIRED
REMOTE
CONTROL
REAR OUTPUT or
SUBWOOFER OUTPUT
FRONT
OUTPUT
16
14
12
10 8
6
42
15
13
11
97
5
31
MICROPHONE INPUT

Pioneer DEH-X6500BT Specifications

General

MP3 playback	Yes
Preset stations quantity	24
Product color	Black
Volume control	Rotary
Disc types supported	CD, CD-R, CD-RW
Equalizer bands quantity	5
Display type	LCD
Display number of colors	210000 colors
USB version	2.0
Bluetooth profiles	A2DP, AVRCP, HFP, SSP
Line outputs (RCA)	2
USB ports quantity	1
Handheld remote control	No
Amplifier output power	200 W
