Pioneer DEH-X6500BT Service Manual

DEH-X65BT/XNUC
21
5 678
56
7
8
C
D
F
A
B
E

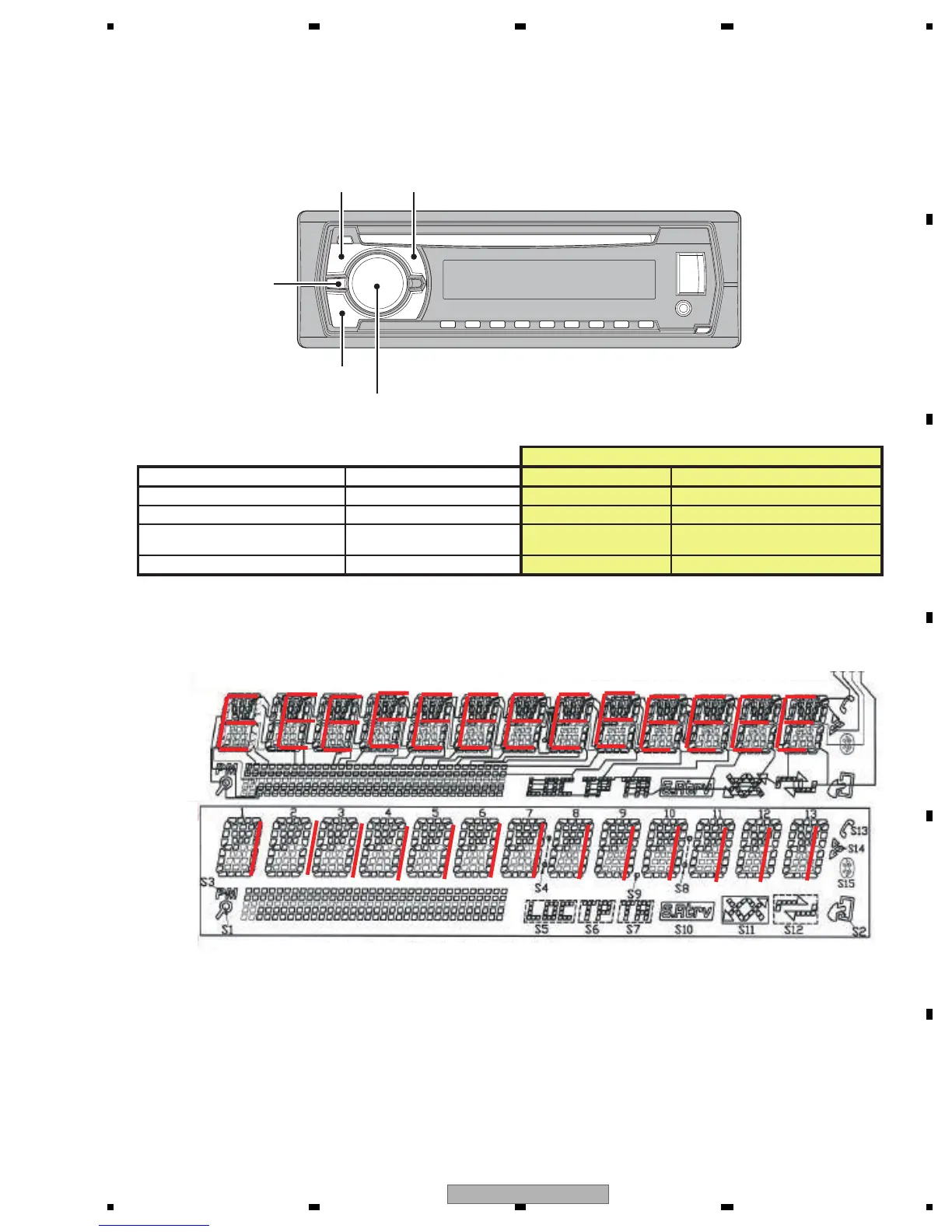

6. SERVICE MODE
6.1 DISPLAY TEST MODE 1
Grille condition
Conf. item Operate Show LCD RGB
All light up
PHONE + LIST
Draw 1 White
All light off SOURCE No light Draw2 No light
Conf. LCD pattern 1
(* And change ILM color)
BAND Draw 3
Red
Conf. LCD pattern 2
ROTARY center
Draw 4 Green
Drawings Style
Draw1 ALL light up
Draw2 ALL light off
Draw3
Draw4
BAND
SOURCE
PHONE
LIST
ROTARY
Press and hold "PHONE" and "LIST" buttons together, and turn BUP and ACC on.
[How to enter Test mode]
