Pioneer DEH-X6500BT Service Manual

DEH-X65BT/XNUC
25
5 678
56
7
8
C
D
F
A
B
E

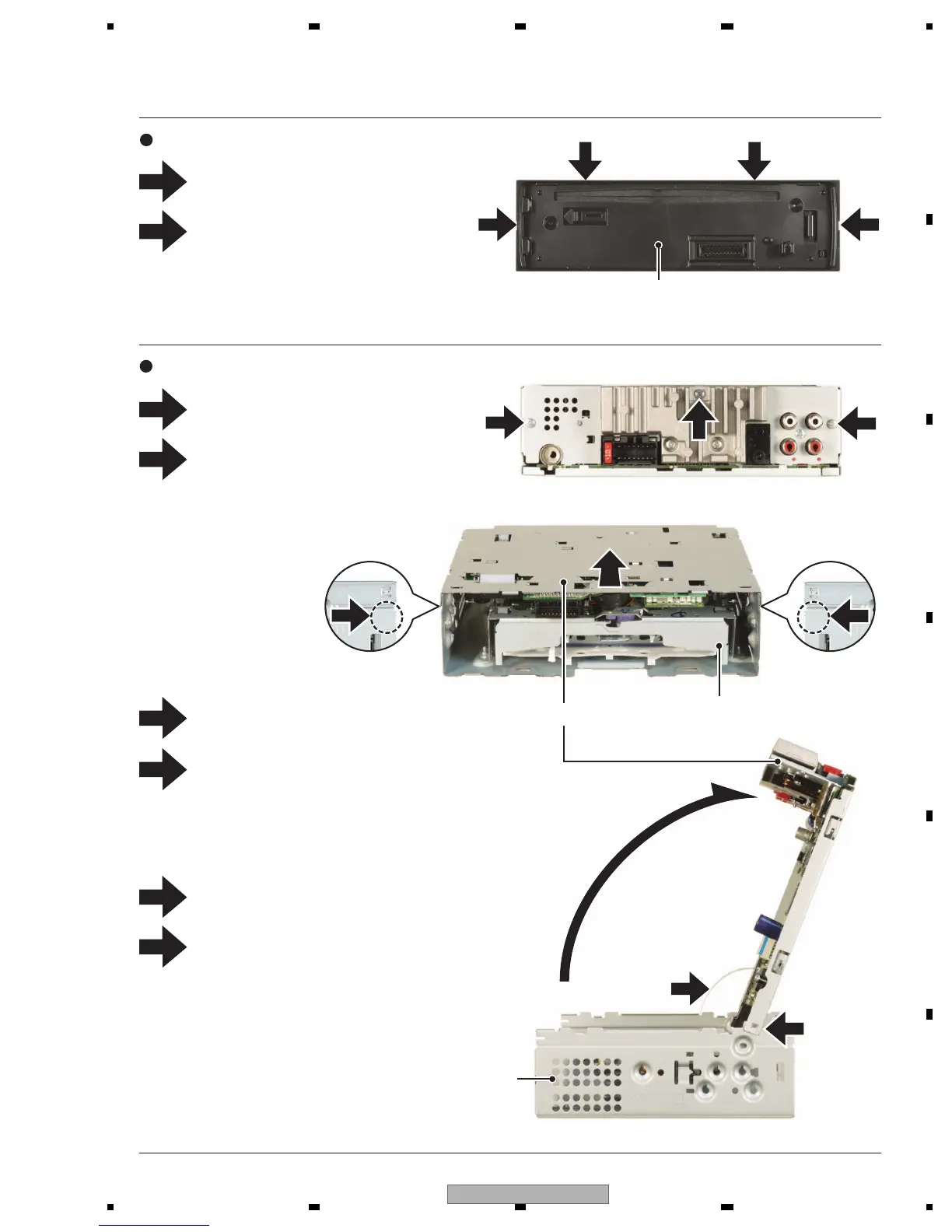

7. DISASSEMBLY
2
2
2
2
1
While the photograph shown is slightly different from this model in shape, the disassembly procedure is the same.
2
1
2
3
4
5
6
1
Push the area and remove the two hooks.
Slide the Tu n er Amp Assy in the direction
of the arrow.
The Tuner Amp Assy is fixed into the ditch.
Disconnect the FFC and then remove the
CD Mechanism Module.
1 1
3
3
Lift off the Tuner Amp Assy from the Heat Sink side.
Heat Sink side
The CD Mechanism Module side is made a bottom.
- Removing the CD Mechanism Module (Fig.2)
CD Mechanism Module
CD Mechanism Module
Tu ne r Amp Assy
Release the two latches.
Release the two latches and then remove
the Panel Assy.
- Removing the Panel Assy (Fig.1)
Fig.2
Fig.1
Remove the screw.
Remove the two screws.
Panel Assy
6
4
5

Pioneer DEH-X6500BT Specifications

General

MP3 playback	Yes
Preset stations quantity	24
Product color	Black
Volume control	Rotary
Disc types supported	CD, CD-R, CD-RW
Equalizer bands quantity	5
Display type	LCD
Display number of colors	210000 colors
USB version	2.0
Bluetooth profiles	A2DP, AVRCP, HFP, SSP
Line outputs (RCA)	2
USB ports quantity	1
Handheld remote control	No
Amplifier output power	200 W
