DV-360-S

1234

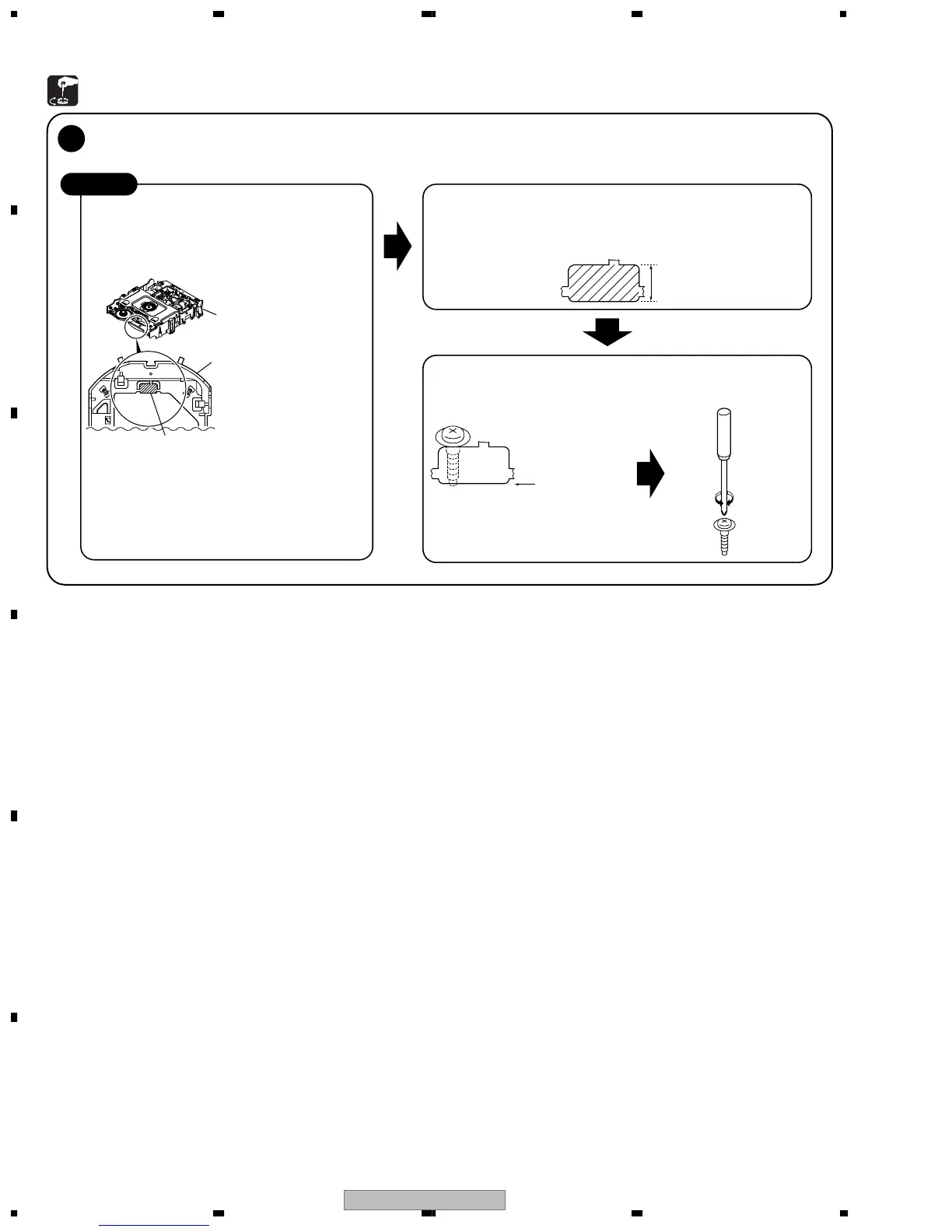

6.5 MECHANISM ADJUSTMENT

• Remove the Loading Mecha. Assy.

• Remove a Spacer for height adjustment

attached to the back side (shaded area)

of the Loading Mecha. Assy (Float Base)

with nippers.

Cautions:

Because there is not a Spacer for height adjustment in

adjustment after the second time, will keep it at need.

(This parts is Traverse mechanism exclusive use of a model

for 2003 years)

Put a spacer between a Tangential (or Radial) adjustment

screw and Mechanism Base and turn each screw to adjust

the height. (Refer to "6.1 ADJUSTMENT ITEMS AND

LOCATION".)

START

Tangential and Radial Height Coarse Adjustment

Loading Mecha. Assy

7.3mm

Turn a flat side

into bottom

Spacer for Height adjustment

Float Base

Note:

Before removing the flexible cable for the

pickup, soldering of the pickup circuit is

necessary.

For details, see "7.1.9 DISASSEMBLY".
