Pioneer GM-D9605 Service Manual

GM-D9605/XEEL
18
1234 1234
C D F A B E

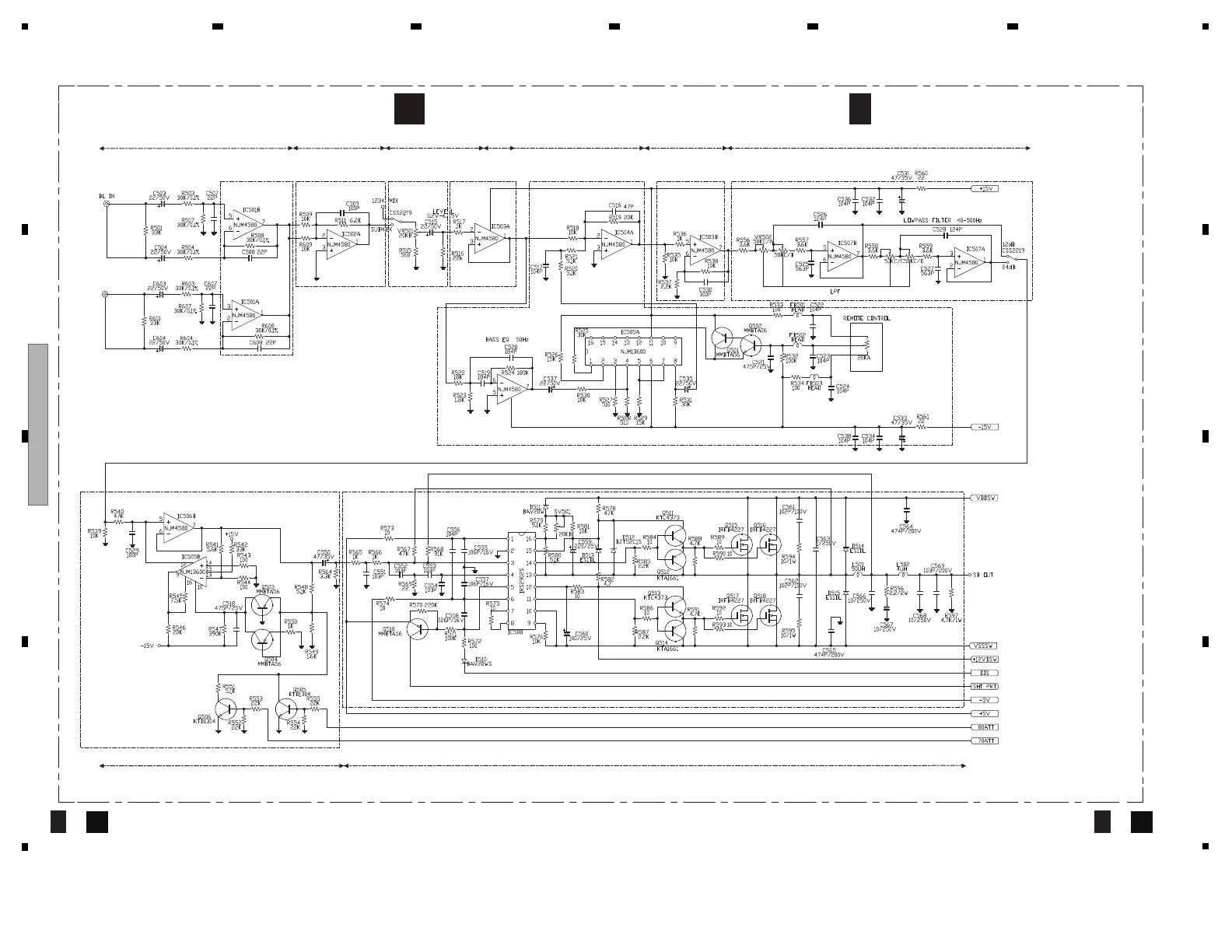

10.3 MAIN PCBA (SW channel), SUB PCBA
B
A
3/4
B
A
3/4
MAIN PCBA(SW channel)SUB PCBA
3/4
A
GAIN 19.0dB
(Vo=0.0dBv)
GAIN 19.0dB
(Vo=0.0dBv)
GAIN 0.0dB
(Vo=-270dBv)
GAIN 27.0dB
(Vo=0.0dBv)
ISOLATOR MIXING GAIN CONTROL
POWER AMPLIFIER for Sub woofer ch
THERMAL PROTECTOR
BUFFER BUFFER
LPF/HPF/PASS
BASS BOOST
B

Pioneer GM-D9605 Specifications

General

Bass boost	0 - 18 dB
Amplifier class	F/D
High pass filter	Yes
RMS output power (max)	2000 W
Signal-to-Noise Ratio (SNR)	94 dB
Number of amplifier channels	5 channels
RMS power output per channel (2 Ohm)	100 W
RMS power output per channel (4 Ohm)	75 W
Maximum power output per channel (4 Ohm)	150 W
Audio RCA inputs	6
Product color	Black

Weight and Dimensions

Depth	200 mm
Width	315 mm
Height	51 mm
