Pioneer GM-D9605 Service Manual

GM-D9605/XEEL
3
5678
56
7
8
C
D
F
A
B
E
1. SERVICE PRECAUTIONS
1.1 SAFETY PRECAUTIONS
1.2 NOTES ON DISASSEMBLY / ASSEMBLY
You should conform to the regulations governing the product (safety, radio and noise, and other regulations),
and should keep the safety during servicing by following the safety instructions described in this manual.
You should conform to the regulations governing the product (safety, radio and noise, and other regulations),
and should keep the safety during servicing by following the safety instructions described in this manual.

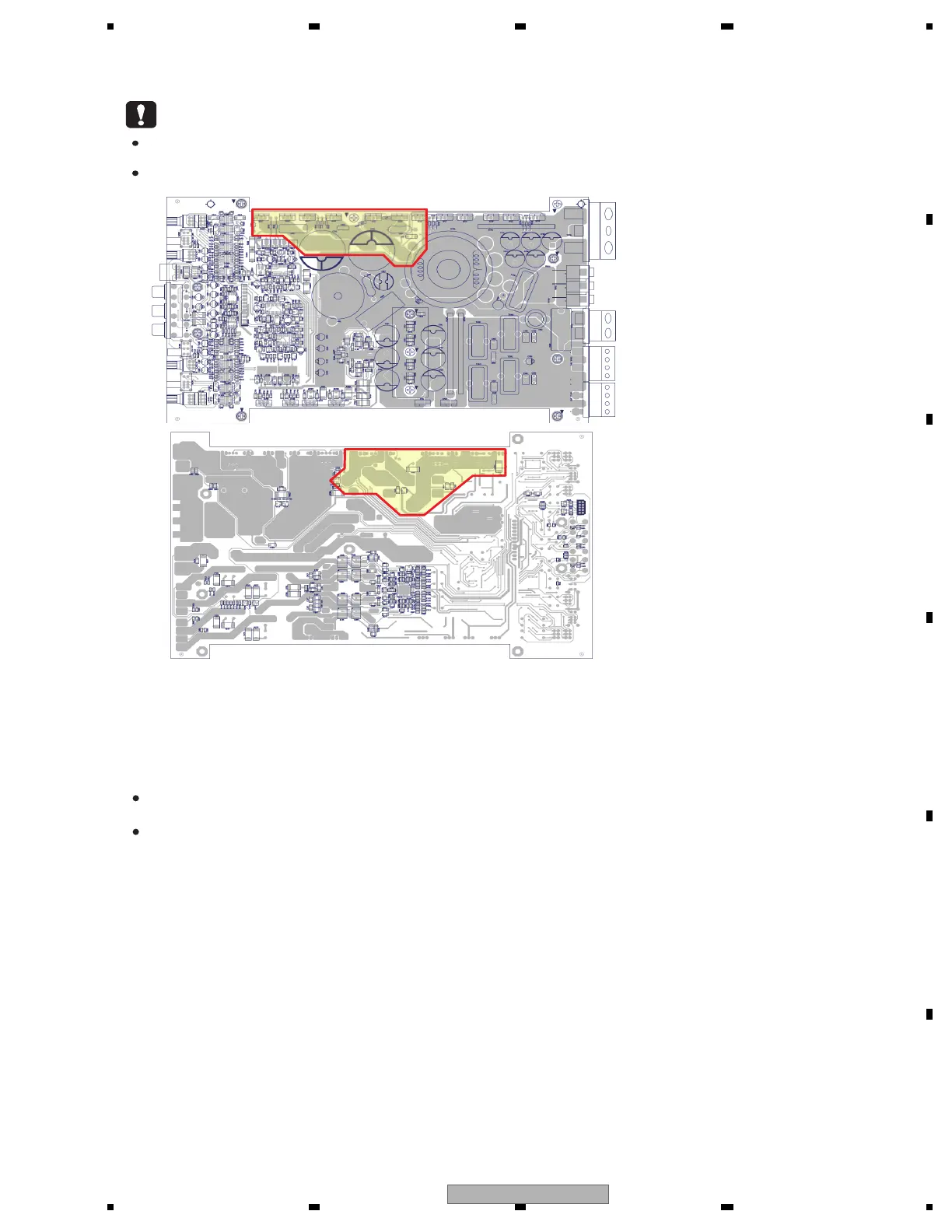

Please be aware of high voltage area marked in red box as follows.
Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors during power-on
mode may damage the ICs inside the unit.
Please be sure to conduct line process to original status if you make assembling after repair.

Pioneer GM-D9605 Specifications

General

Bass boost	0 - 18 dB
Amplifier class	F/D
High pass filter	Yes
RMS output power (max)	2000 W
Signal-to-Noise Ratio (SNR)	94 dB
Number of amplifier channels	5 channels
RMS power output per channel (2 Ohm)	100 W
RMS power output per channel (4 Ohm)	75 W
Maximum power output per channel (4 Ohm)	150 W
Audio RCA inputs	6
Product color	Black

Weight and Dimensions

Depth	200 mm
Width	315 mm
Height	51 mm
