Pioneer PD-F1007 Service Manual

PD-F1007
22
A
B
C
D
1
23
4
1234
NOTE FOR PCB DIAGRAMS:
1. Part numbers in PCB diagrams match those in the schematic
diagrams.
2. A comparison between the main parts of PCB and schematic
diagrams is shown below.
3. The parts mounted on this PCB include all necessary parts
for several destination.
For further information for respective destinations, be sure
to check with the schematic diagram.
4. Viewpoint of PCB diagrams
Symbol in PCB
Diagrams
Symbol in Schematic
Diagrams
Part Name
Transistor
Transistor
with resistor
Field effect
transistor
Resistor array
3-terminal
regulator
BCE
BCE
BCE
DGS
BCE
BCEBCE
DGSDGS
Capacitor
Connector
P.C.Board Chip Part
SIDE A
SIDE B

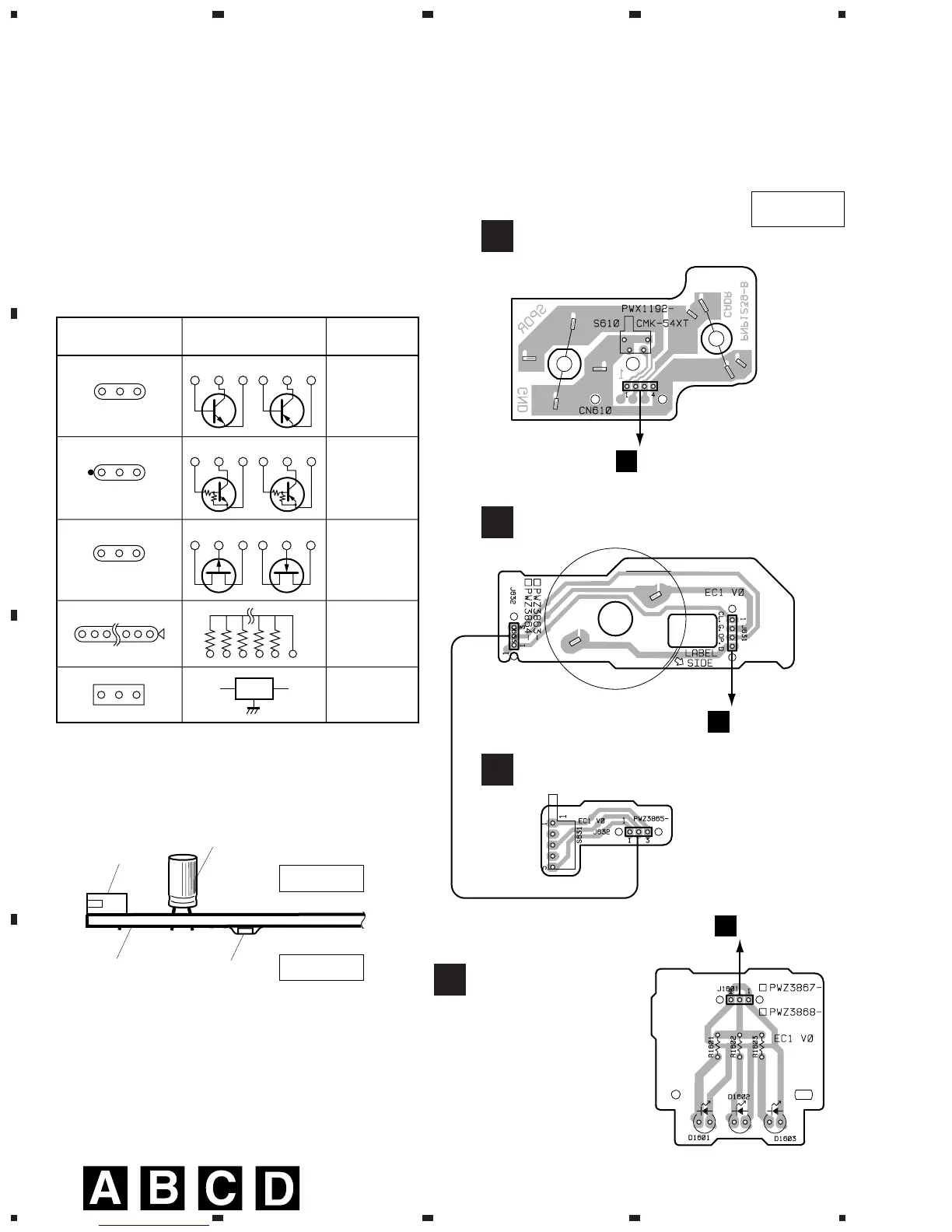

4. PCB CONNECTION DIAGRAM
MECHANISM BOARD ASSY
A
DOOR MOTOR BOARD ASSY
B
DOOR SW BOARD ASSY
C
LED BOARD ASSY
D
CARRIAGE
MOTOR
M
SPINDLE
MOTOR
M
INSIDE
K
CN207
K
CN205
K
CN208
(PNP1239-C)
(PNP1451-C)
(PNP1451-C)
(PNP1451-C)
4.1 MECHANISM BOARD, DOOR MOTOR BOARD, DOOR SW BOARD and LED BOARD
ASSEMBLIES
SIDE A
