Pioneer PD-F1007 Service Manual

PD-F1007
56
SPECIFICATIONS
4. INPUT Output terminal
Audio line output
Control input/output jacks
CD-DECK SYNCHRO jack
Optical digital output jack
Headphone jack with volume control
MASTER/SLAVE Control input/output jack
SLAVE Audio input
5. Accessories
÷ Remote control unit .................................................................. 1
÷ Size AA/R6P dry cell batteries ................................................... 2
÷ Audio cable ............................................................................... 1
÷ Control cable ............................................................................. 1
÷ Operating instructions ............................................................... 1
Note!!
Specifications and design subject to possible modification without
notice, due to improvements.
1. General
Type ........................................... Compact disc digital audio system
Power requirements .............................................. AC 120V, 60 Hz
Power consumption ................................................................. 15W
Power consumption in standby mode ....................................... 2W
Operating temperature ............................................... +5°C - +35°C
(+41°F - +95°F)
Weight ( without package ) ................................. 8.0 kg (17 lb 6 oz.)
External dimensions ......................... 420(W) X 433(D) X 193(H) mm
16-9/16(W) X 17-1/16(D) X 7-5/8(H) in.
2. Audio section
Frequency response ................................................... 2 Hz - 20 kHz
S/N ratio .......................................................... 98 dB or more (EIAJ)
Dynamic range ................................................ 96 dB or more (EIAJ)
Harmonic distortion ....................................... 0.003 % or less (EIAJ)
Level difference between channels ................. 1.0 dB or less (EIAJ)
Output voltage .................................................. 2 ± 0.3 Vrms (EIAJ)
Wow and flutter ............................... less than ±0.001 % (W.PEAK)
( below measurable level ) (EIAJ)
Channels ............................................................ 2-channel ( stereo )

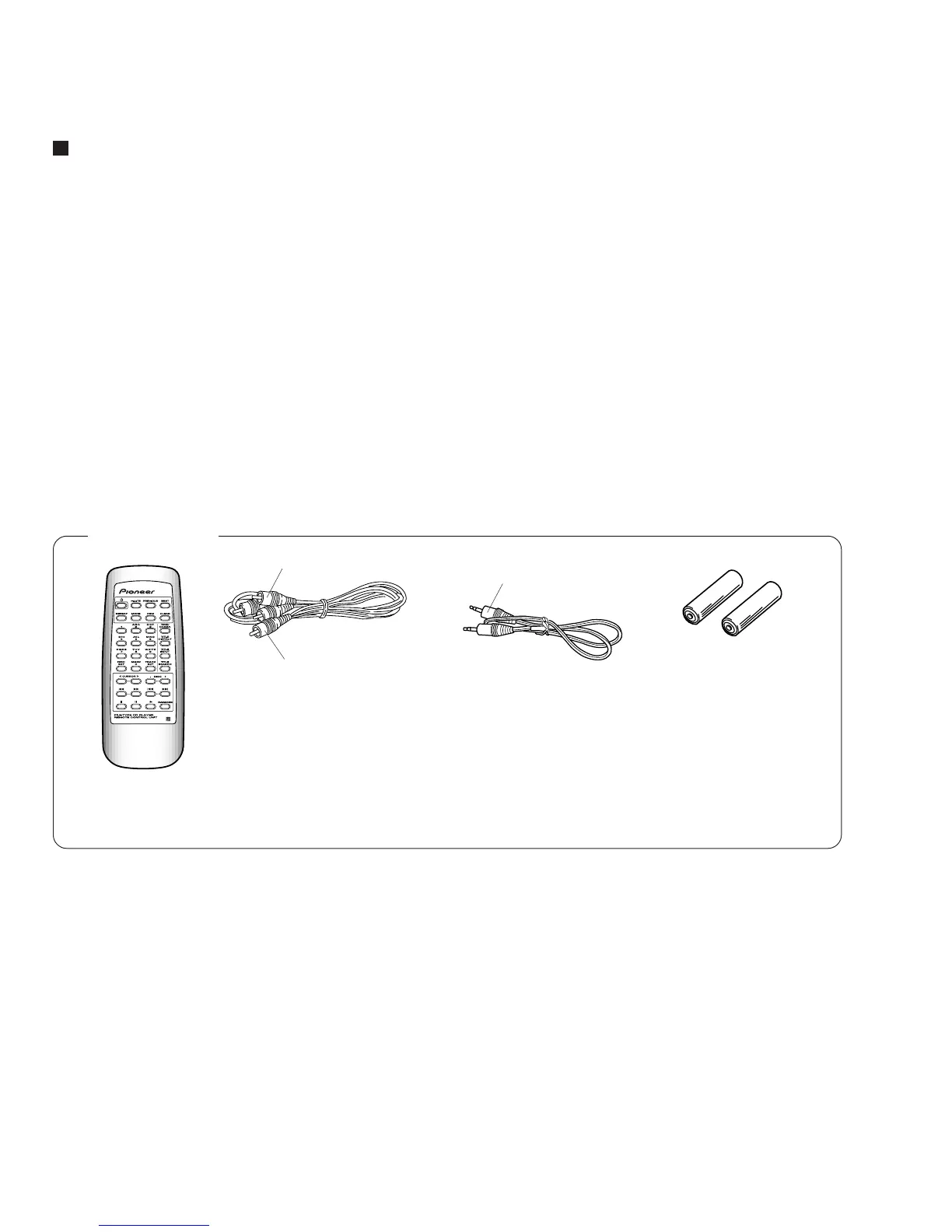

Remote control unit x 1
(CD-PD094)
(PWW1139)
Size AA/R6P dry cell
batteries x 2
(VEM–013)
Audio cable x 1
(PDE1248) (L=1 m)
Control cable x 1
(PDE1247) (L=1 m)
Other included items
÷ Warranty card
÷ Operating Instructions
Accessories
White
Red
Black

Pioneer PD-F1007 Specifications

General

Frequency range	2 - 20000 Hz
Signal-to-Noise Ratio (SNR)	98 dB
CD Text	Yes
Device type	HiFi CD player
Product color	Black
I/O ports	Optical Digital Output One More 300CD's Connect Headphone Output with Volume Control Keyboard Input
Dimensions (WxDxH)	420 x 433 x 193 mm

Weight and Dimensions

Weight	8000 g
