2. EXPLODED VIEWS AND PARTS LIST

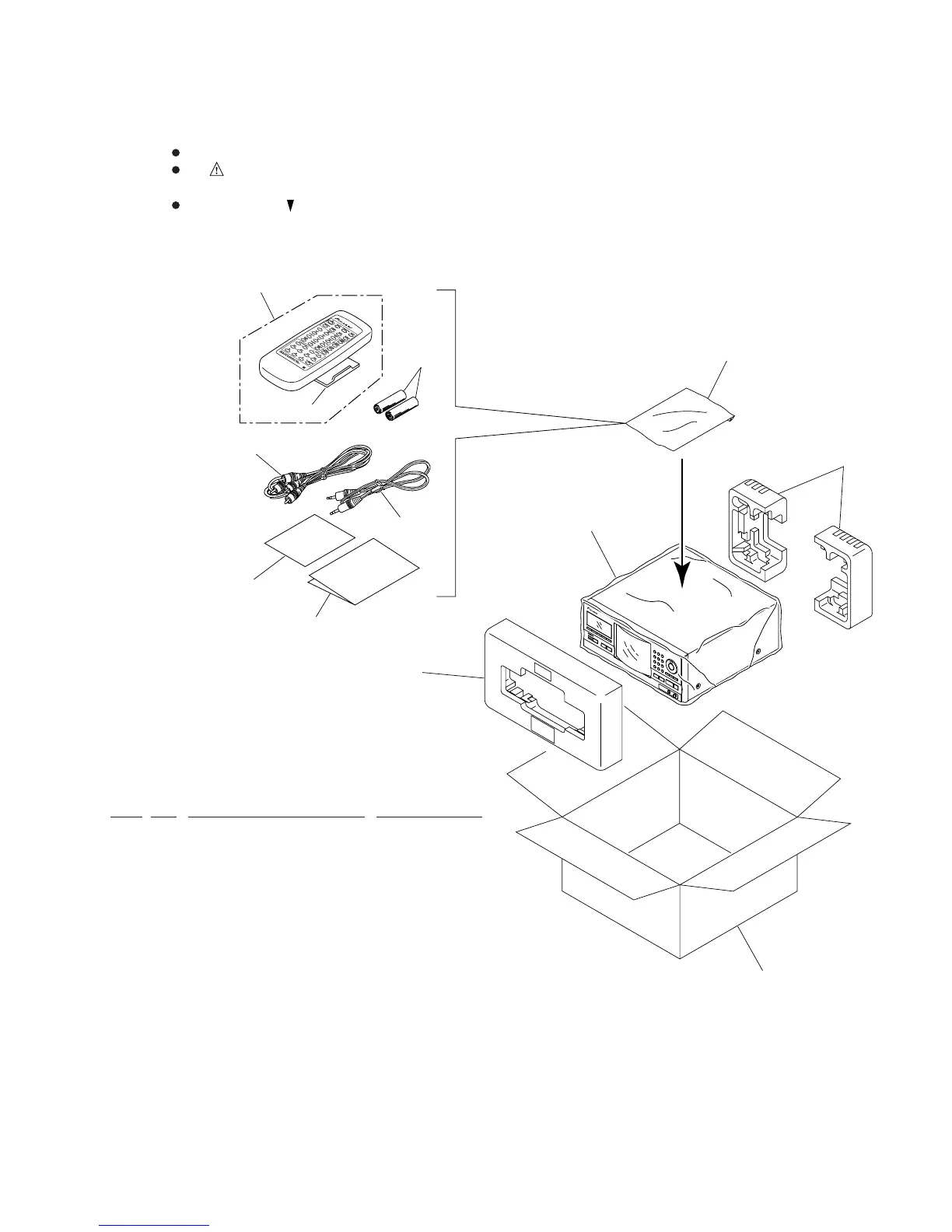

2.1 PACKING
PACKING PARTS LIST
1 Styrol Protector F PHA1325
2 Styrol Protector R PHA1326
3 Packing Case PHG2316
4 Packing Sheet RHC1023
5 Polyethylene Bag Z21–038
(0.03 × 230 × 340)
6 Operating Instructions (English) PRB1271
7 Remote Control Unit PWW1139
(CD-PD094)
8 Battery Cover AZA7204
NSP 9 Dry Cell Batteries (R6P, AA) VEM–013
10 Control Cable (L=1 m) PDE1247
11 Audio Cable (L=1 m) PDE1248
NSP 12 Warranty Card ARY7023
NOTES : Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screw adjacent to mark on the product are used for disassembly.
Mark No. Description Part No.

Pioneer PD-F1007 Specifications

General

Frequency range	2 - 20000 Hz
Signal-to-Noise Ratio (SNR)	98 dB
CD Text	Yes
Device type	HiFi CD player
Product color	Black
I/O ports	Optical Digital Output One More 300CD's Connect Headphone Output with Volume Control Keyboard Input
Dimensions (WxDxH)	420 x 433 x 193 mm

Weight and Dimensions

Weight	8000 g
