Step2: Connect the Speakers
2
1
3/8˝
(10 mm)
Speaker B
OR
ᴧᴧᴧᴧ
1 Speaker cable, 2 Subwoofer cable
Standard Connections

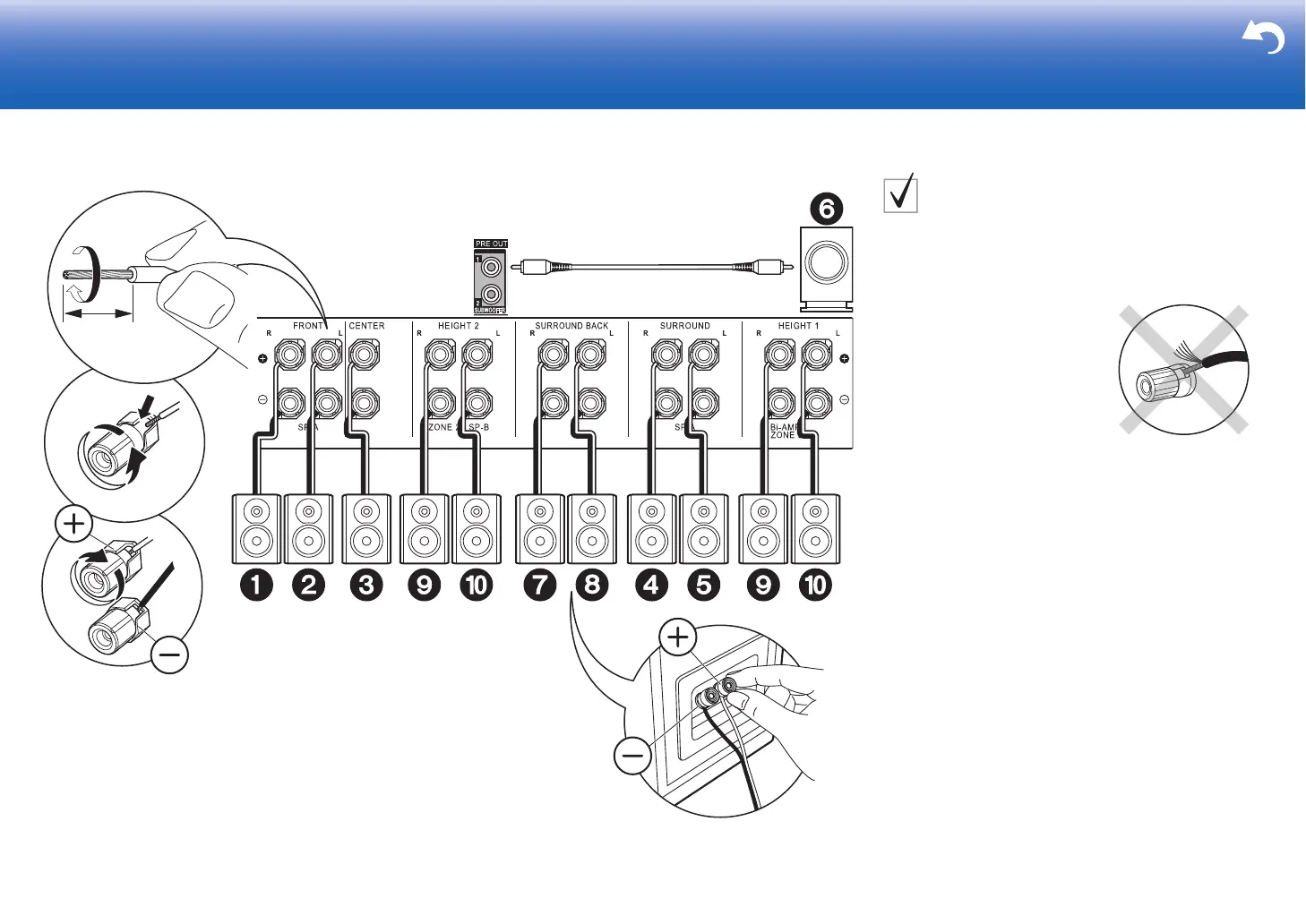

Refer to the illustration to connect the speaker system.
＊ Depending on the combination of speakers, you may need to
connect to other jacks. See "Points to note with speaker
combinations" (P9) for details.
Make sure the exposed wires of the speakers do not stick out of
the speaker terminals when connecting. If the exposed wires of
the speakers touch the rear panel or the + and – wires touch each
other, the protection circuit will be activated.

Pioneer SC-LX801 Specifications

General

Display	-
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby Digital Plus, Dolby Surround, Dolby TrueHD
Audio amplifier	Yes
Surround modes quantity	12
Apple docking compatibility	Not supported
Receiver type	Surround
Audio output channels	9.2 channels
Dynamic power per channel (4 Ohm)	255 W
Power output per channel (1KHz@6 Ohm)	200 W
Power output per channel (1KHz@8 Ohm)	140 W
Power output per channel (20-20KHz@8 Ohm)	- W
Supported video modes	1080p, 2160p
Supported radio bands	AM, FM
Preset stations quantity	40
Internet radio services supported	Pandora, Spotify, TuneIn
Audio formats supported	AAC, AIFF, DSD, FLAC, MP3, WAV, WMA
Headphone outputs	1
Headphone connectivity	3.5 mm
Number of HDMI outputs	2
Multichannel audio output type	Terminals
HDMI in	8
Digital audio optical in	3
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Card reader integrated	No
Cables included	AC

Weight and Dimensions

Depth	441 mm
Width	435 mm
Height	185 mm
Weight	18100 g
