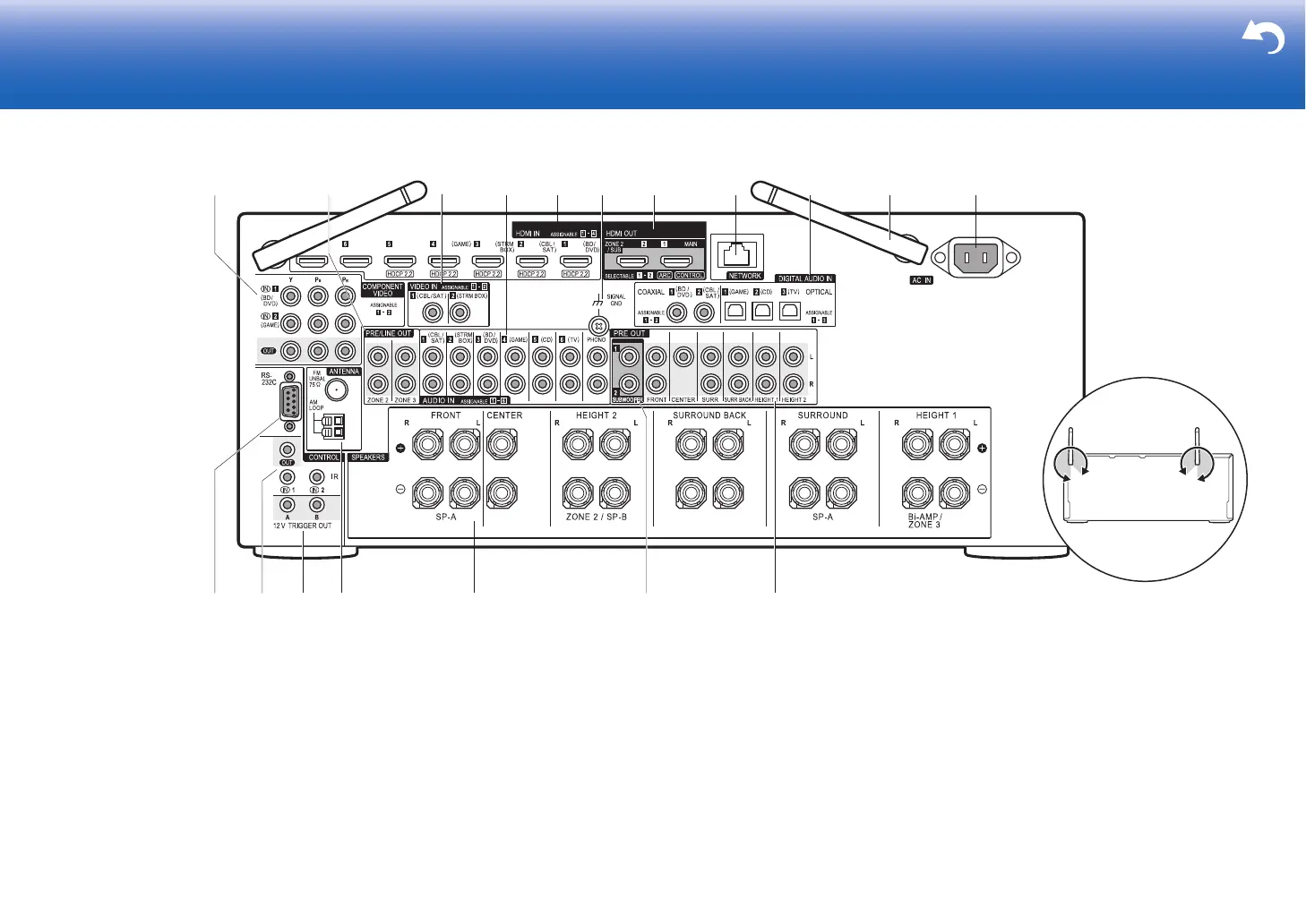

Rear Panel
1. COMPONENT VIDEO IN/OUT jacks: Transfer the video
signals of an AV component with a component video
cable.
2. ZONE 2/ZONE 3 PRE/LINE OUT jacks: Output audio
signals with an analog audio cable to a pre-main
amplifier or a power amplifier in a separate room (ZONE
2/ZONE 3). (P19, 20)
3. VIDEO IN jacks: Input the video signals from AV
components with an analog video cable.
4. AUDIO IN jacks: Input the audio signal from AV
components with an analog audio cable.
5. HDMI IN jacks: Transmit video signals and audio signals
with a HDMI cable connected to an AV component.
6. SIGNAL GND terminal: The ground wire of the turntable
is connected.
7. HDMI OUT jacks: Transmit video signals and audio
signals with a HDMI cable connected to a monitor such
as a TV or projector.
8. NETWORK port: Connect to the network with an
Ethernet cable.
9. DIGITAL AUDIO IN OPTICAL/COAXIAL jacks: Input the
digital audio signals from TV or AV components with a
digital optical cable or digital coaxial cable.
10. Wireless antenna: Used upright for Wi-Fi connection or
when using a BLUETOOTH enabled device. The
diagram shows the movable range for the wireless
antenna. Do not try to force it beyond this range
otherwise you may break it.
11. AC IN: The supplied power cord is connected.
12. RS-232C port: For connection to the home control system.
13. IR IN/OUT port: Allows you to connect a multiroom
remote control kit.
14. 12V TRIGGER OUT A/B jacks: Allows you to connect a
device with 12V trigger input jack to enable link operation
between the device and the unit.
15. ANTENNA AM LOOP/FM UNBAL 75Ω terminal: The
supplied antennas are connected.
16. SPEAKERS terminals: Connect speakers with speaker cables.
(North American models are compatible with banana plugs.)
17. SUBWOOFER PRE OUT jacks: Connect a powered
subwoofer with a subwoofer cable. Up to two powered
subwoofers can be connected. You can set the volume
levels of the 2 powered subwoofers to different levels.
18. PRE OUT jacks: Connect a power amplifier.
SC-LX801
1 4
3
57268
1817
910 11
12
16
14
1513
10

Pioneer SC-LX801 Specifications

General

Display	-
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby Digital Plus, Dolby Surround, Dolby TrueHD
Audio amplifier	Yes
Surround modes quantity	12
Apple docking compatibility	Not supported
Receiver type	Surround
Audio output channels	9.2 channels
Dynamic power per channel (4 Ohm)	255 W
Power output per channel (1KHz@6 Ohm)	200 W
Power output per channel (1KHz@8 Ohm)	140 W
Power output per channel (20-20KHz@8 Ohm)	- W
Supported video modes	1080p, 2160p
Supported radio bands	AM, FM
Preset stations quantity	40
Internet radio services supported	Pandora, Spotify, TuneIn
Audio formats supported	AAC, AIFF, DSD, FLAC, MP3, WAV, WMA
Headphone outputs	1
Headphone connectivity	3.5 mm
Number of HDMI outputs	2
Multichannel audio output type	Terminals
HDMI in	8
Digital audio optical in	3
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Card reader integrated	No
Cables included	AC

Weight and Dimensions

Depth	441 mm
Width	435 mm
Height	185 mm
Weight	18100 g
