Step3: Connect the TV
HDMI IN (ARC)
1
TV

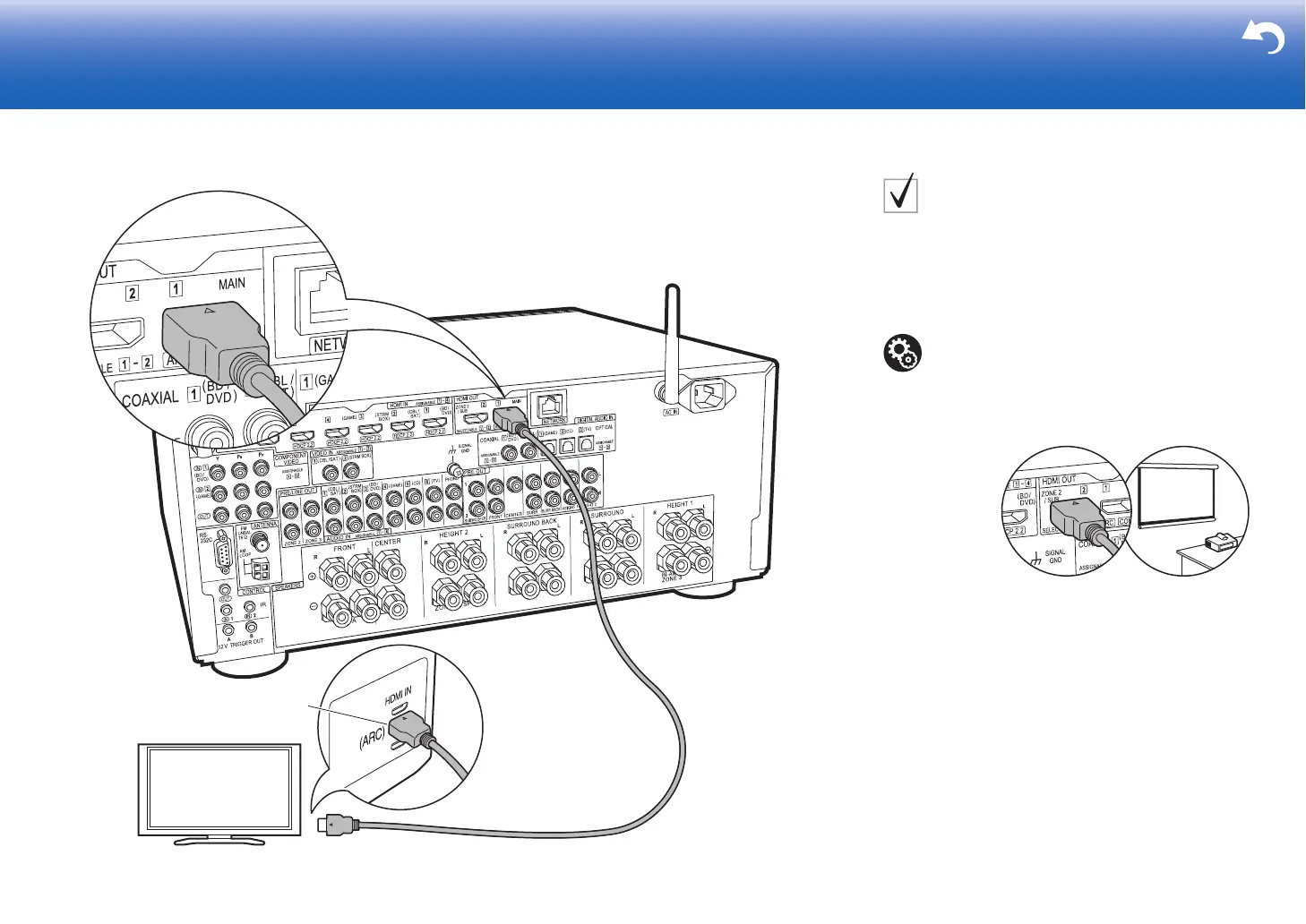

1 HDMI cable
TV-1 (ARC TV)
This describes the connections for a TV that supports the
ARC (Audio Return Channel) feature. By connecting with
a single HDMI cable, you can not only output the video
input to this unit to the TV, but you can also play the sound
from the TV through this unit. Choose an HDMI IN jack on
the TV that supports ARC when connecting.
Another TV or projector can be connected to the HDMI OUT SUB
jack. This jack does not support ARC. For details about how to
output video from the HDMI OUT SUB jack (P24)
Setup
0 Settings are required to use the ARC function.
Select "Yes" in "5. Audio Return Channel" (
P23)
in the Initial Setup.
0 Please refer to the TV's operation manual for
directions on connections and setup for the TV.

Pioneer SC-LX801 Specifications

General

Display	-
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby Digital Plus, Dolby Surround, Dolby TrueHD
Audio amplifier	Yes
Surround modes quantity	12
Apple docking compatibility	Not supported
Receiver type	Surround
Audio output channels	9.2 channels
Dynamic power per channel (4 Ohm)	255 W
Power output per channel (1KHz@6 Ohm)	200 W
Power output per channel (1KHz@8 Ohm)	140 W
Power output per channel (20-20KHz@8 Ohm)	- W
Supported video modes	1080p, 2160p
Supported radio bands	AM, FM
Preset stations quantity	40
Internet radio services supported	Pandora, Spotify, TuneIn
Audio formats supported	AAC, AIFF, DSD, FLAC, MP3, WAV, WMA
Headphone outputs	1
Headphone connectivity	3.5 mm
Number of HDMI outputs	2
Multichannel audio output type	Terminals
HDMI in	8
Digital audio optical in	3
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Card reader integrated	No
Cables included	AC

Weight and Dimensions

Depth	441 mm
Width	435 mm
Height	185 mm
Weight	18100 g
