1 STANDBY/ON
Switches the receiver between on and standby. Power
indicator lights when the receiver is on.
2 INPUT SELECTOR dial
Use to select an input source.
3 PHASE CONTROL indicator – Lights to indicate
Phase Control or Full Band Phase Control is selected.
ADVANCED MCACC indicator – Lights when one of
the Selecting MCACC presets is selected.
DIGITAL VIDEO SCALER indicator – Lights when
Resolution is set to a setting other than
PURE (for
example, when the video input signal is upscaled).
HDMI indicator – Blinks when connecting an HDMI-
equipped component; lights when the component is
connected.
4 Remote sensor
Receives the signals from the remote control.
5 Character display

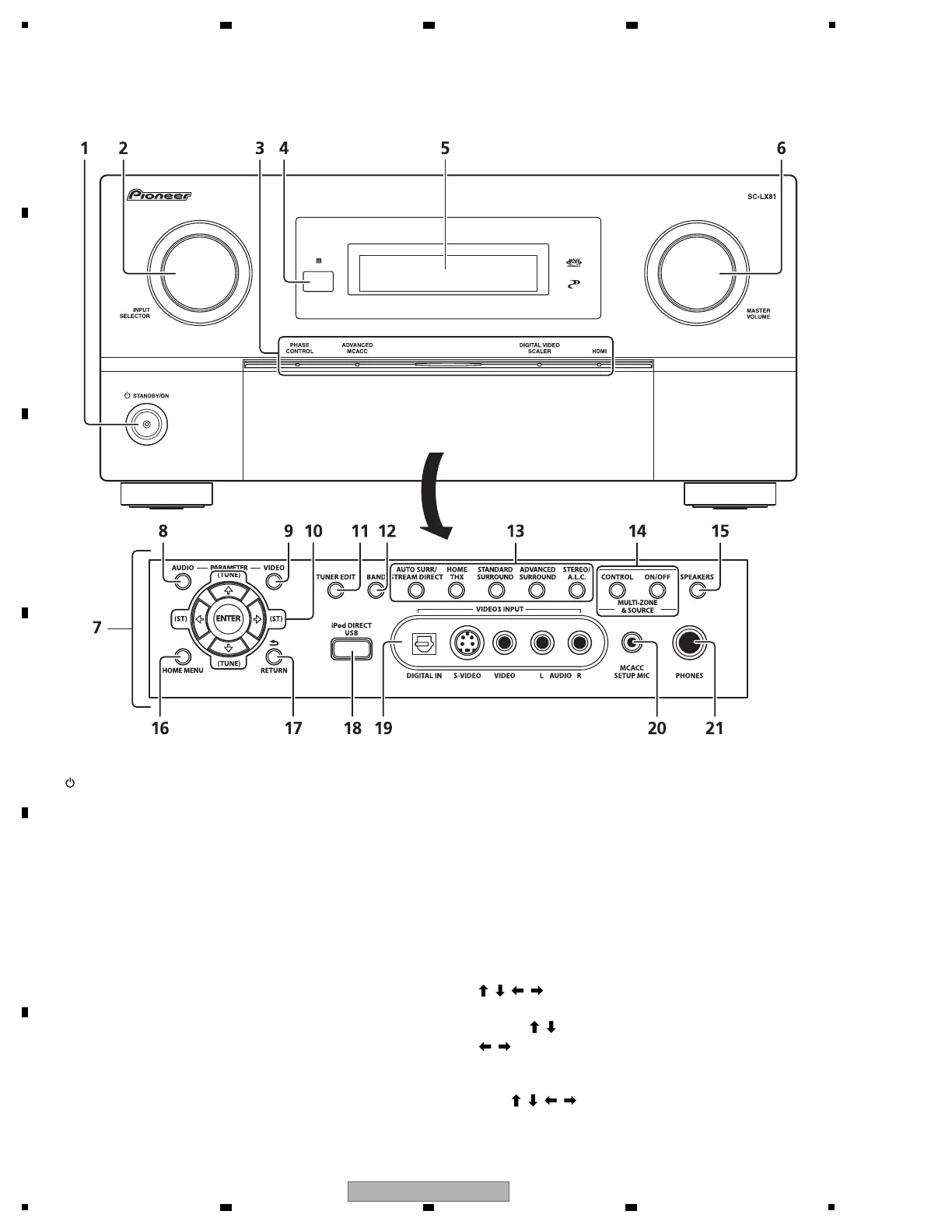

[1] Front Panel
6 MASTER VOLUME dial
7 Front panel controls
To access the front panel controls, push gently on the
lower third portion of the panel with your finger.
8 AUDIO PARAMETER
Use to access the Audio options.
9 VIDEO PARAMETER
Use to access the Video options.
10 / / / (TUNE/ST) /ENTER
Use the arrow buttons when setting up your HOME MENU.
Use
TUNE / to find radio frequencies and use
ST / to find preset stations.
11 TUNER EDIT
Use with / / / /ENTER to memorize and name
stations for recall.
To Next Page
