Pioneer SC-LX81 Service Manual

86
SC-LX81
1
2 3 4
A
B
C
D
E
F
1
2 3 4

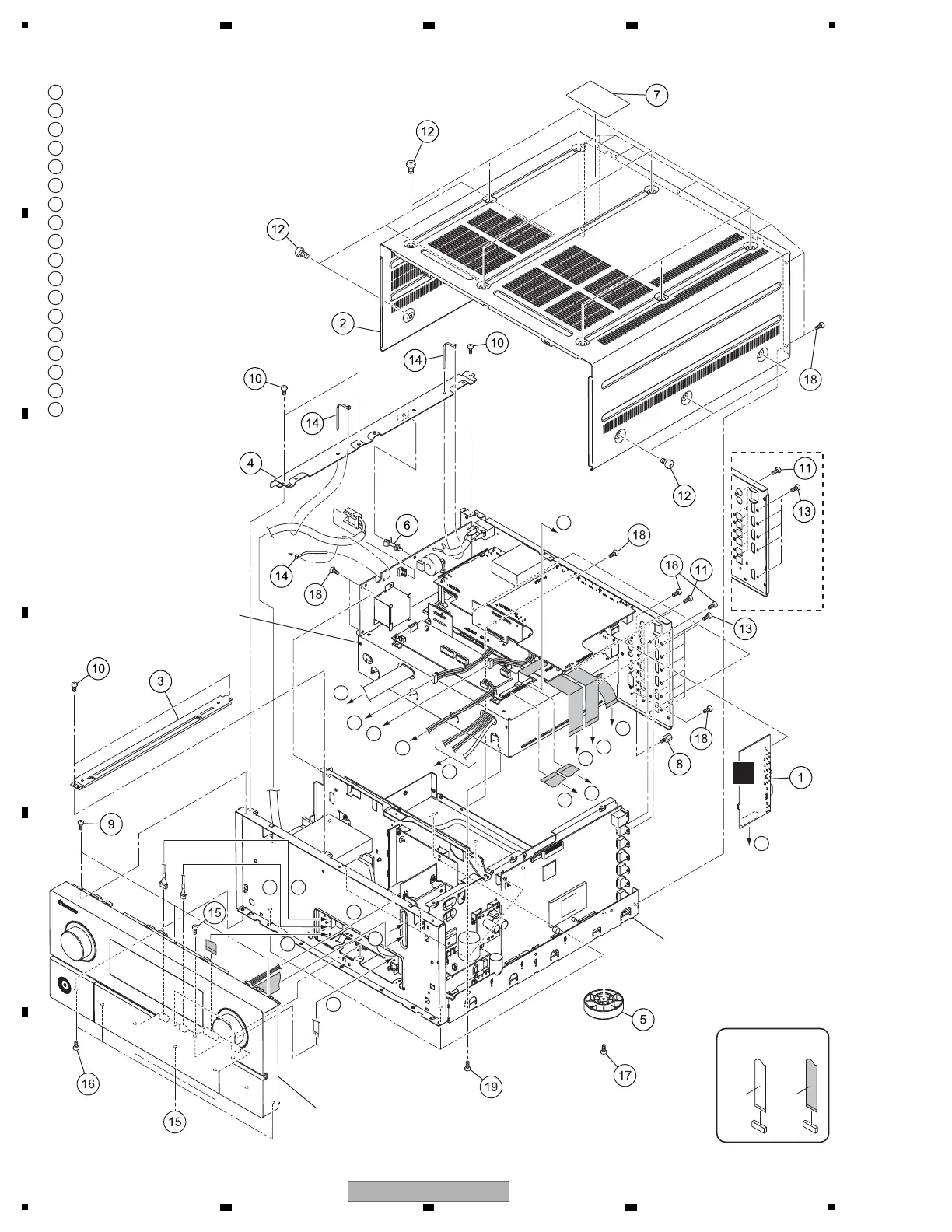

9.2 EXTERIOR SECTION
CONTACT SIDE
NON-CONTACT
SIDE
Refer to
"9.3 CHASSIS SECTION".
Refer to
"9.4 REAR SECTION".
Refer to
"9.5 FRONT PANEL SECTION".
SC-LX71/HYSXJ5
only
D
: D-MOTHER CN2001
: B-REG CN7303
: REG CN7502 (RED)
: REG CN7602 (BLUE)
: ICE REG CN7302 (RED)
: ICE REG Refer to "9.4 REAR SECTION"
: INTERFACE CN7031
: INTERFACE CN7032
: INTERFACE CN7041
: INTERFACE CN7042
: INTERFACE CN7051
: INTERFACE CN7021
: D-MOTHER CN2401
: HDMI NETWORK CN801
: INTERFACE CN7062
: REG CN7621
: D-MOTHER CN2002
: INTERFACE JH7061
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
A
A
B
F
E
C
D
G
H
I
J
K
L
NM
O
R
Q
P
