1.3 NOTES ON ASSEMBLING

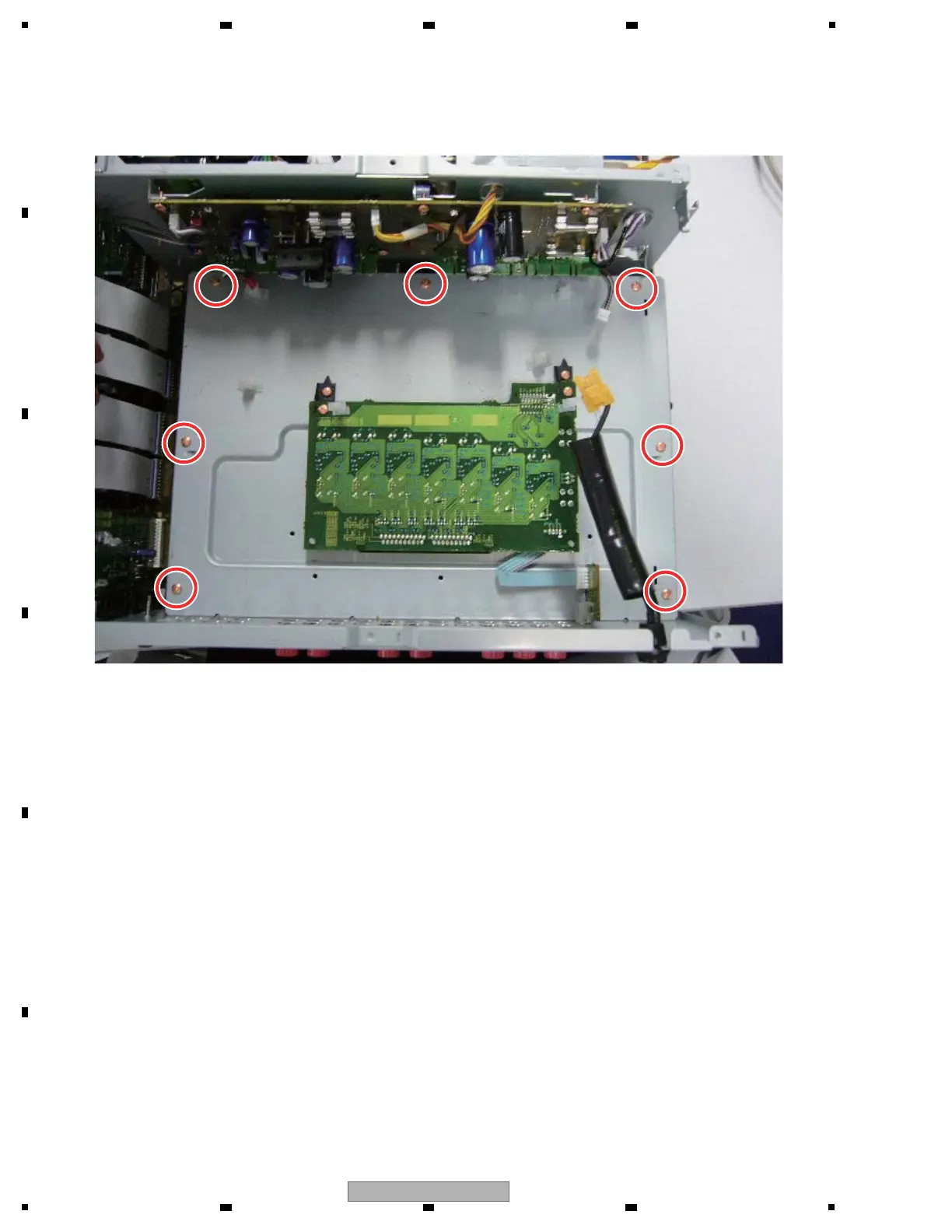

When assembling the ICE amplifier block, please note the following points of screws to prevent from short circuit.
The following 7 points of screws must always be used AMZ30P060FTC
