36

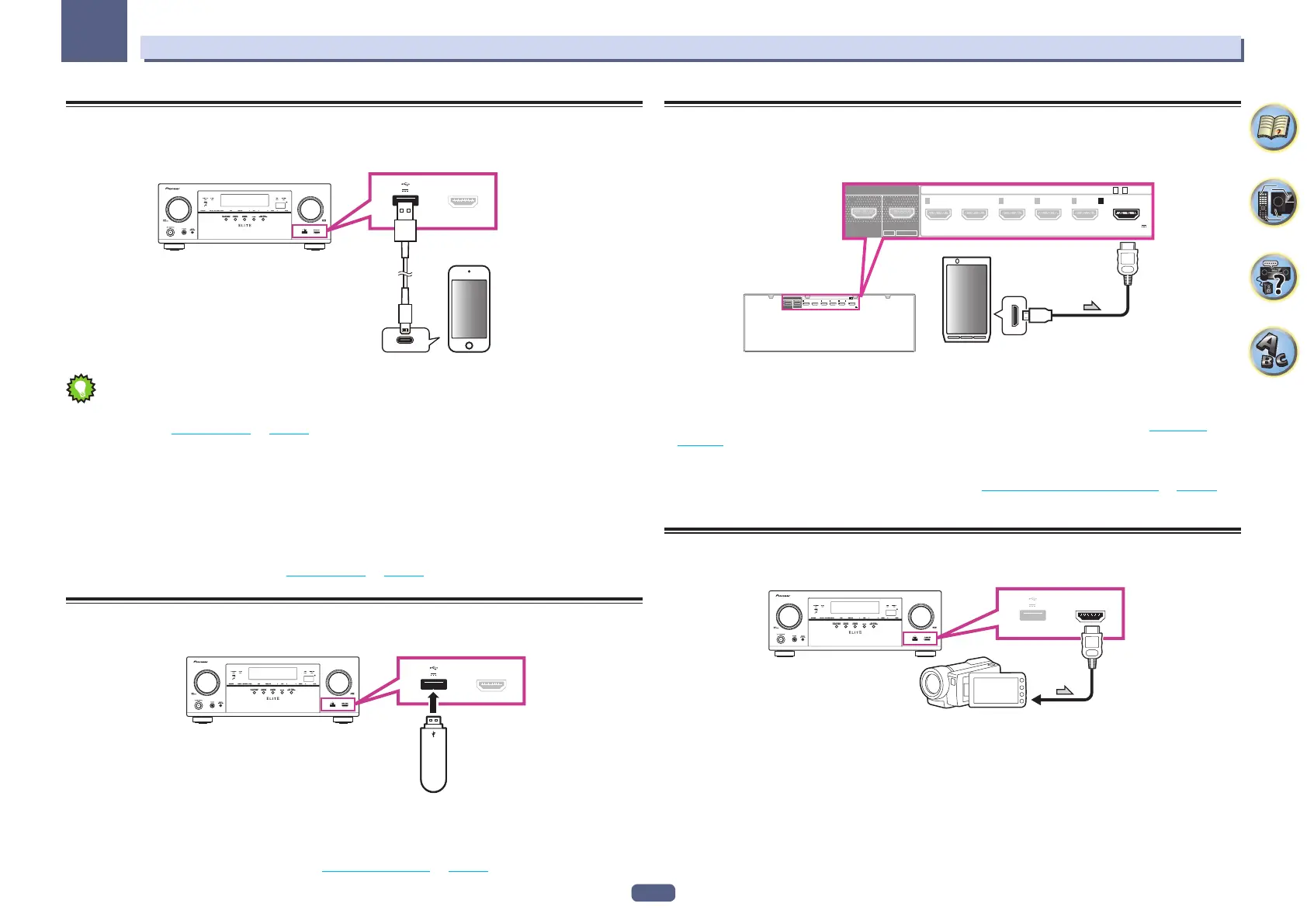

Connecting your equipment (In case of VSX-90)
03
Connecting an iPod
This receiver has a dedicated iPod terminal that will allow you to control playback of audio content from your iPod
using the controls of this receiver.
5V 1 A
HDMI 5 INPUT
iPod/iPhone
USB cable included with the iPod
Tip
! An iPod/iPhone can be connected to the receiver. For details on supported models and versions of the respec-
tive products, see Playing an iPod on page 67 .
% Switch the receiver into standby, and then use the iPod cable to connect your iPod to the
iPod/iPhone terminal on the front panel of this receiver.
! For the cable connection, also refer to the operating instructions for your iPod.
! When connecting an iPhone to this unit, keep the iPhone at least 20 cm (0.66 ft) away from this unit. If the
iPhone is kept closer to this unit and a telephone call is received by the iPhone, noise may be output from this
device.
! iPod recharging occurs whenever an iPod is connected to this unit. (Recharging is enabled only when the
unit’s power is turned on.)
! For instructions on playing the iPod, see Playing an iPod on page 67 .
Connecting a USB device
It is possible to play audio and photo files by connecting USB devices to this receiver.
5V 1 A
HDMI 5 INPUT
USB mass
storage device
% Switch the receiver into standby then connect your USB device to the USB terminal on the
front panel of this receiver.
! This receiver does not support a USB hub.
! For instructions on playing the USB device, see Playing a USB device on page 68 .
Connecting an MHL-compatible device
An MHL-compatible mobile device can be connected to enjoy 3D/Full-HD videos, high quality multi-channel
audio, and photos etc., with charge the battery on the receiver. Use the MHL cable to connect the device.
/MHLBD
6
16-
4321
(
OUTPUT 5
V
0.9 A MAX
)
SELECTABLE
ARC CONTROL
(
DVD
)(
SAT/CBL
)
HDMI IN
HDMI OUT
MAIN
HDZONE/MAIN
12
ASSIGNABLE
1
/MHLBD
6
16-
4321
(
OUTPUT 5
V
0.9 A MAX
)
SELECTABLE
ARC CONTROL
(
DVD
)(
SAT/CBL
)
HDMI IN
HDMI OUT
MAIN
HDZONE/MAIN
12
ASSIGNABLE
MHL enabled
device
MHL cable
% Switch the receiver into standby then use the MHL cable to connect your MHL enabled
device to the MHL terminal on the rear panel of this receiver.
! To automatically switch to the MHL input when an MHL-compatible device is connected, see MHL Setup on
page 112 .
! The MHL-compatible device is recharged whenever it is connected to this unit. (Recharging is enabled only
when the unit’s power is turned on.)
! For instructions on playing the MHL-compatible device, see Playing an MHL-compatible device on page 69 .
! Do not place the MHL device on this unit which has the power turned on.
Connecting an HDMI-equipped component to the front panel
input
5V 1 A
HDMI 5 INPUT
Video camera (etc.)
To Next Page
