Connecting your equipment (In case of VSX-45)
04
Determining the speakers’ application
This unit permits you to build various surround systems, in accordance with the number of speakers you have.
! Be sure to connect speakers to the front left and right channels (L and R).
! If you have two subwoofers, the second subwoofer can be connected to the SUBWOOFER 2 terminal.
Connecting two subwoofers increases the bass sound to achieve more powerful sound reproduction. In this
case, the same sound is output from the two subwoofers.
Important
! The Speaker System setting must be made if you use any of the connections shown below other than [A] (see
Speaker system setting on page 110 ).
! Speaker play can be switched on or off by pressing the SP-A/B button (audio may not be output from all con-
nected speakers).

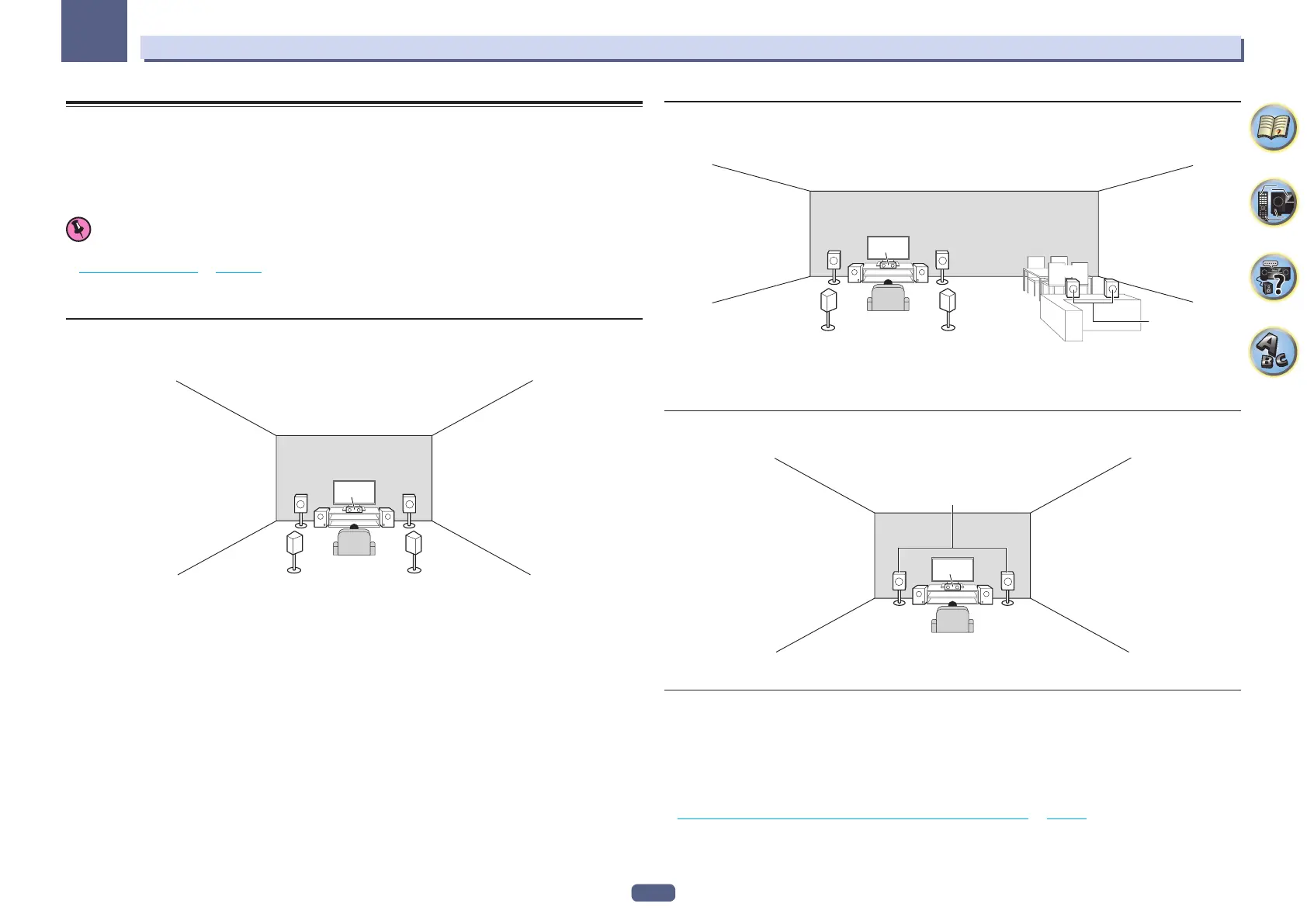

[A] 5.2 channel surround system connection
*Default setting
! Speaker System setting: 5.2ch
SRSL
R
SW2
C
SW1
L
The 5.2 channel surround system is the most commonly-used in home theaters.
[B] Speaker B connection
! Speaker System setting: Speaker B
SRSL
RL
R
SW2
C
SW1
L
Speaker B
With these connections you can simultaneously enjoy 3.1-channel sound in the main zone with stereo playback
of the same sound on the B speakers. The same connections also allow for 5.1-channel surround sound in the
main zone when not using the B speakers.
[C] Front Bi-amping connection (High quality surround)
! Speaker System setting: Front Bi-Amp
R
SW2
C
SW1
L
Front Bi-Amp
Play the front speaker in high sound quality (bi-amp).
Other speaker connections
! Your favorite speaker connections can be selected even if you have fewer than 5.2 speakers (except front left/
right speakers).
! When not connecting a subwoofer, connect speakers with low frequency reproduction capabilities to the front
channel. (The subwoofer’s low frequency component is played from the front speakers, so the speakers could
be damaged.)
! After connecting, be sure to conduct the Full Auto MCACC (speaker environment setting) procedure. See
Automatically conducting optimum sound tuning (Full Auto MCACC) on page 61 .
