45
OPERATION
All Wheel Drive (AWD)

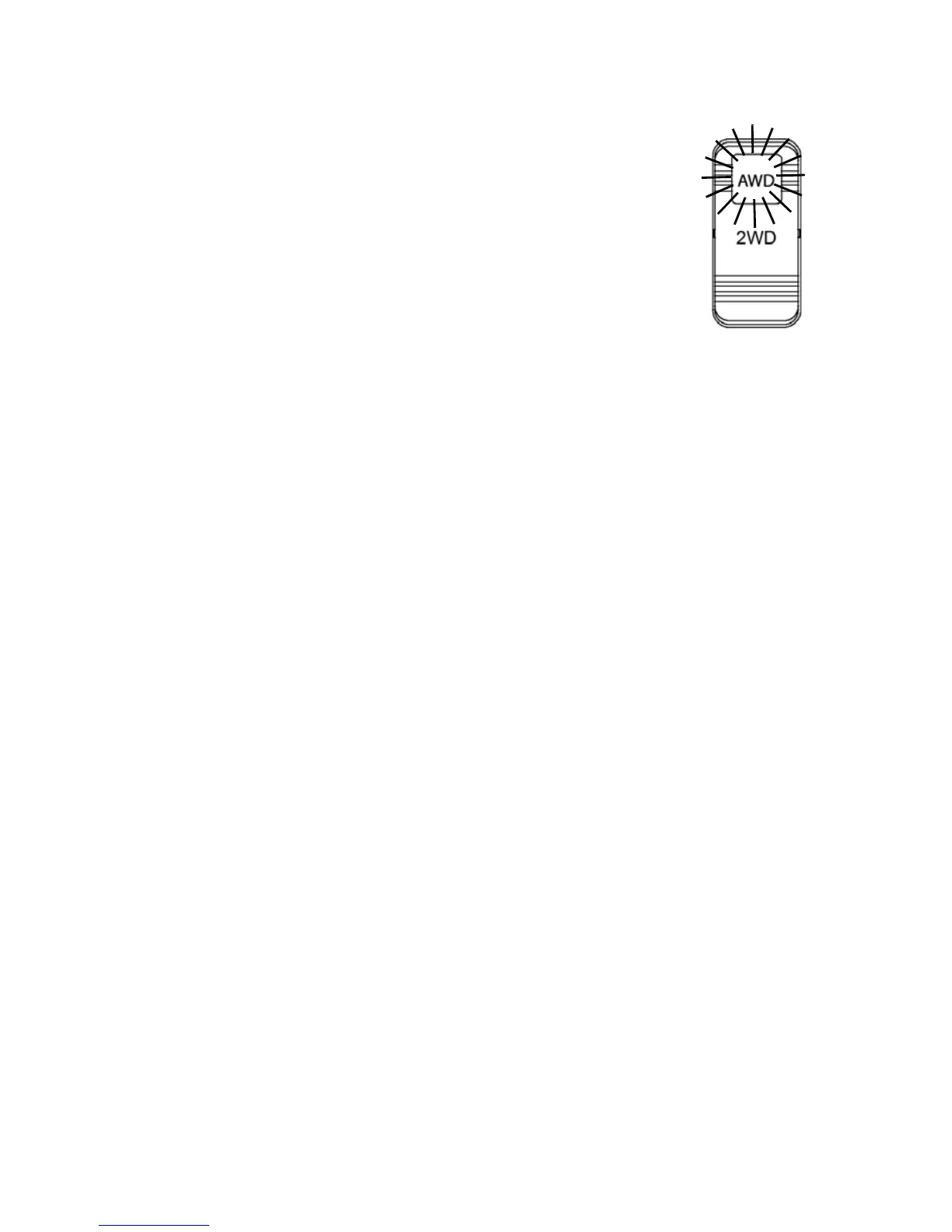

Press the top of the rocker switch to engage All
Wheel Drive (AWD). The illuminated amber AWD
switch indicates that the vehicle is in AWD.
When the AWD switch is on, the front gearcase
will automatically engage any time the rear wheels
lose traction. When the rear wheels regain traction,
the front gearcase will automatically disengage.
There is no limit to the length of time the vehicle
may remain in AWD.
Tip: The AWD switch may be turned on or off while the vehicle is moving.
Initially, the vehicle's electronic system will not enable the AWD until
the engine RPM is below 3100. Once enabled, the AWD remains
enabled until the AWD switch is turned off.
Engage the AWD before getting into conditions where front wheel drive
may be needed. If the rear wheels are spinning, release the throttle
before switching to AWD.
NOTICE: Switching to AWD while the rear wheels are spinning may cause
severe drive shaft and clutch damage. Always switch to AWD while
the rear wheels have traction or are at rest.
Disengaging AWD
Move the AWD switch to the center or bottom position to disengage
AWD.
If the switch is turned off while the front gearcase is moving, it will not
disengage until the rear wheels regain traction.
In some situations, the front gearcase may remain locked after turning
the AWD switch off. If this occurs, you may notice increased steering
effort and some vehicle speed restriction. Perform the following proce-
dure to unlock the front gearcase.
1. Stop the vehicle.
2. Operate in reverse for at least 10 feet (3 m).
3. Stop completely.
4. Shift into low gear and drive forward.
5. If the front gearcase remains locked after following these instruc-
tions, return the vehicle to your dealer for service.
