8.48
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.

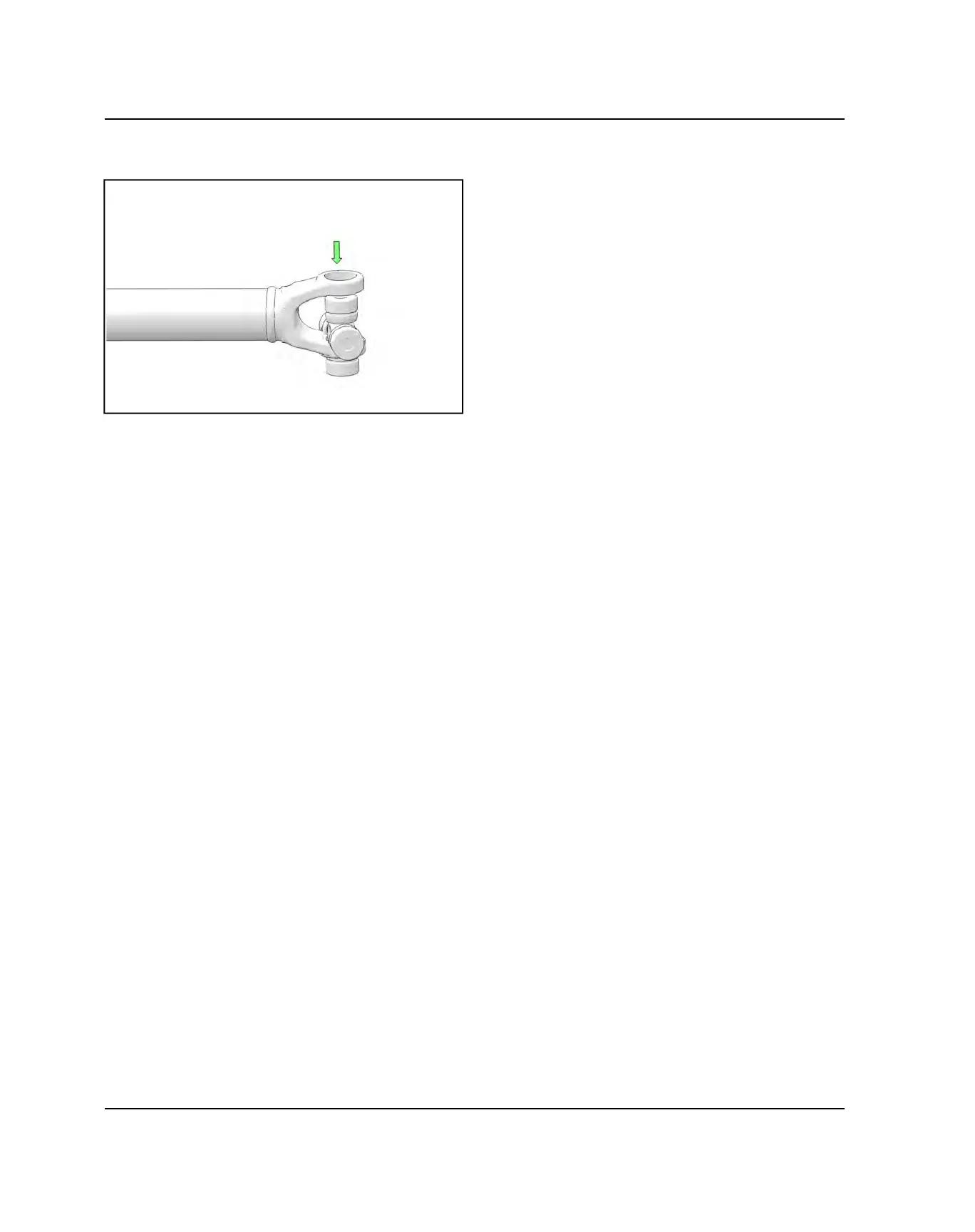

3. Support U-joint and press inner yoke down to
remove remaining bearing caps.
4. Force U-joint cross to one side and lift out of inner
yoke.
ASSEMBLY
1. Install new bearing caps in yoke by hand. Carefully
install U-joint cross. Tighten vise or use a press to
force bearing caps in.
2. Using a suitable arbor, fully seat bearing cap in one
side. Continually check for free movement of bearing
cross as bearing caps are assembled.
3. Install snap ring to contain bearing cap just installed.
Repeat procedure for other side.
4. Install outer yoke, aligning marks made before
disassembly.
5. Repeat Steps 1-3 to install bearing caps on outer
yoke.
6. Seat all bearing caps against snap rings.
7. When installation is complete, yokes must pivot
freely in all directions without binding. If the joint is
stiff or binding, tap the yoke lightly to center the joint
until it pivots freely in all directions.
FINAL DRIVE
