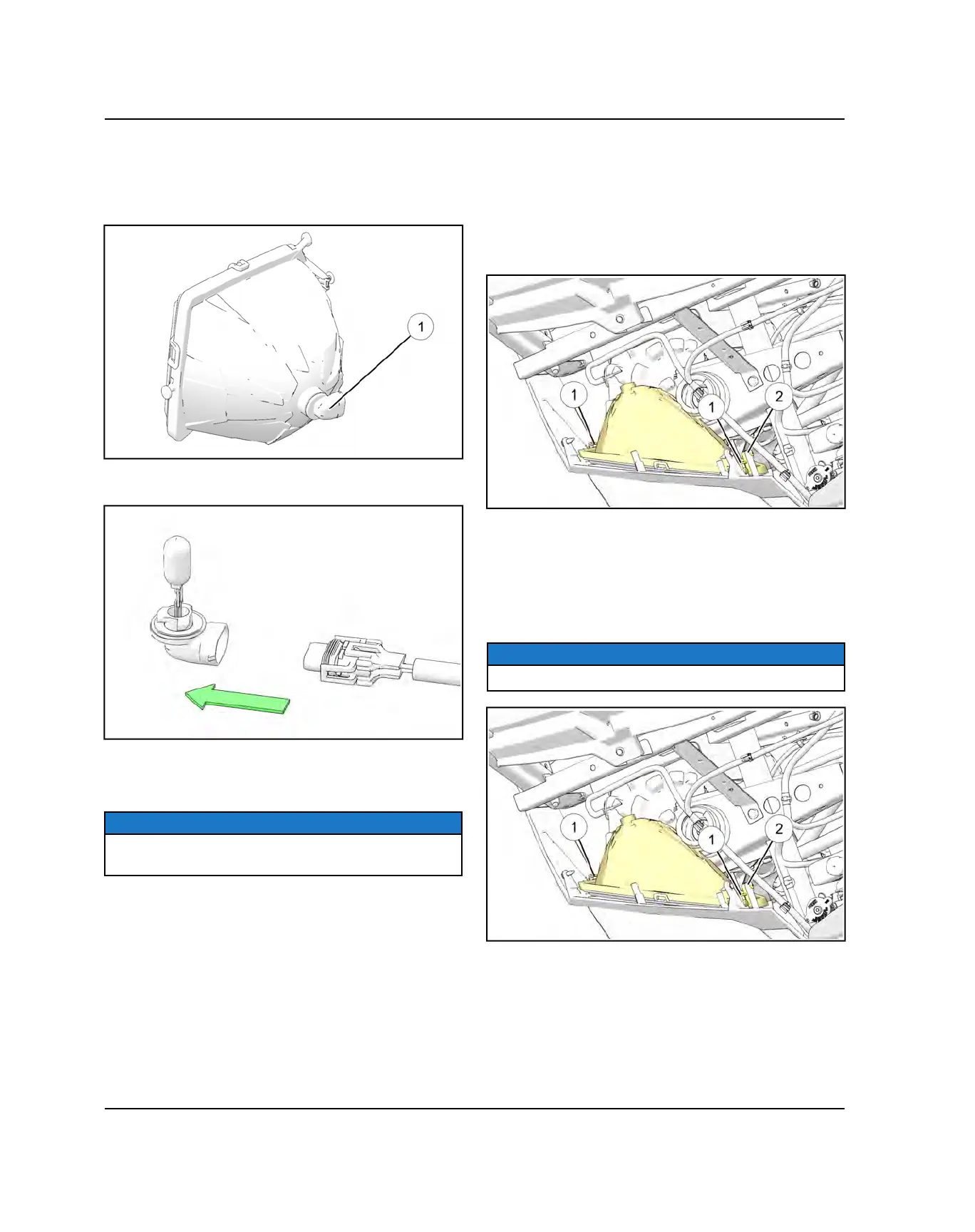

HEADLIGHT BULB REPLACEMENT
1. Open the hood.
2. Locate the bulb on the back side of headlight
q
.
3. Turn the bulb counterclockwise to remove it.
4. Unplug the headlight bulb from the wiring harness.
Be sure to pull on the connector, not on the wiring.
5. Install the wire harness into the new headlight bulb.
6. Install the bulb into the housing and rotate it
clockwise 90° to lock it in place.
NOTICE
Make sure the tab on the bulb locates properly in the
housing.
HEADLIGHT HOUSING REMOVAL
1. Open the hood.
2. Remove the bulb from the headlight housing (see
“Headlight Bulb Replacement”).
3. Remove the O-rings
q
from each side of the
headlight housing. Remove the adjustment screw
w
and pull the headlight from the brackets.
HEADLIGHT HOUSING INSTALLATION
1. Install the headlight housing by pressing the
headlight tabs back into the brackets.
2. Secure the headlight housing with the rubber O-rings
on each side
q
. Install the adjustment screw
w
.
NOTICE
Be sure to twist the O-rings upon installation.
3. Reinstall the bulb into the housing and rotate it
clockwise 90° to lock it in place.
4. Close the hood and adjust headlights using the
“Headlight Adjustment” procedure.
