FEATURES AND CONTROLS
Main Power Connector
NOTICE: Damage to electrical connections and components will occur if they
are unplugged before the main power connector is disconnected.
Always disconnect the main power connector before servicing or
unplugging any electrical components.
When disconnected, the
main power connector dis-
connects the battery pack
from all electrical compo-
nents, with the exception of
the contactor. After servic-
ing the vehicle, the main
power connector should be
the last connection to be
made.
The main power connector
is located under the seat on
the driver’s side of the con-
troller tray, adjacent to the
main line contactor. To dis-
connect, unplug the connec-
tor.
To disconnect the battery
pack from the vehicle com-
pletely, disconnect the main
power connector, then
remove the B+ wire from
the battery terminal.
WARNING! Insulate any tools
used within the battery area to
prevent sparks or battery
explosion caused by shorting
the battery terminals or wiring.
Remove the batteries, or cover
the exposed terminals with an
insulating material.

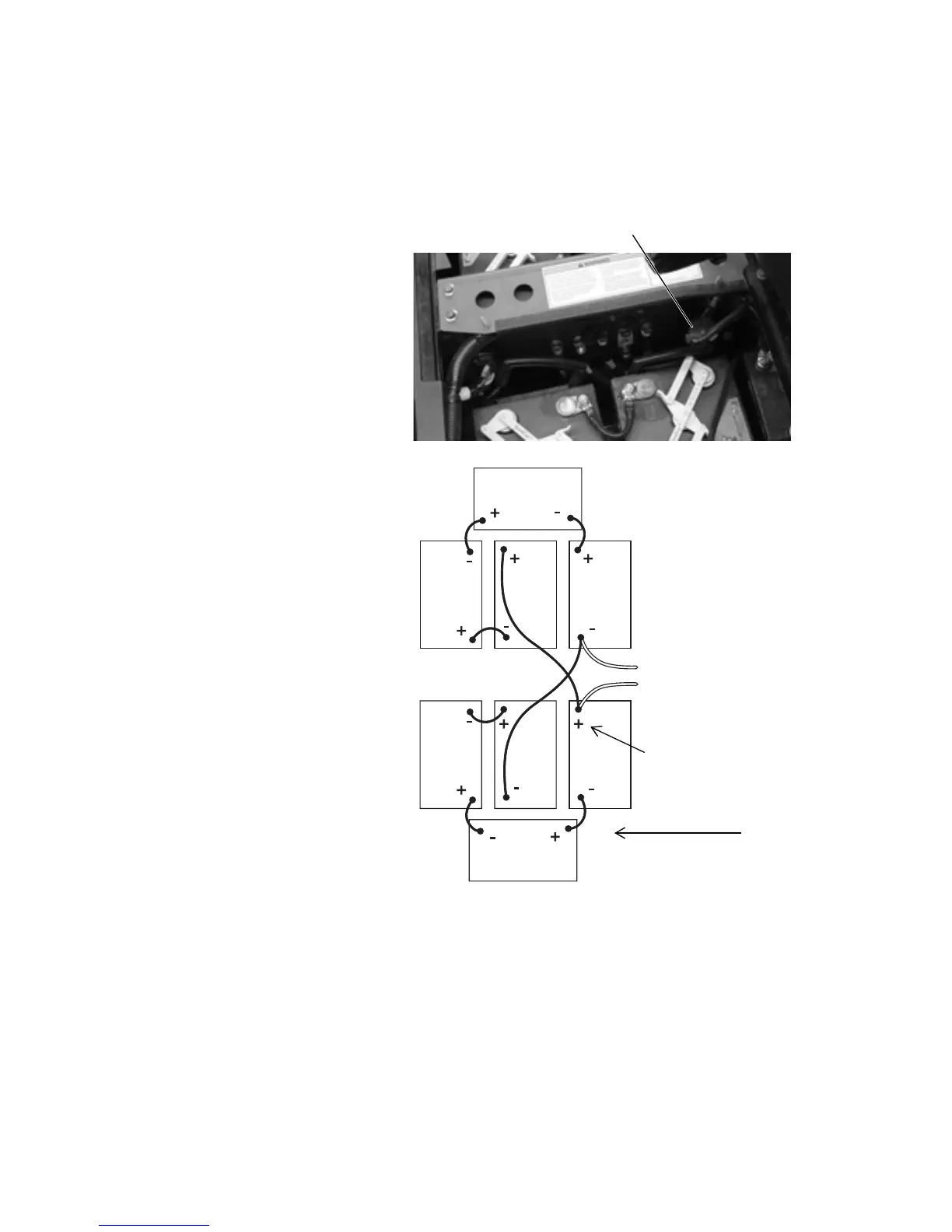

Battery Installation
and Wire Lead
Connection
to contactor +
Front of vehicle
to controller -
Main Power Connector
B+ wire
