ELECTRONIC FUEL INJECTION
4

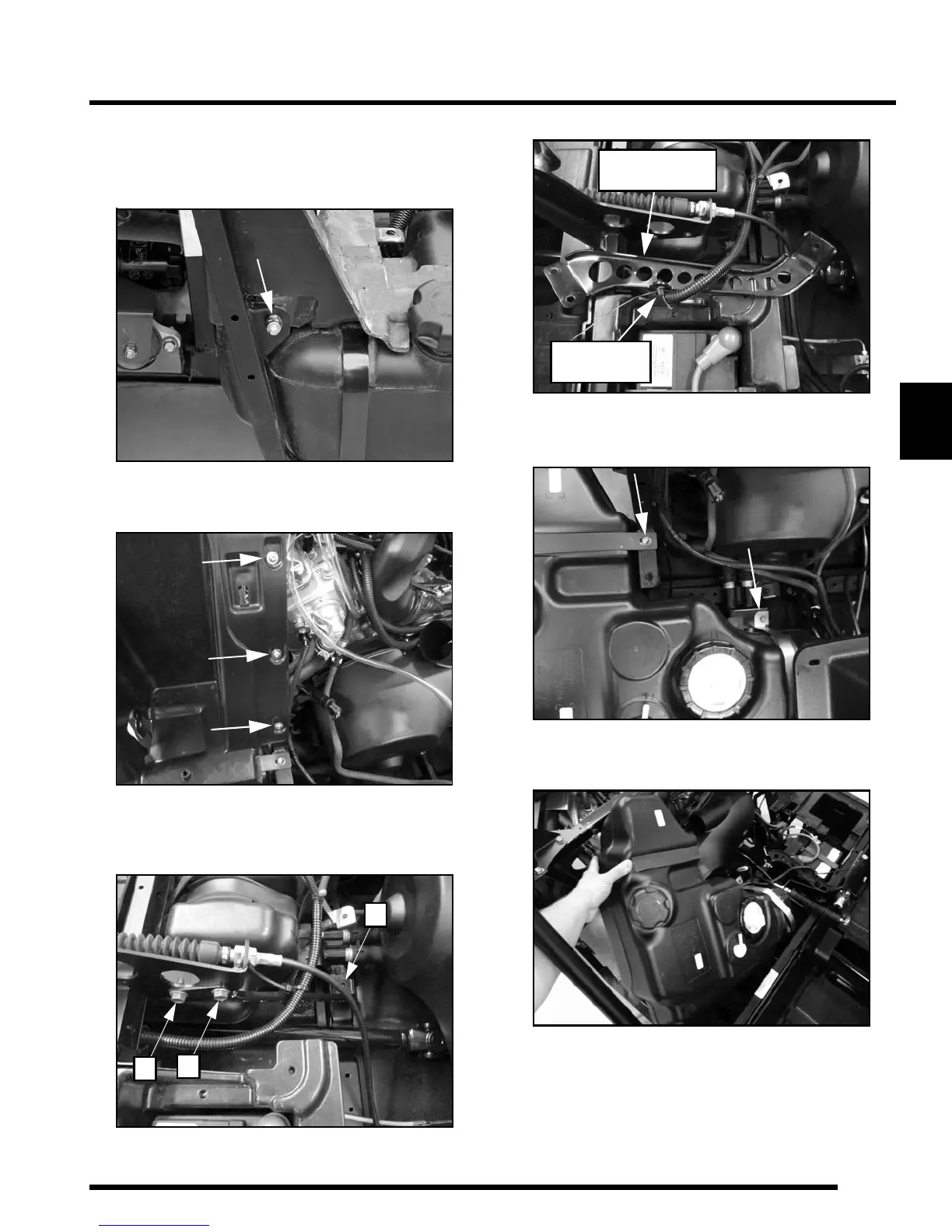

9. Remove the lower bolt retaining the seat belt mechanism
near the rear RH portion of the fuel tank. Once removed,
place the mechanism in the rear cargo box to keep it out of
the way.
10. Remove the (3) Torx fasteners from the rear RH fender well
and remove the fender well from the vehicle (see chapter 5).
11. Remove the (3) shift lever support bracket bolts and place
the bracket out of the way of the fuel tank, but do not
remove or cut the plastic wire harness retainer.
12. Remove the (2) tank bracket fasteners that retain the fuel
tank in the chassis. Swing the tank brackets clear of the fuel
tank for removal.
13. Lift the rear of the fuel tank up first and carefully pull it up
and out from the vehicle.
1
2
3
Do not cut
plastic strap
Set bracket by
shift lever
