STEERING
STEERING INSPECTION
The steering components should be checked periodically
for loose fasteners, worn tie rod ends, ball joints and
damage.
Replace any worn or damaged steering components.
Steering should move freely through the entire range of
travel without binding. Check routing of all cables, hoses,
and wiring to be sure the steering mechanism is not
restricted or limited.
NOTICE
Check front end alignment whenever steering
components are replaced.
WARNING
Due to the critical nature of the procedures outlined in
this chapter, Polaris recommends steering component
repair and adjustment be performed by an authorized
Polaris MSD certified technician.

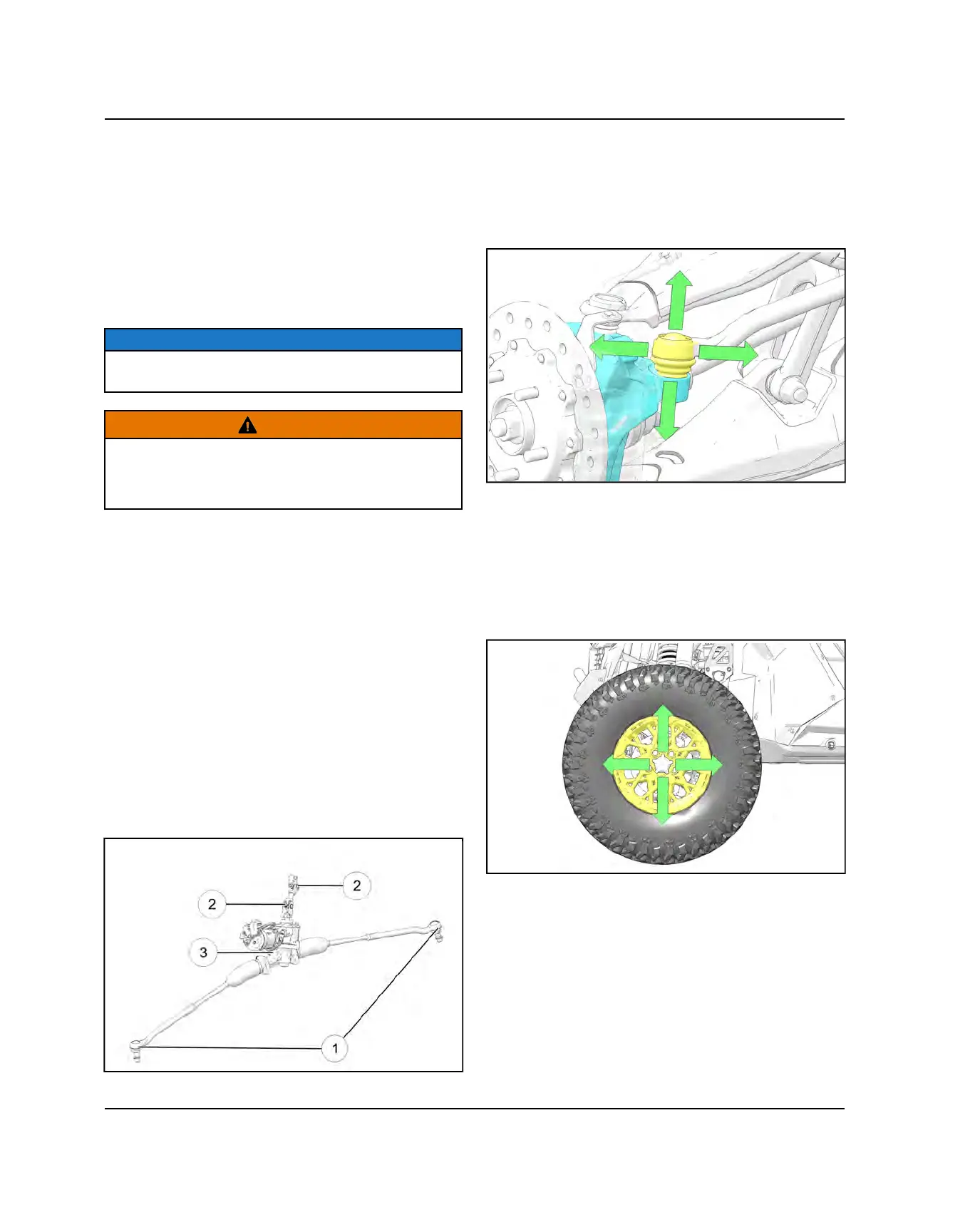

STEERING WHEEL FREE-PLAY
Check steering wheel for specified free-play and
operation
1. Position the vehicle on level ground.
2. Turn ignition ON to activate EPS system.
3. Lightly turn the steering wheel left and right.
4. There should be about 0.8-1.0″ (20-25 mm) of free-
play.
5. If there is excessive free-play or the steering feels
rough, inspect the following components.
6. Tie Rod Ends
q
.
7. Steering Shaft U-Joints
w
.
8. Steering Gearbox
e
.
TIE ROD END / WHEEL HUB
INSPECTION
• To check for play in the tie rod end, grasp the steering
tie rod, pull in all directions feeling for movement.
• Replace any worn steering components. Steering
should move freely through entire range of travel
without binding.
• Elevate front end of machine so front wheels are off
the ground. Check for any looseness in front wheel/
hub assembly by grasping the tire firmly at top and
bottom first, and then at front and rear. Try to move the
wheel and hub by pushing inward and pulling outward.
• If abnormal movement is detected, inspect the hub and
wheel assembly to determine the cause (loose wheel
nuts or loose front hub nut).
• Refer to Front Bearing Carrier Inspection / Removal
and Rear Bearing Carrier Inspection / Removal for
wheel bearing service procedures.
MAINTENANCE
