3. Install prop shaft bracket into place and torque
fasteners to specification.
TORQUE
Prop Shaft Mounting Bracket Fasteners:
15 ft-lbs (20 Nm)
4. Install front, middle, and rear skid plates. Torque
fasteners to specification.
TORQUE
Skid Plate Fasteners:
7 ft-lbs (10 Nm)
5. Install prop shaft through the front of vehicle.
6. Connect prop shaft slip yoke to the transmission
output shaft. On 4-seat vehicles, connect slip yoke to
intermediate output shaft.
NOTICE
The slip yoke on 4-seat vehicles has a skip-tooth. Align
skip tooth with the intermediate shaft to install.

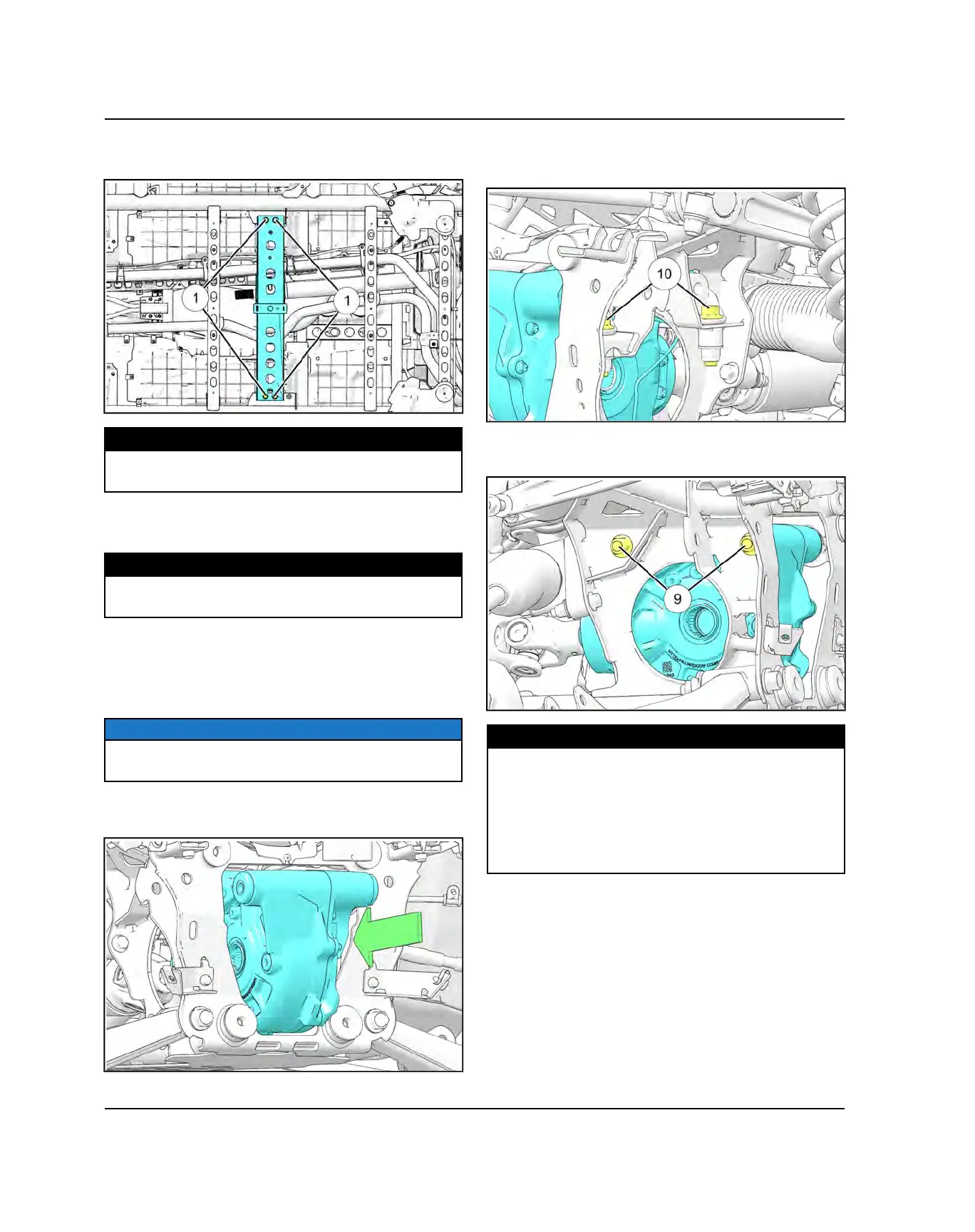

7. Install front gearcase through the opening in front of
the frame. Connect vent line.
8. Install half shaft onto front gearcase input shaft.
9. Leave vertical bolts loosely installed.
10.Install two front gearcase isolator fasteners. Torque
fasteners to specification.
TORQUE
Front Gearcase Torque Sequence:
a. Install vertical bolts on drivers side and torque
nuts until 1-2mm gap
b. Torque Gearcase Isolator bolts: 55 ft-lbs (75
Nm) + 180°
c. Torque vertical bolts: 81 ft-lbs (110 Nm)
11. Install NEW front prop shaft roll pin.
12.Install two front gearcase electrical harnesses.
