3.3.5 PF-1 Flashing Light
1). Decide the installation position of the flashing light. The flashing light has to be installed near the gate and easy
to be seen by users and passersby. The flashing light can be installed horizontally or vertically. See Figure 3.3.5 (1).
2). Unscrew the four screws on the light base and separate the base with the bottom as shown in Figure 3.3.5 (2).
3.) Connect the wires and penetrate the wires into the hole of the base. See Figure 3.3.5 (3).
4.) Drill the holes in the wall and fix the bottom to the wall by three screws. See Figure 3.3.5 (4).
3.3.4 PPB-1 Push Button
1). PPB-1 push button is installed indoors at the height of about 100cm, so that it could be used by most people.
2). Remove the round cover (A) by prizing it out with a screwdriver. See Figure 3.3.4 (1).
3). Unscrew the two screws beside the button.
4). Separate the upper shell with the bottom. See Figure 3.3.4 (2).
5). Breach the three holes at the bottom and mark the points by the holes as reference.
6). Drill the holes in the wall and fix the bottom to the wall by three screws. See Figure 3.3.4 (3).
7). Connect the electric wires to the terminals as shown in Figure 3.3.4 (4), and it’s not required to distinguish any
polarity. The terminals can be removed for connecting the wires easily.
8). Attach the upper shell to the bottom and screw them up by two screws and insert the round cover by pressing
it to attach to the whole unit.

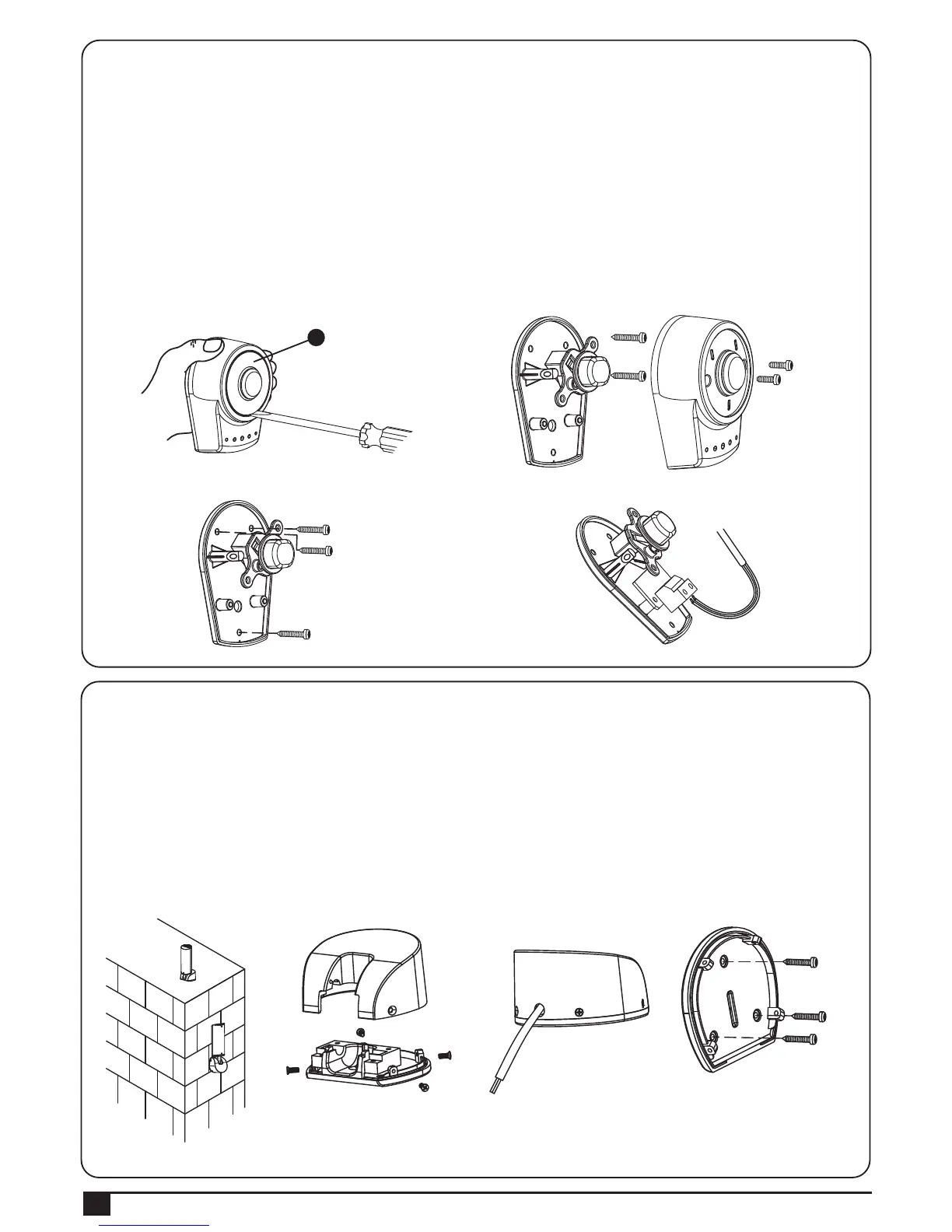

Figure 3.3.5 (1) Figure 3.3.5 (2) Figure 3.3.5 (3) Figure 3.3.5 (4)
