22 Assembling and Maintaining TRM 800-Series Treadmills

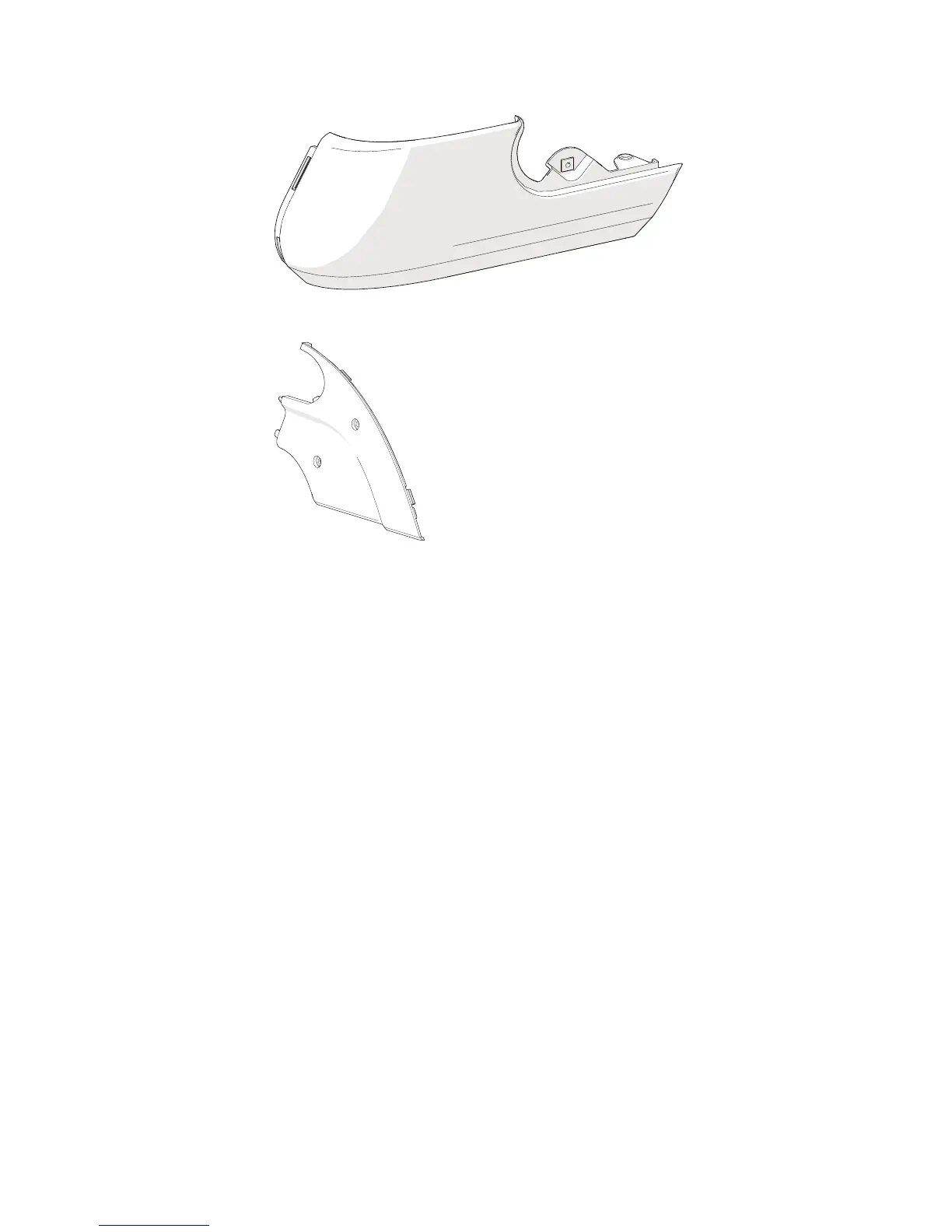

Corner cover (2)
Access cover (2)
Note: Retrieve the cables and other hardware shipped with
the console before you begin installation.
Unpacking the Cables
To connect the console to the base unit, you may need up to
four cables, as follows:
Ethernet (P80 only)
Television (P80 or PVS)
Power (P80 or PVS)
Base unit data
The first three of these cables are shipped with the console or
PVS. The base unit data cable is shipped inside the treadmill
fairing.
Note: The PVS does not include an Ethernet cable.
To unpack the cables:
1. Open the box containing the P80 console or PVS. Retrieve
the Ethernet, television, and power cables.
2. Remove any tapes that secure the cables, then unwind
them and remove any kinks. Gather the cables into a
bundle (referred to later in this manual as the console
cable assembly).
