38 Assembling and Maintaining TRM 800-Series Treadmills
Positioning the Console (P80)
Earlier in the installation, you threaded the necessary cables
through the frame of the base unit and out the passthrough
opening in the console mount. As you line up the back plate
on the console with the console mount, you must make sure
that the console cable assembly passes correctly through the
openings in both components.
Important: Before you begin the following procedure, remove the
rear cover from the control console. To remove the cover, use your
fingernails to pry the lower edge loose, then swing the cover up
and out as shown in the following illustration.

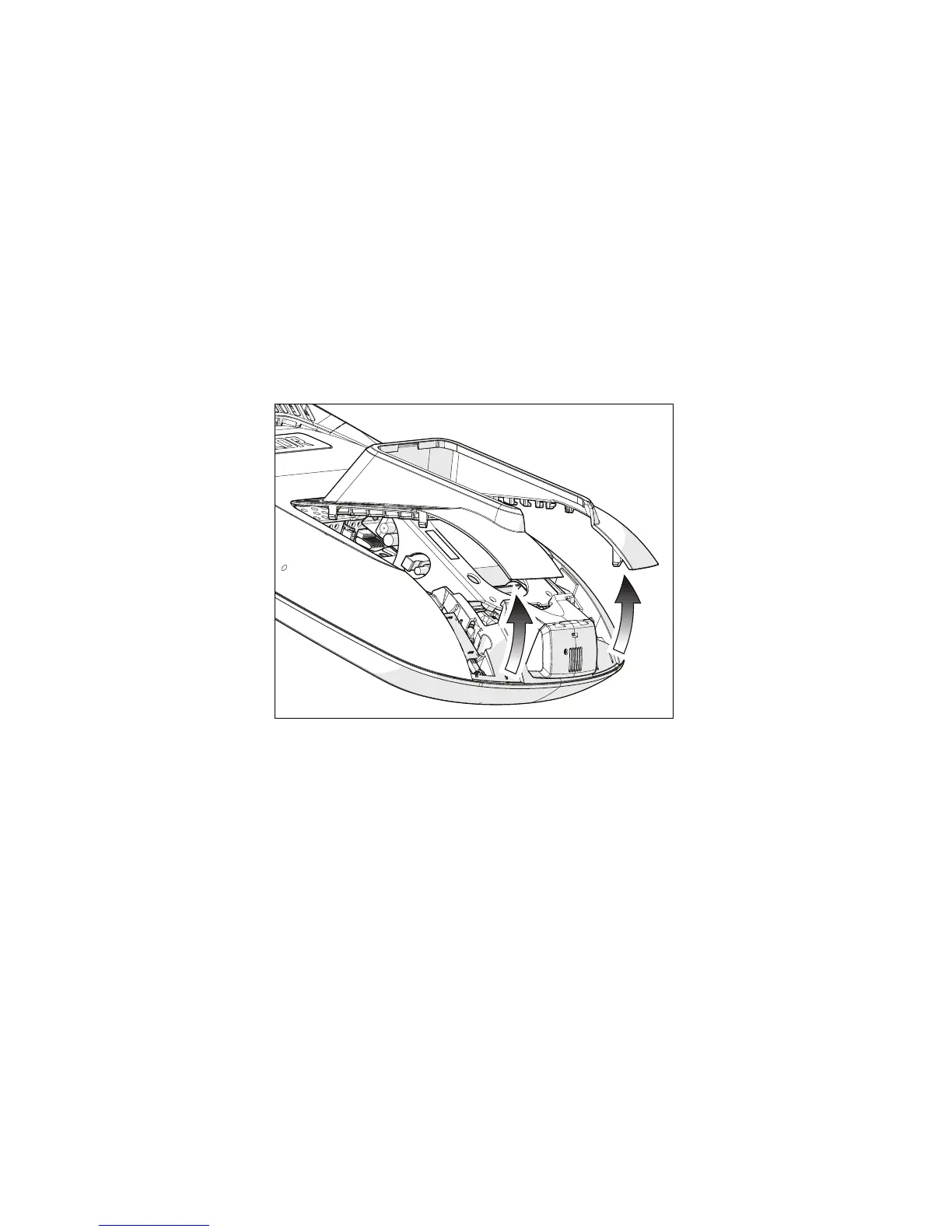

Figure 20: Removing the access cover from the P80 console
To position the console:
1. Make sure that as much of each cable as possible passes
through the opening in the middle of the console mount
on the base unit.
2. Place the console over the console mount.
3. Rest the console on the console mount so that the notch
on the bottom of the console’s back plate rests on the
rectangular hook at the bottom of the console mount, as
shown in the following figure.
4. Tilt the console forward until it stops. Use one hand to
steady the console in this position, or ask your assistant
to do so.
