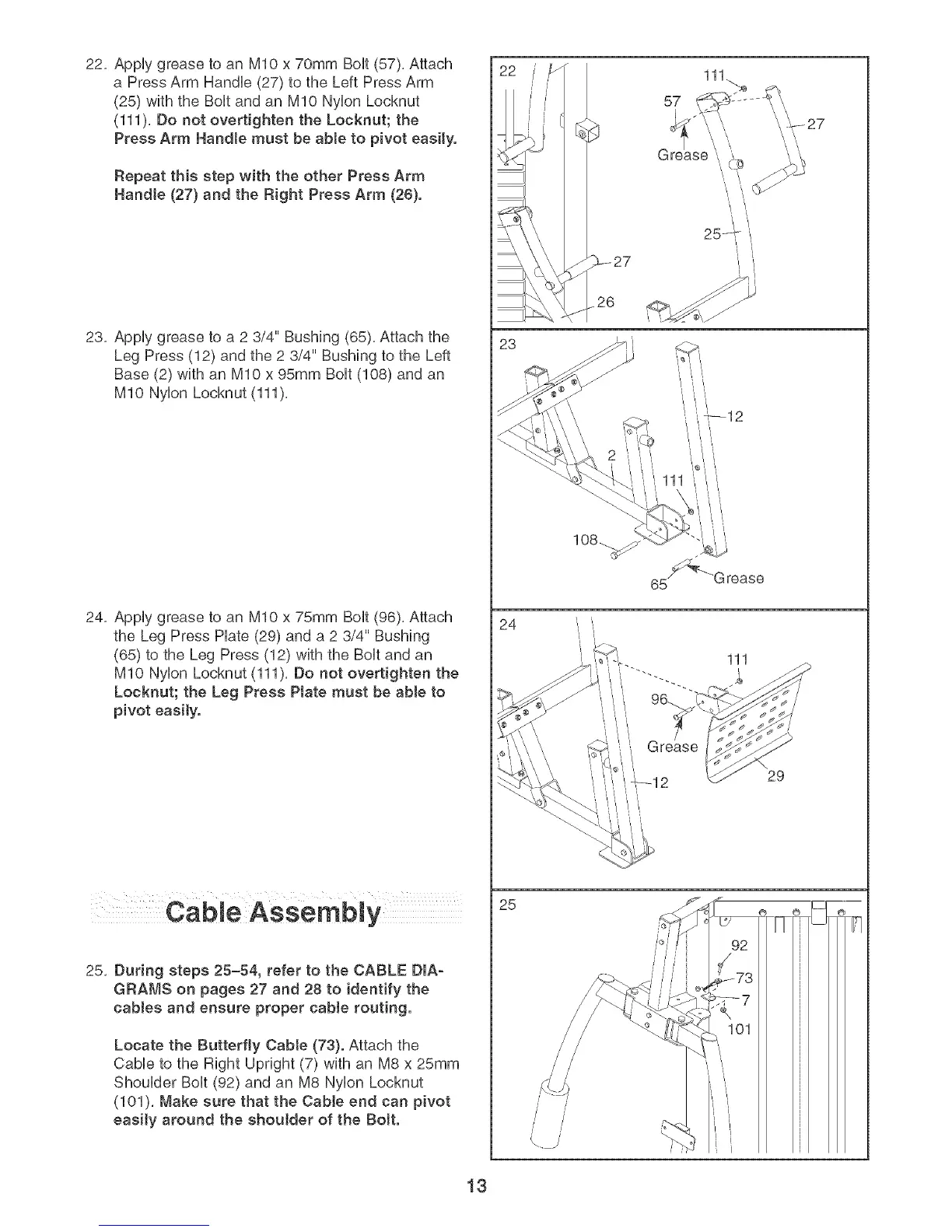

22, Apply grease to an M10 x 70mm Bolt (57), Attach
a Press Arm Handle (27) to the Left Press Arm
(25) with the Bolt and an M10 Nylon Locknut
(111), Do not overtighten the Locknut; the
Press Arm Handle must be able to pivot easily.
Repeat this step with the other Press Arm
Handle (27} and the Right Press Arm (26}.
23, AppUygrease to a 2 3/4" Bushing (65), Attach the
Leg Press (12) and the 2 3/4" Bushing to the Left
Base (2) with an M10 x 95mm BoUt(108) and an
M10 NyUonLocknut (111),
24, Apply grease to an M10 x 75mm Bolt (96), Attach
the Leg Press Hate (29) and a 2 3/4" Bushing
(65) to the Leg Press (12) with the BoUtand an
M10 Nylon Locknut (111), Do not overtighten the
Locknut; the Leg Press Plate must be able to
pivot easily.
25, During steps 25=54, refer to the CABLE DIA-
GRAMS on pages 27 and 28 to identify the
cables and ensure proper cable routing.
Locate the Butterfly Cable (73}. Attach the
CaMe to the Right Upright (7) with an M8 x 25mm
ShouUder BoUt(92) and an M8 NyUonLocknut
(101), Make sure that the Cable end can pivot
easily around the shoutder of the Bolt.
24
25
111.
26
111
\
29
13
