CABLE DIAGRAMS

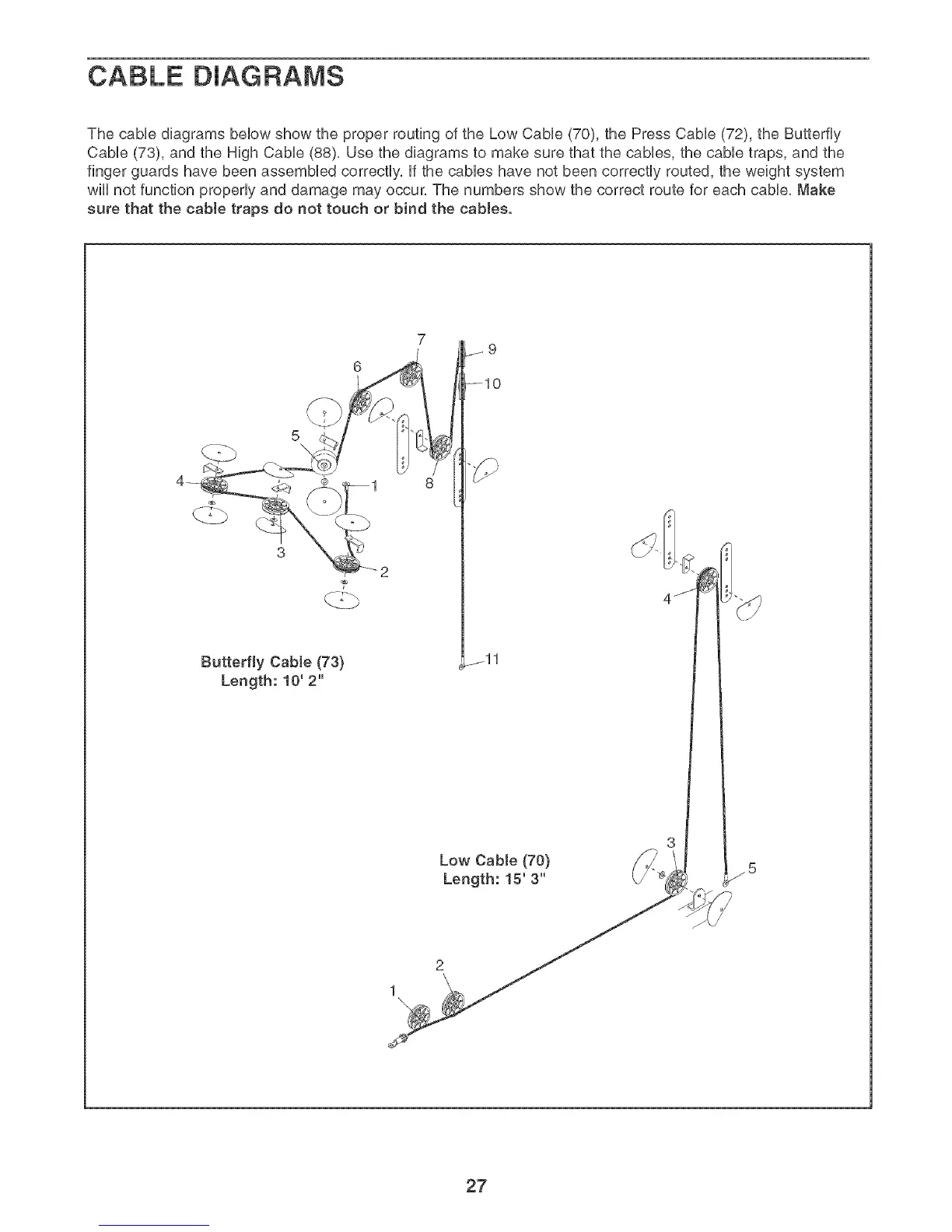

The came diagrams beUowshow the proper routing of the Low CaMe (70), the Press CaMe (72), the Butterfly
CaMe (73), and the High CaMe (88), Use the diagrams to make sure that the caMes, the came traps, and the
finger guards have been assemMed correctly, Ufthe caMes have not been correctly routed, the weight system
wHUnot function properly and damage may occur, The numbers show the correct route for each came, Make
sure that the cable traps do not touch or bind the cables.
Butterfly Cable (73}
Length: 10' 2"
fll
Low Cable (70}
Length: 15' 3"
2
1
\
27
