Pro-Form Fusion 6.0 LX User Manual

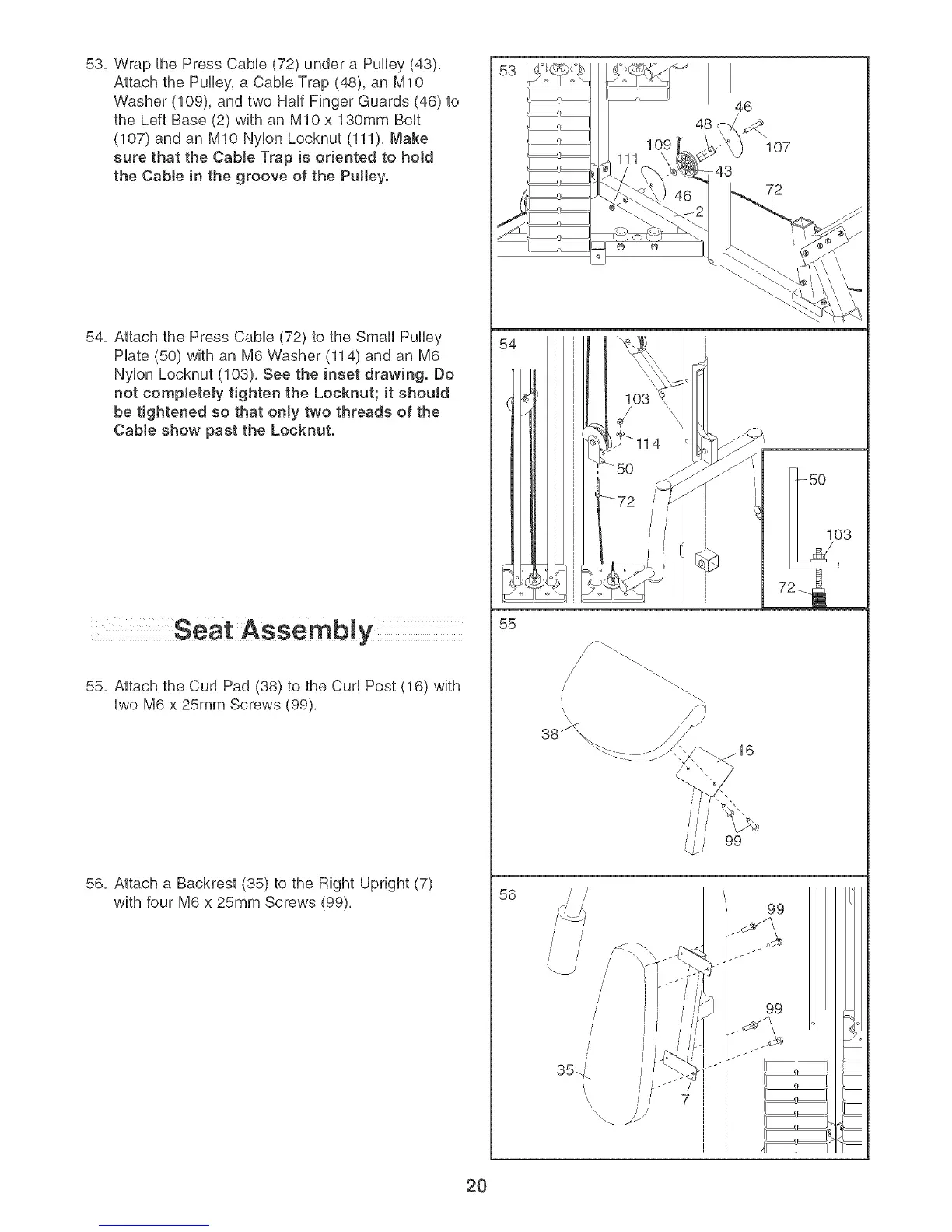

53, Wrap the Press CaMe (72) under a Pulley (43),
Attach the Pulley, a CaMe Trap (48), an MIO
Washer (10% and two Haft Finger Guards (46) to
the Left Base (2) with an MIO x 130mm BoUt
(107) and an MIO NyUonLocknut (111), Make
sure that the CabJe Trap is oriented to hold
the Cable in the groove of the Pulley.
54, Attach the Press CaMe (72) to the Small Pulley
Hate (50) with an M6 Washer (114) and an M6
NyUonLocknut (103), See the inset drawing. Do
not completely tighten the Locknut; it should
be tightened so that onJy two threads of the
Cable show past the Locknut.
55, Attach the CurUPad (38) to the CurUPost (16) with
two M6 x 25mm Screws (99),
56, Attach a Backrest (35) to the Right Upright (7)
with four M6 x 25mm Screws (99),
54
55
56
46
48
107
43
72
Q @
-5O
103
7;
/
//
//
/ /
/
/ ,
'--s
99
2O
