4 – Installation
Installing a Switch
59225-00 B 4-5
A
4.2.3
Connect the Workstation to the Switch
You can manage the switch using SANsurfer Switch Manager or the command
line interface through an Ethernet connection to the switch. Choose a switch
management method, then connect the management workstation to the switch in
one of the following ways:
Indirect Ethernet connection from the management workstation to the switch
RJ-45 Ethernet connector through an Ethernet switch or a hub. This requires
a 10/100 Base-T straight cable as shown in Figure 4-1.
Direct Ethernet connection from the management workstation to the switch
RJ-45 Ethernet connector. This requires a 10/100 Base-T cross-over cable
as shown in Figure 4-1.

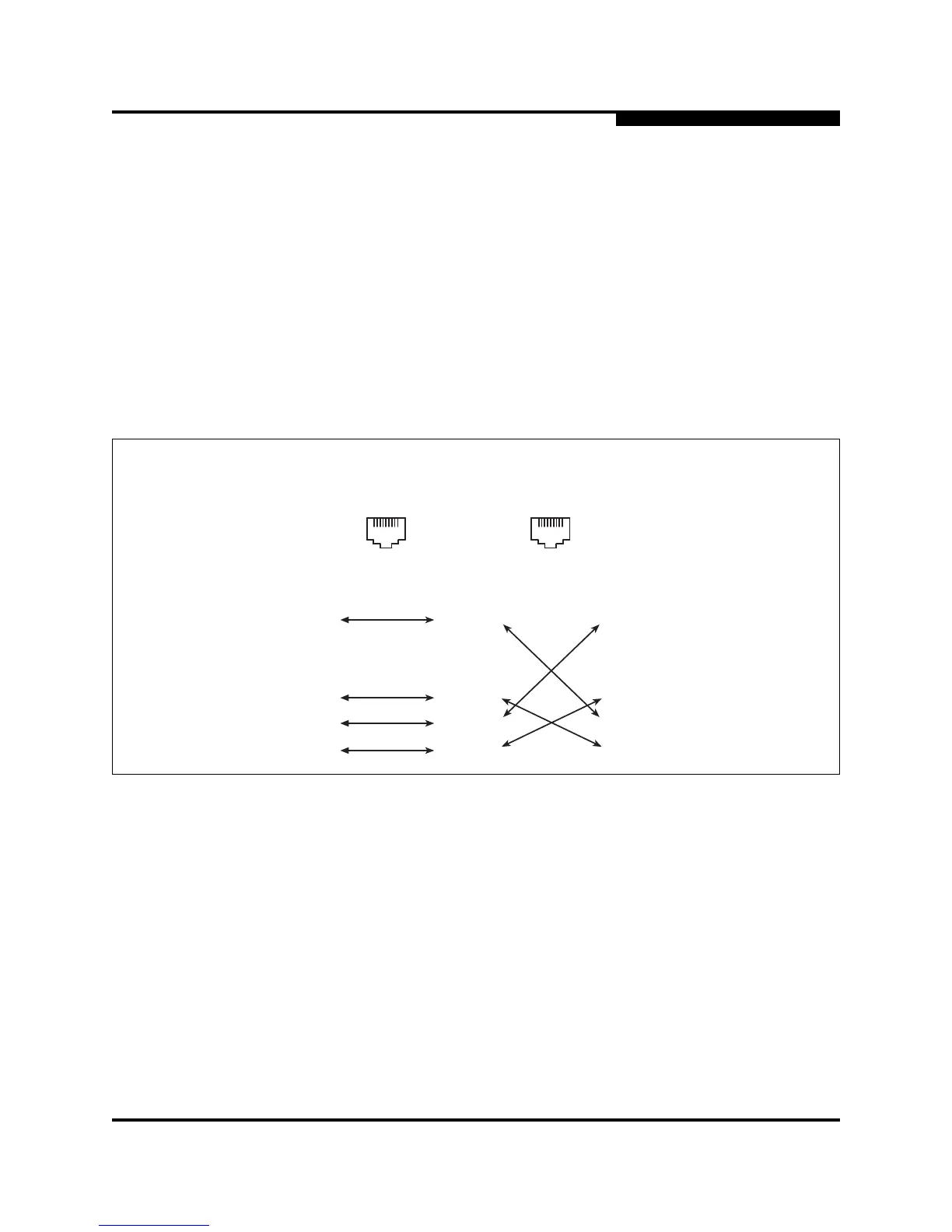

Figure 4-1. Workstation Cable Connections
81
8
1
2
7
6
5
4
3
8
1
2
7
6
5
4
3
81
8
1
2
7
6
5
4
3
8
1
2
7
6
5
4
3
Direct Ethernet
RJ-45 Connection
Indirect Ethernet
RJ-45 Connection
