2 – General Description
Fibre Channel Ports
59265-00 A 2-5
A
Port LEDs
Each port has its own Logged-In LED (L) and Activity LED (A) as shown in
Figure 2-4.

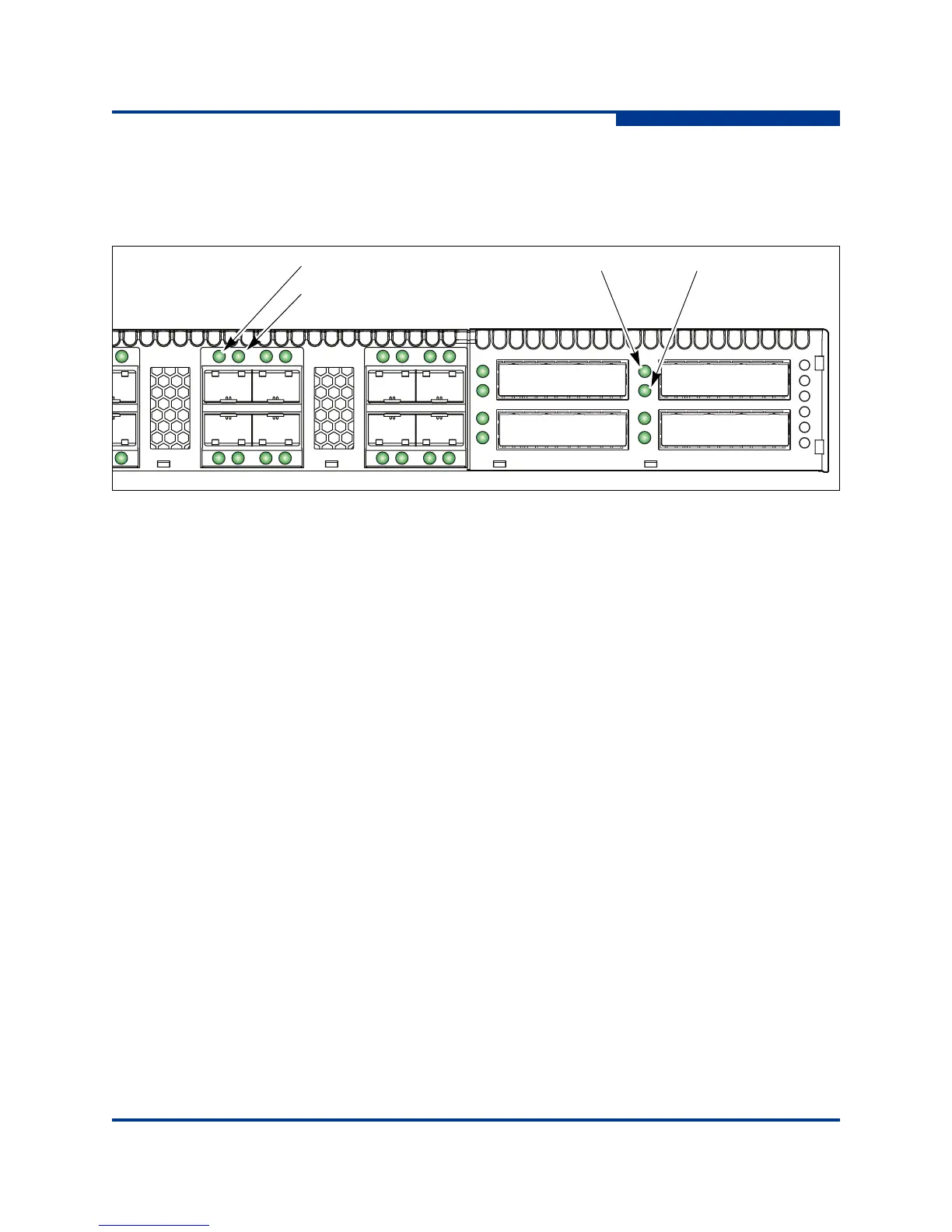

Figure 2-4 Port LEDs
Port Logged-In LED (Green)
The Logged-in LED indicates the logged-in or initialization status of the connected
devices. After successful completion of the POST, the switch extinguishes all
Logged-In LEDs. Following a successful port login, the switch illuminates the
corresponding logged-in LED. This shows that the port is properly connected and
able to communicate with its attached devices. The Logged-In LED remains
illuminated as long as the port is initialized or logged in. If the port connection is
broken or an error occurs that disables the port, the Logged-In LED is
extinguished. Refer to “Logged-In LED Indications” on page 5-7 for more
information about the Logged-In LED.
Port Activity LED (Green)
The Activity LED indicates that data is passing through the port. Each frame that
the port transmits or receives illuminates this LED for 50 milliseconds. This makes
it possible to observe the transmission of a single frame.
Logged-In LED Activity LED
Logged-In LED
Activity LED
