4 – Installation
Installing a Switch
4-6 59265-00 A
S
If you are using the XPAK ports, remove the port covers by the cover tabs using
your fingers or pliers as shown in Figure 4-2.

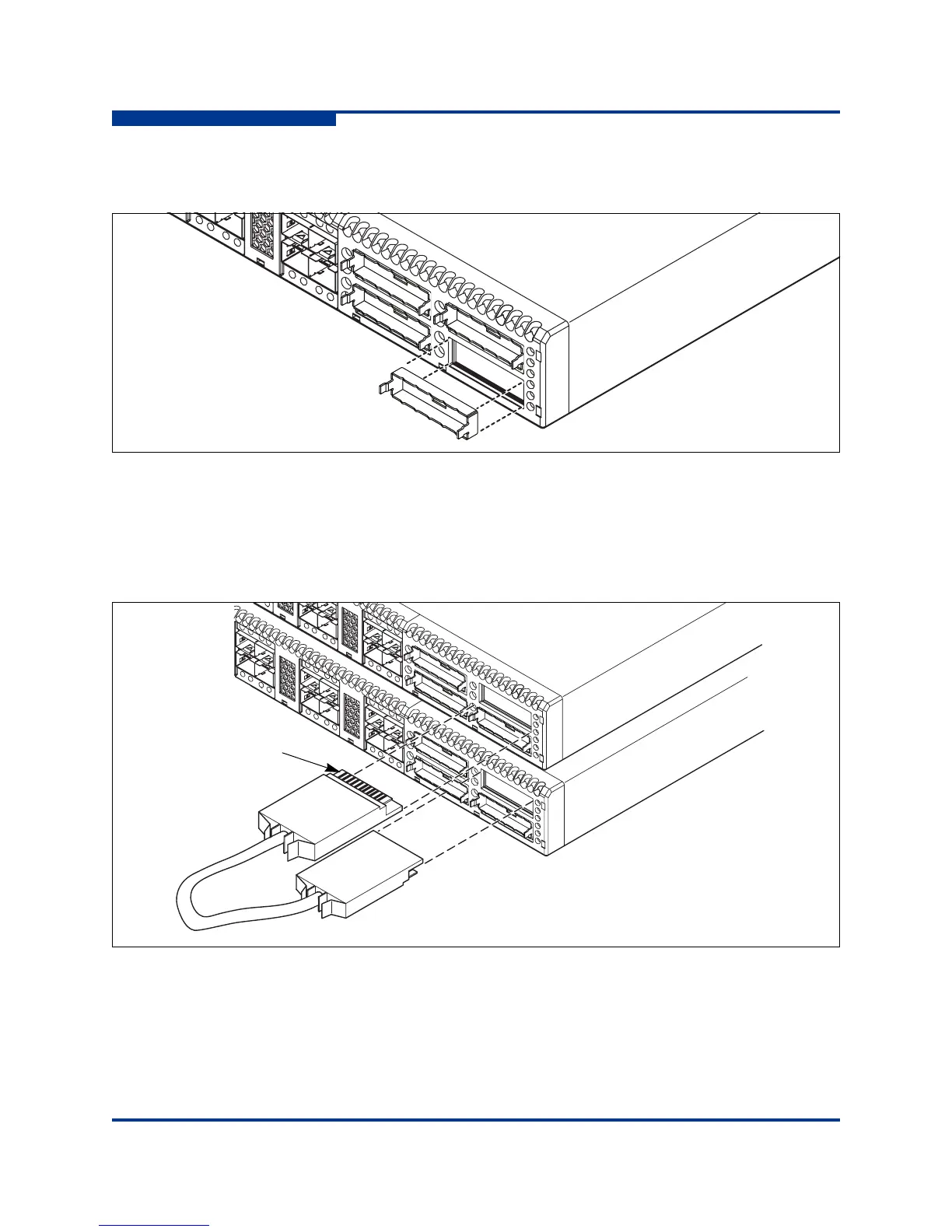

Figure 4-2 Removing XPAK Port Covers
To install XPAK switch stacking cables, position the cable connectors with the
circuit board toward the mid line of the respective switch faceplates as shown in
Figure 4-3. When installing the 3-inch XPAK switch stacking cable, insert the
cable connectors into the XPAK ports at the same time.
Figure 4-3 Installing XPAK Switch Stacking Cables
Circuit Board
To Next Page
