SCSI Bus Termination and Terminator Power B-5
SCSI Bus Termination and Terminator
Power
The following paragraphs describe information about
termination selection on different drives.
DLT4000 Drives
The DLT4000 drives can be configured to supply terminator
power and termination on the bus, by jumpering specific pins
on the TRM PWR/TRM ENB connector. See Figure B-5 for the
location of the TRM PWR/TRM ENB connector).

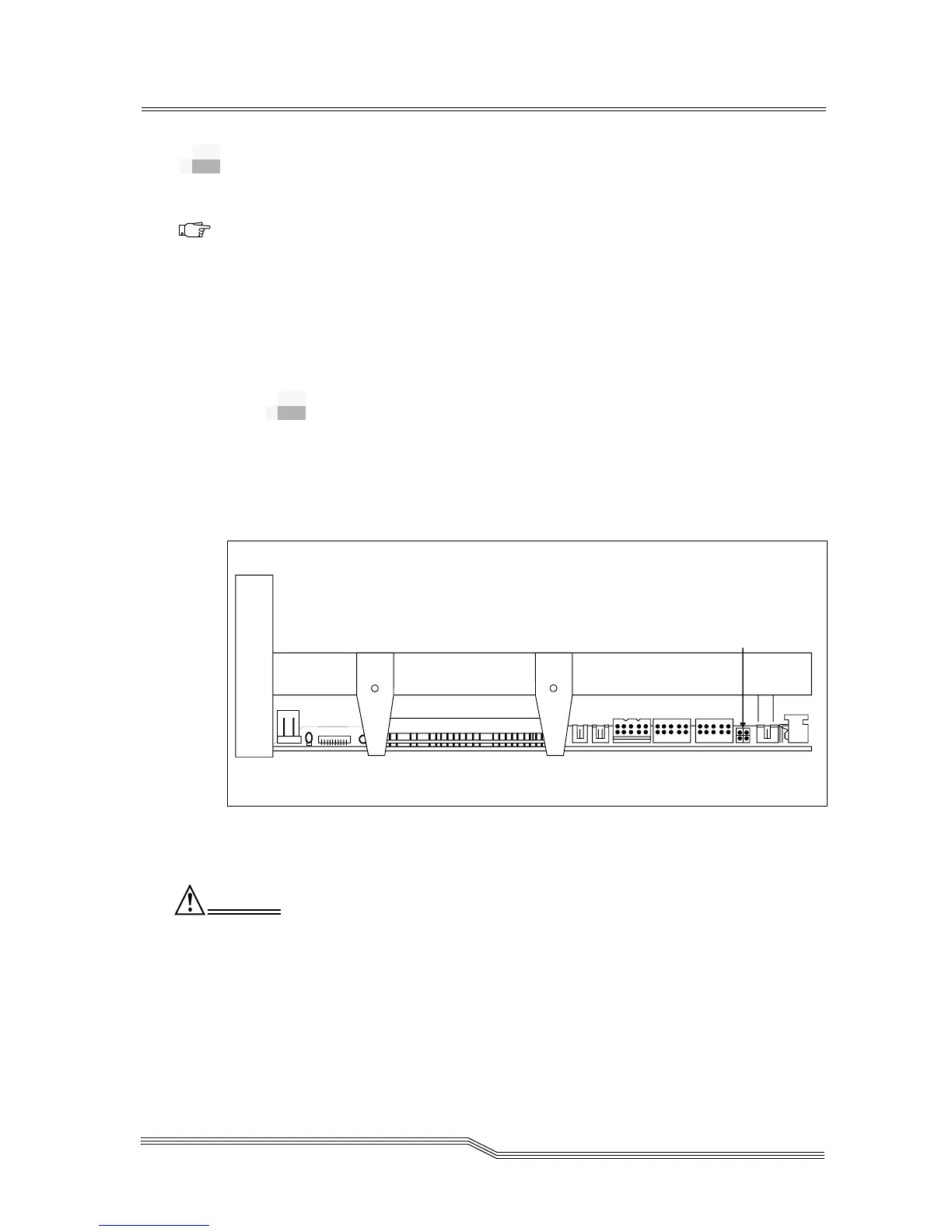

Figure B-5 DLT4000 Tape Drive Connectors (right side)
Figure 14 and the table following it illustrate the possible
position(s) for the TRM PWR/TRM ENB jumper(s).
If an external SCSI terminator is used, configurations 2 and
4 in Figure B-6 on page B-6 cannot be used.
Note
The SCSI bus
must be
terminated at
both ends, and at
least one device
must supply
terminator
power.
Front
Bezel
Ri
ht Side
TRM PWR/TRM ENB
Caution
