NOTE: The illustration shows a server that uses mounting rails. If your server does not use mounting
hardware, check that the holes in the chassis are aligned with the holes in the side of the tape drive.
Do not secure the drive at this point because you may have to move the drive to get the cables into
place.
Connect SAS and power cables to an LTO-6 SAS tape
drive
IMPORTANT:
A SAS HBA and appropriate SAS cable are required. LTO-6 tape drives require a SAS cable with
power connector.
1. If a SAS HBA is not already installed in the server, follow the instructions supplied with the HBA
to install it and any associated drivers before you install the tape drive.
2. Connect the purchased SAS cable to the SAS HBA.
3. Connect a spare power cable from the server's internal power supply to the power connector on
the SAS data cable.
4. Connect the SAS cable to the tape drive, as illustrated below.

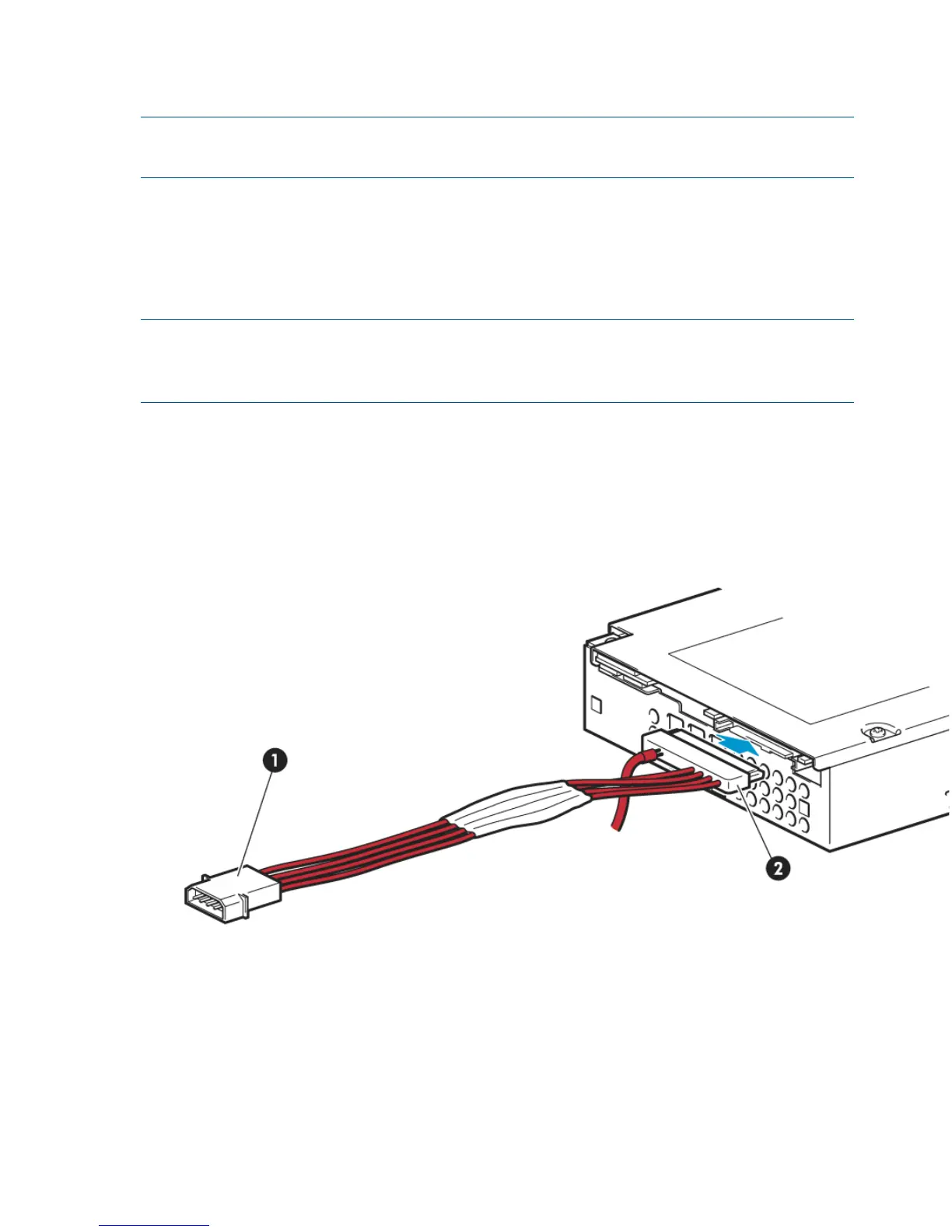

2. SAS connector1. Power connector
Figure 5 Connecting cables to the half-height LTO-6 tape drive
5. Now go to Secure the drive (page 11).
10 Installing an internal LTO Ultrium tape drive
