Quectel EC200U Series User Manual

LTE Standard Module Series
EC200U_Series_Hardware_Design 31 / 94

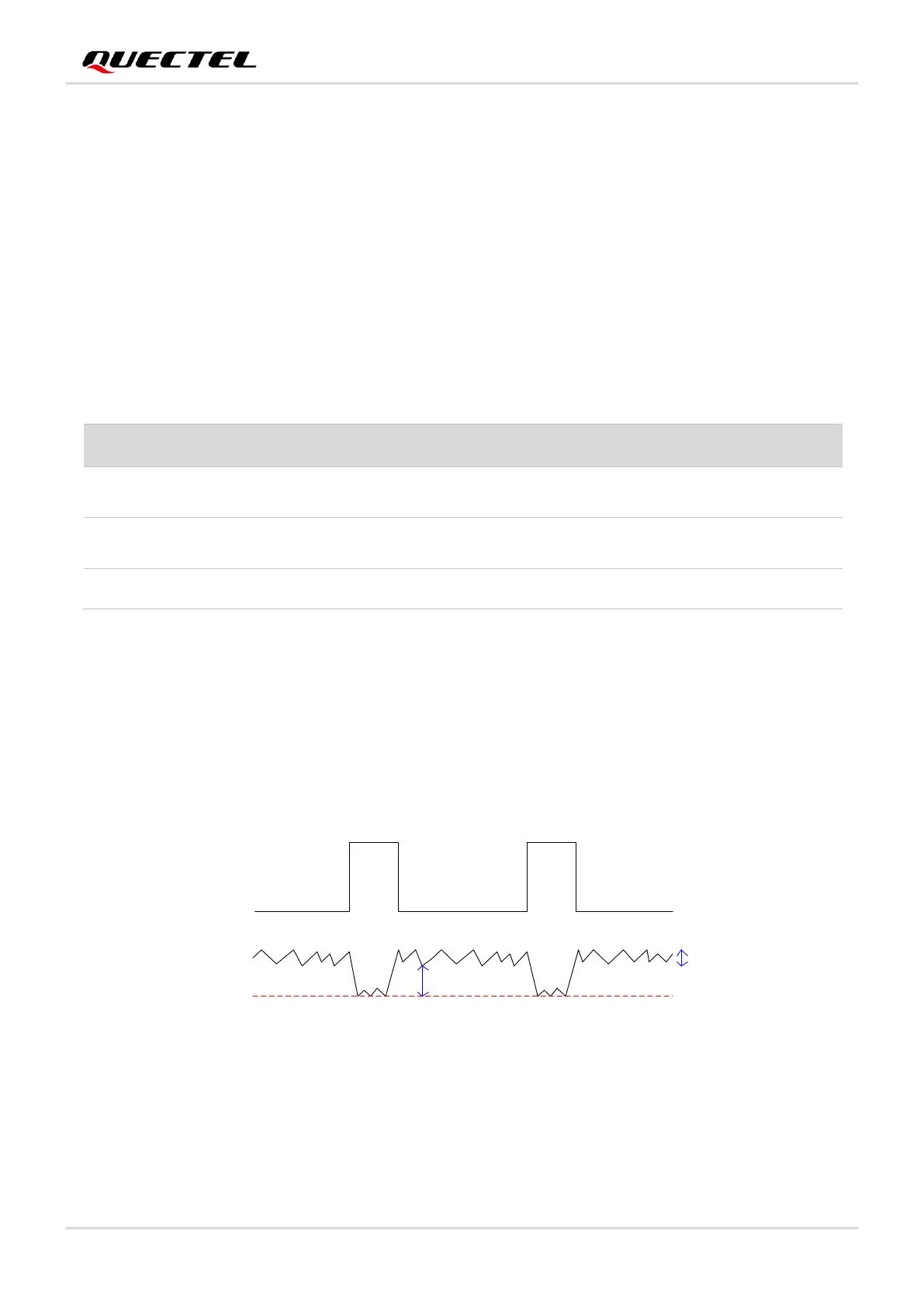

3.6. Power Supply
3.6.1. Power Supply Pins
The module provides four VBAT pins for connection with the external power supply. There are two
separate voltage domains for VBAT.
⚫ Two VBAT_RF pins for module’s RF part.
⚫ Two VBAT_BB pins for module’s baseband part and RF part.
Table 9: VBAT and GND Pins
Pin Name
Pin No.
Description
Min.
Typ.
Max.
Unit
VBAT_RF
57, 58
Power supply for module’s
RF part
3.3
3.8
4.3
V
VBAT_BB
59, 60
Power supply for module‘s
baseband part and RF part
3.3
3.8
4.3
V
GND
8, 9, 19, 22, 36, 46, 48, 50–54, 56, 72, 76, 85–112
3.6.2. Voltage Stability Requirements
The power supply range of the module is from 3.3 V to 4.3 V. Please make sure that the input voltage will
never drop below 3.3 V. The following figure shows the voltage drop during burst transmission in 2G
network. The voltage drop will be less in 4G networks.
VBAT
Ripple
Drop
Burst
Transmission
Burst
Transmission
Figure 7: Power Supply Limits during Burst Transmission
