Quectel EC200U Series User Manual

LTE Standard Module Series
EC200U_Series_Hardware_Design 83 / 94
6 Mechanical Information
This chapter describes the mechanical dimensions of the module. All dimensions are measured in
millimeter. The tolerances for dimensions without tolerance values are ±0.2 mm.
6.1. Mechanical Dimensions

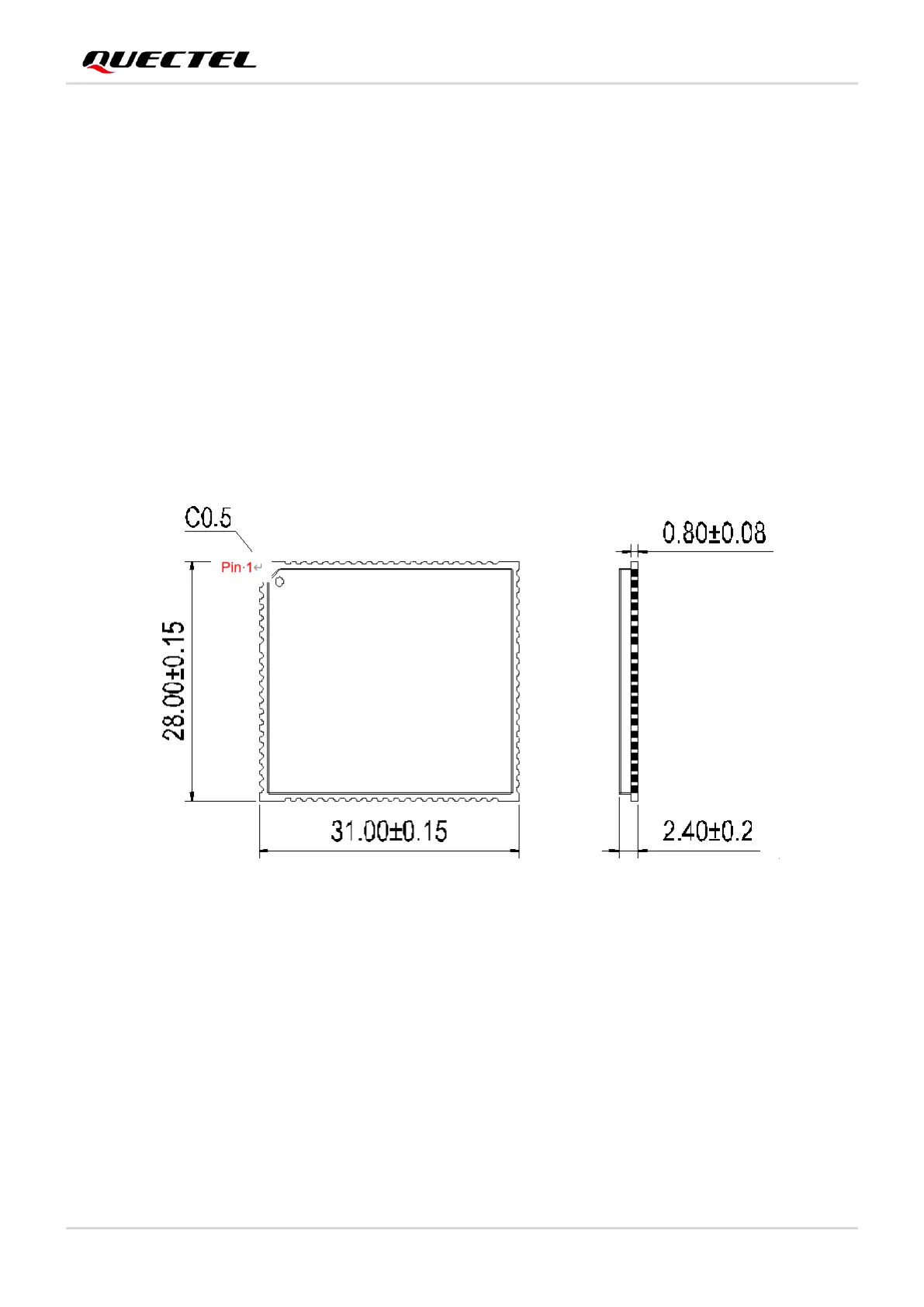

Figure 38: Module Top and Side Dimensions
