interface only supports USB slave mode and it can be used for AT command communication, data
transmission, software debugging and firmware upgrade.
Table 14: Pin Description of USB Interface
USB differential data bus (+)
Require differential
impedance of 90 Ω
USB differential data bus (-)
Require differential
impedance of 90 Ω
Typical 5.0 V,
Minimum 3.5 V
For more details about the USB 2.0 specifications, please visit http://www.usb.org/home.
Reserve test points for debugging and firmware upgrade in your design. The following figure shows a
reference circuit of USB interface.
USB_DP
USB_DM
GND
USB_DP
USB_DM
GND
L1
Close to Module
R3
R4
Test Points
ESD Array
NM_0R
NM_0R
Minimize these stubs
Module
MCU
USB_VBUS
VDD

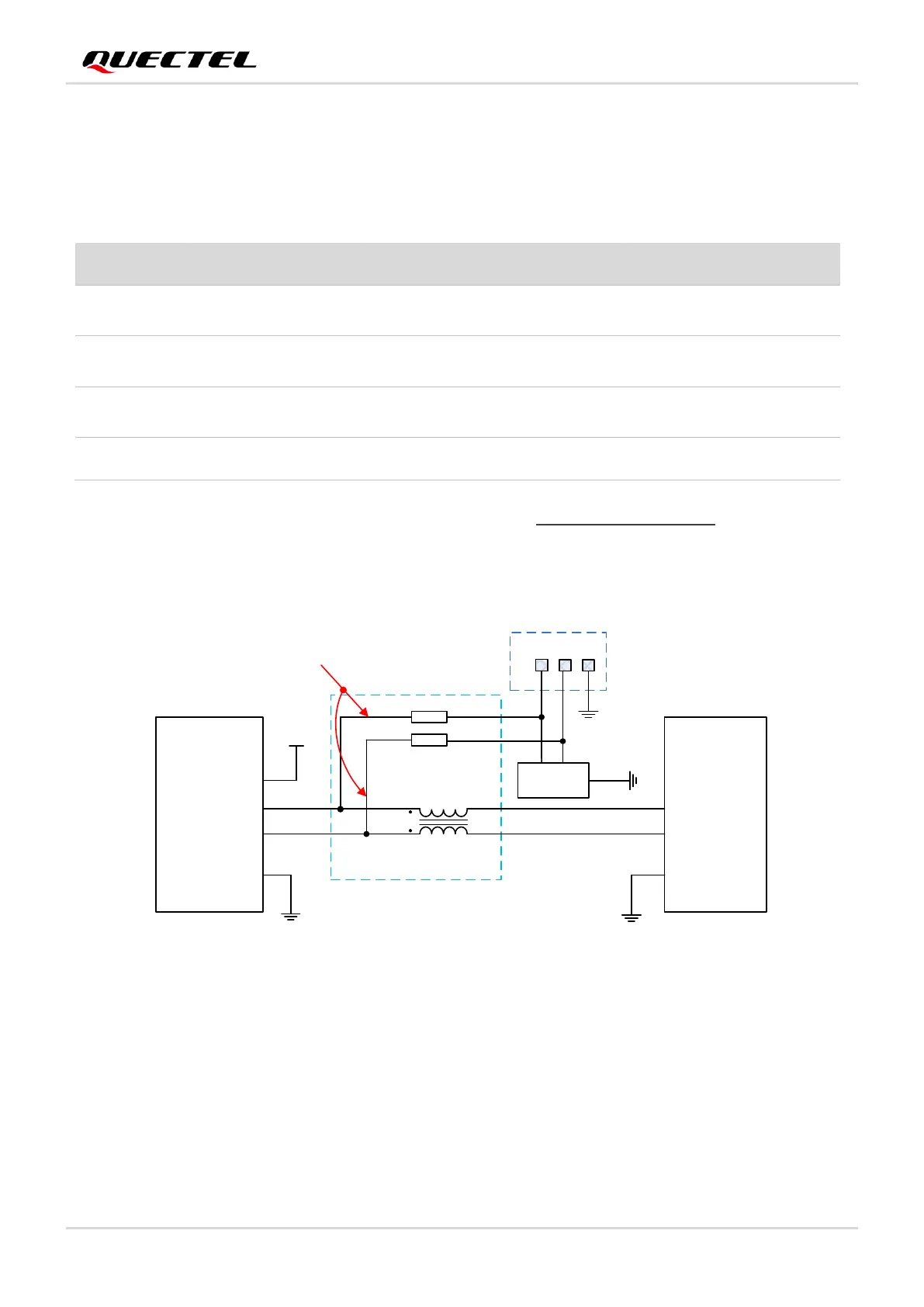

Figure 19: Reference Circuit of USB Application
A common mode choke L1 is recommended to be added in series between the module and your MCU in
order to suppress EMI spurious transmission. Meanwhile, the 0 Ω resistors (R3 and R4) should be added
in series between the module and the test points so as to facilitate debugging, and the resistors are not
mounted by default. In order to ensure the integrity of USB data line signal, L1, R3 and R4 components
must be placed close to the module, and also these resistors should be placed close to each other. The
