Quectel L76 Hardware Design

GNSS Module Series
L76&L76-L_Hardware_Design 48 / 59
7 Mechanical Dimensions
This chapter describes the mechanical dimensions of the three modules. All dimensions are in millimeters
(mm). The dimensional tolerances are ±0.20 mm, unless otherwise specified.
7.1. Top, Side and Bottom View Dimensions
2.5±0.15
1.0±0.10
9.7±0.15
10.1±0.15
8.84±0.10
9.18±0.10
0.65
9.70
10.10
0.90
0.80
1.10
? 0.50
7.90
0.65
0.650.65
1
9
10
18
Pin 1

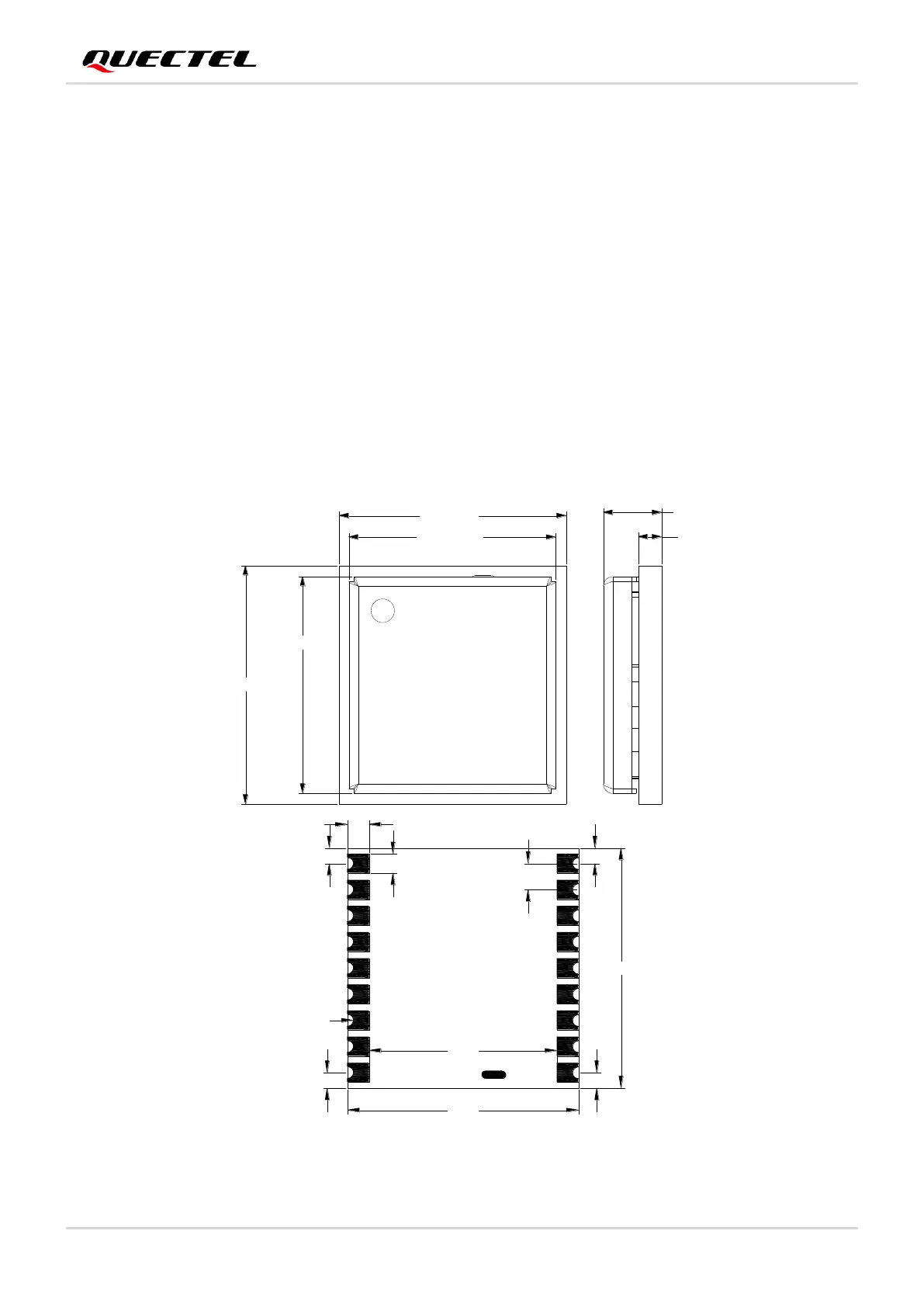

Figure 26: Top, Side and Bottom View Dimensions
