Quectel M12 User Manual

M12 Hardware Design
M12_Hardware_Design_V3.3 - 42 -
460800bps.
Computer
TXD
RXD
GND
Module (DCE)
Debug port
DBG_TXD
DBG_RXD
GND

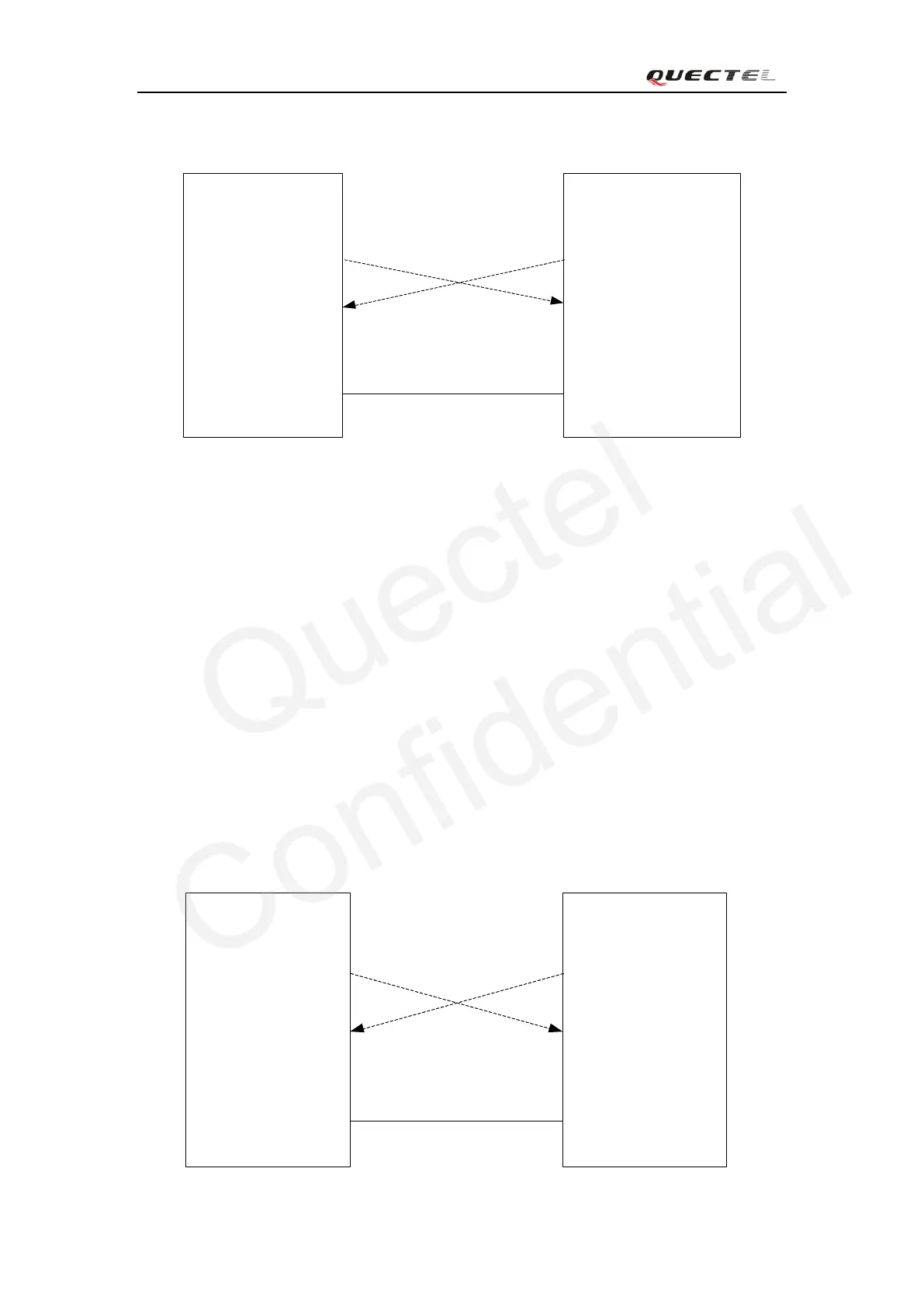

Figure 22: Connection of debug port
3.8.3. UART3 Port
UART3:
 Two data lines: TXD3and RXD3
 UART3 port is used for AT command only and does not support GPRS data, CSD,
Multiplexing function etc.
 UART3 supports the communication baud rates as the following:
4800, 9600, 14400, 19200,28800,38400,57600,115200
 The default baud rate setting is 115200bps, and autobauding is not supported. The baud rate
can be modified by “AT+QSEDCB” command. For more details, please refer to document
[1].
Host (DTE)
Controller
TXD
RXD
GND
Module (DCE)
TXD3
RXD3
GND
Quectel
Confidential
