5G/LTE-A Module Series
5G EVB User Guide
5G_EVB_User_Guide 14 / 38
2.3. Top and Bottom Views of 5G EVB
The following figures shows the top and bottom views of the 5G EVB.

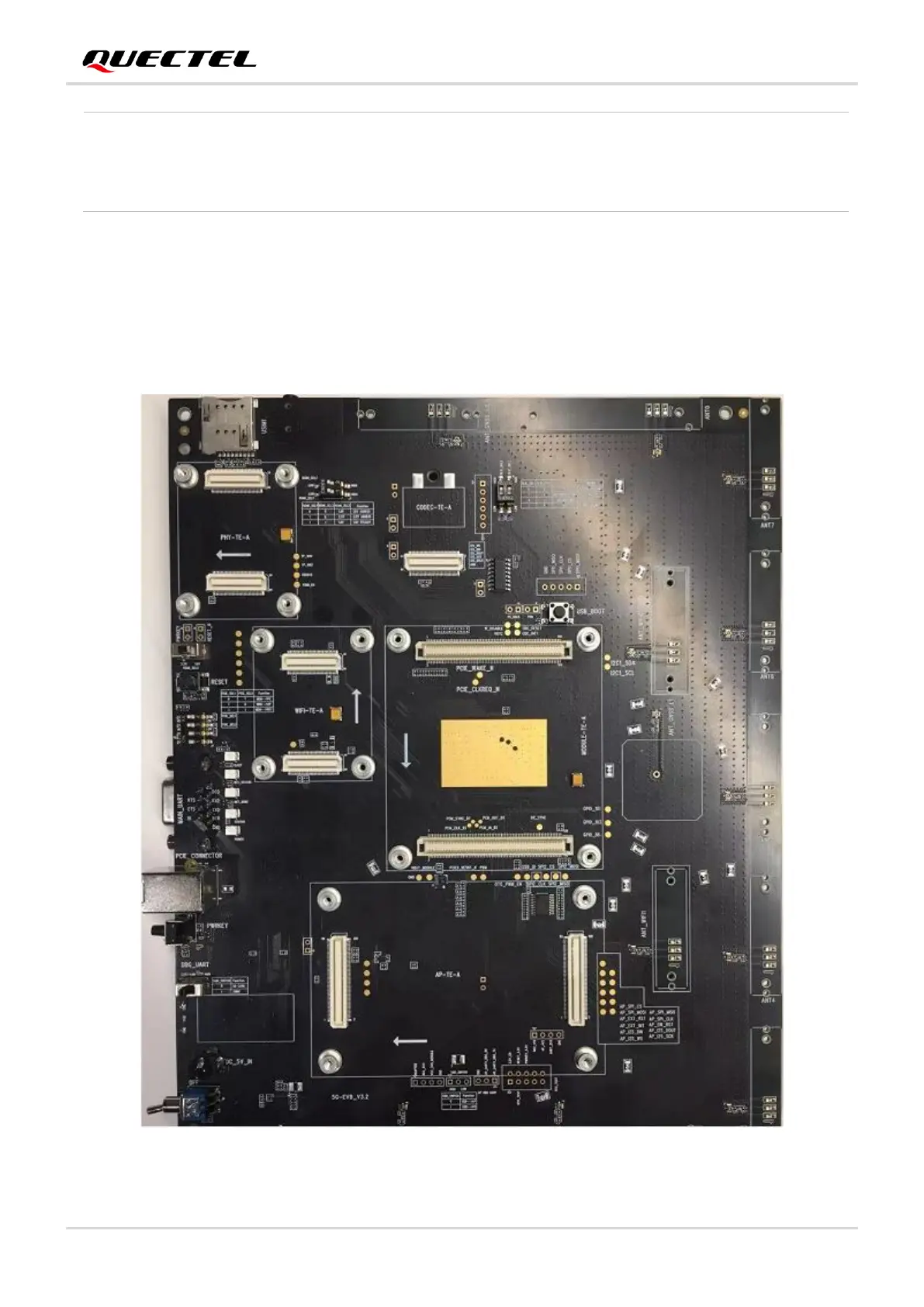

Figure 3: 5G EVB Top View
Antenna
J2303, J2304, J2307,
J2308, J2311, J2312,
J2315, J2317, J2318,
J2346, J2347, J2348
Antenna connectors
