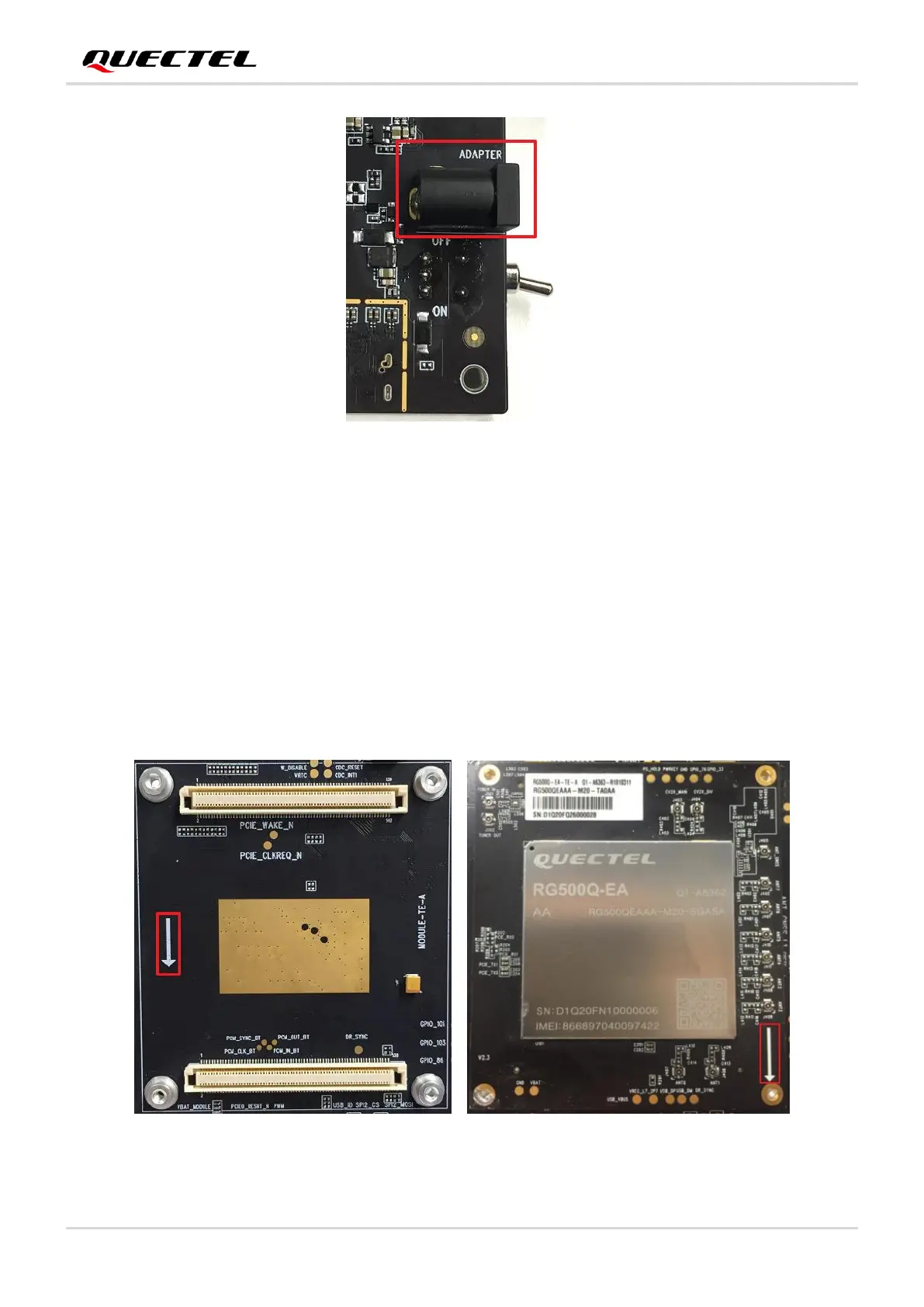

Figure 6: EVB Power Supply Interface
3.2. Module TE-A Interface (J0101/J0102)
Module TE-A interface is designed to accommodate the TE-A of the modules. The TE-A is mounted onto
and connected to the EVB via BTB connectors J0101 and J0102. The developer will be able to test the
functionalities of the modules easily (insert as indicated by the arrow to prevent reverse insertion).
The following figure displays the connection between the module TE-A and the EVB.
Figure 7: Connection Between the Module TE-A and the EVB
