Quectel RG50-Q Series User Manual

5G/LTE-A Module Series
5G EVB User Guide
5G_EVB_User_Guide 31 / 38
Table 11: Description of Switches and Buttons

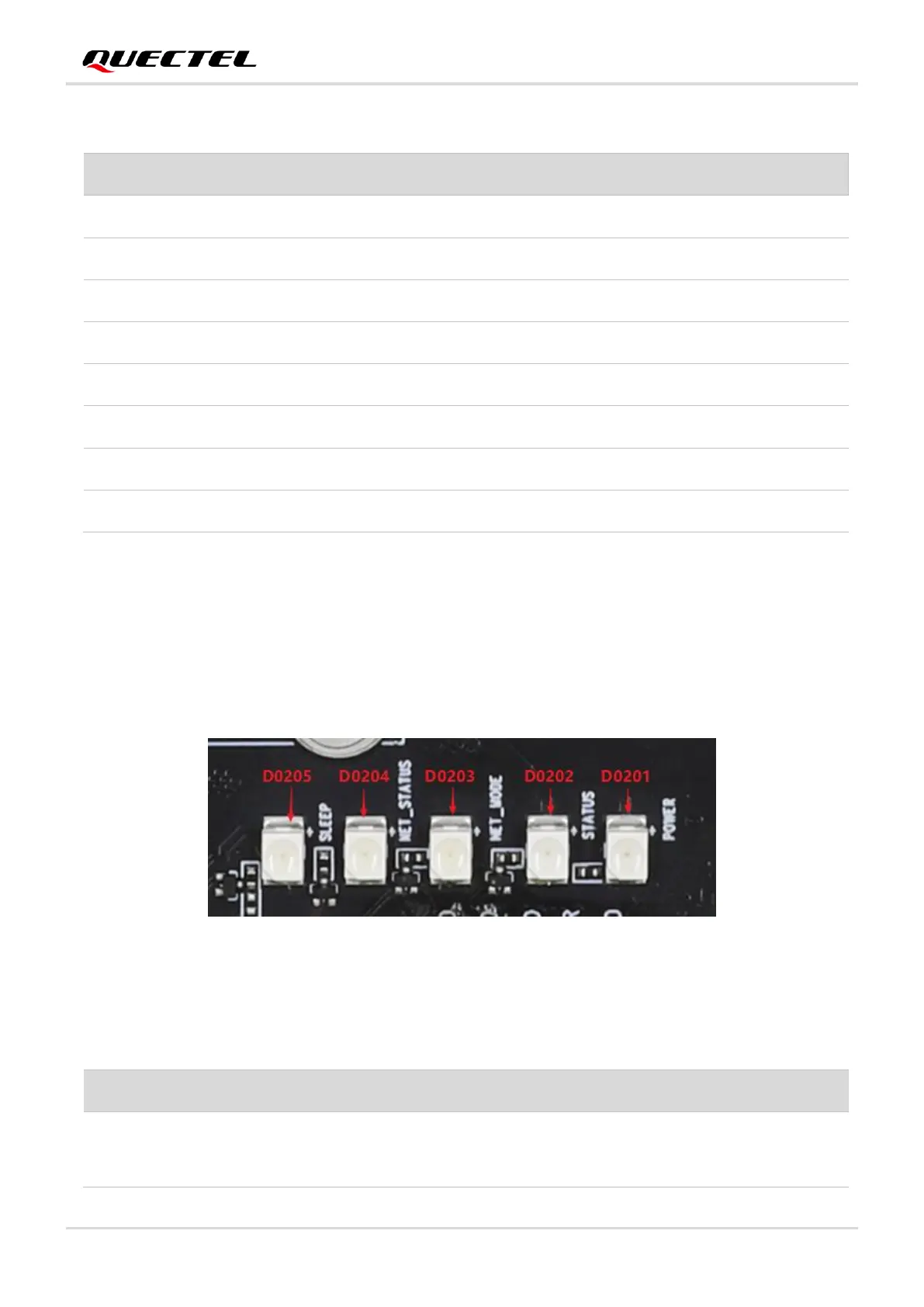

3.11. Status Indicators (D0201/D0202/D0203/D0204/D0205)
There are five status indication LEDs on the EVB. The following figure manifests the positions of these
LED indicators.
Figure 29: Status Indicator
Table 12: Description of Status Indication LEDs
Interface
Reference Designator
Description
Power Switch
S0301
VBAT ON/OFF control
PWRKEY
S0202
Power key used to turn on/off the module.
PCIe Configuration
S1501
PCIe configuration switch. Refer to Chapter 3.9
RESET
S0201
Reset button used to reset the module.
USB_BOOT
S0203
Emergency download control.
RGMII Configuration
S1801, S1802
RGMII configuration switch. Refer to Chapter 3.3
SDIO Configuration
S2501
SDIO configuration switch. Refer to Chapter 3.7
Codec Configuration
S2801
Codec configuration switch. Refer to Chapter 3.5
Reference Designator
Description
D0201
Indicates whether the power supply for module is ready.
On: VBAT ON
Off: VBAT OFF
