2. Product Overview
2.1 Front Panel

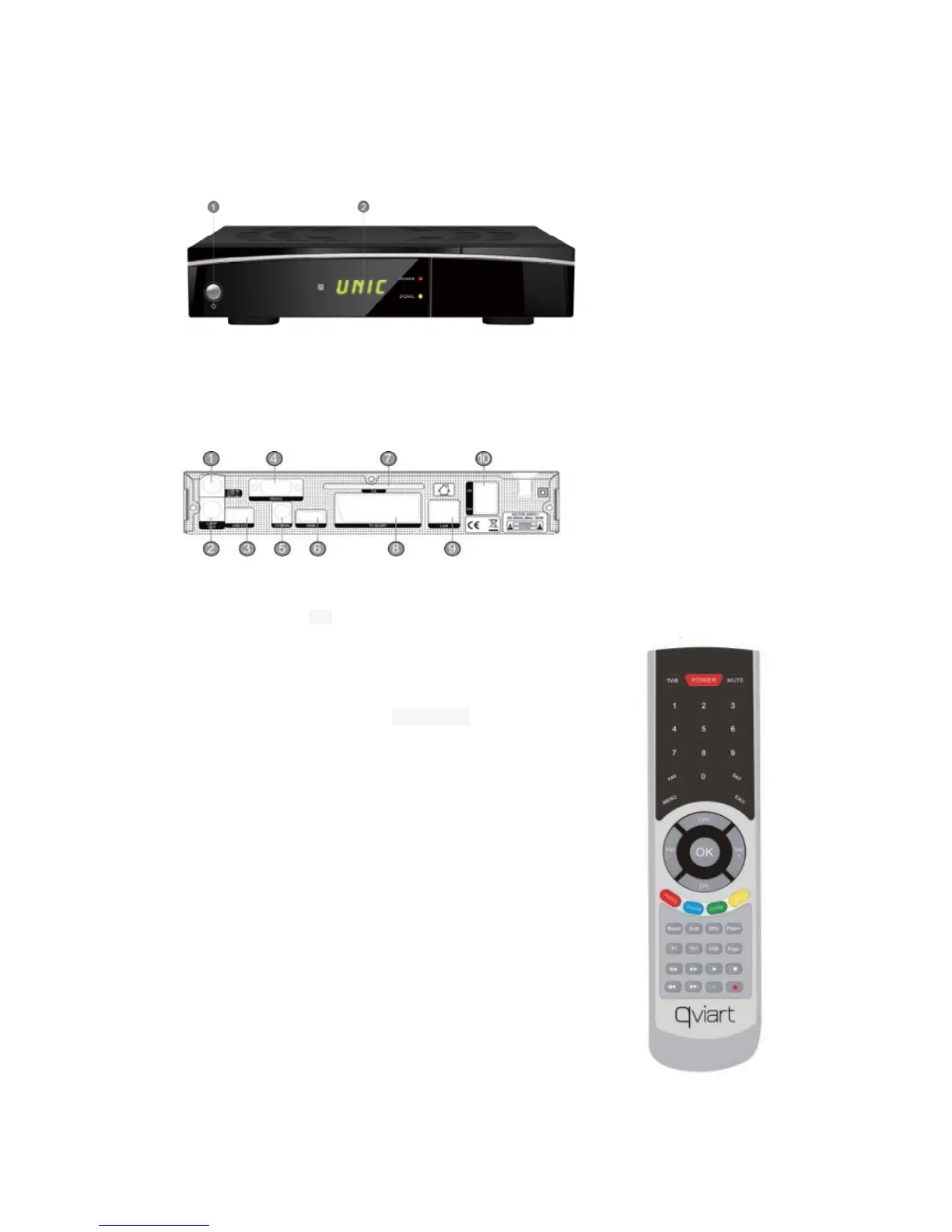

Figure 2. Front Panel
1. Power button Switch between operation and standby modes.
2. Display It displays channel information. In standby mode it displays local time.
2.2 Rear Panel
Figure 3. Rear Panel
1. LNB IN Connect the satellite antenna cable.
2. LOOP OUT Connect another receiver.
3. USB2.0 Connect USB
disk.
4. RS232 Connect to the computer using a serial line.
5. COAXIAL Digital Audio output (Coaxial).
6. HDMI Connect to the TV using an HDMI cable.
7. CA CA interface.
8. TV scart Connect to the TV using a scart cable.
9. LAN Connect to the Ethernet using a
Network cable
10. ON/OFF Power on/off.
2.3 Remote Control Unit (RCU)
You can control this receiver by this remote controller with full function.
1. POWER: power switch
2. MUTE: Mute audio.
3.AUDIO: Display the audio list.
4. PAUSE: Freeze the picture.
5. ZOOM: Picture zooming function.
6. INFO: Display the program information.
7.: Fast rewind.
8.
