18.1.3. Selecting a part for counting from balance’s database
Enable parts counting mode in accordance with below figure.

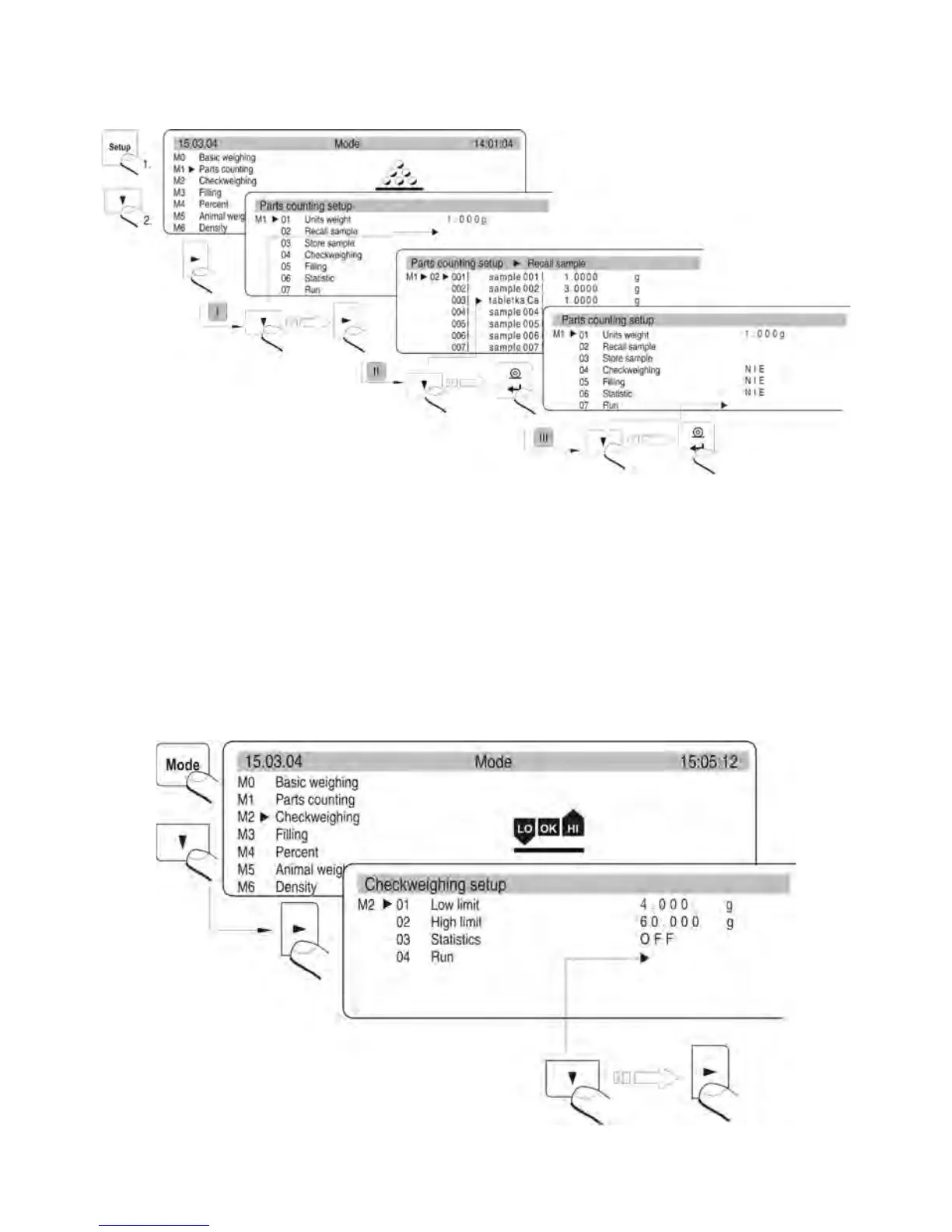

Fig. 34. Selecting a part for counting from the database
Select a record from the database, and start part counting process.
18.2. Checkweighing
Checkweighing is a process intended for precise determining mass of a weighed sample
with set and enabled checkweighing thresholds (limits). The thresholds are to visualize (by
means of a bargraph located on the left side of the display) and monitor checkweighing
process.
Mode activating
FIg. 35. Checkweighing – mode activating
