• Connectorized ODU
This ODU has 2xN-type connectors for connecting an external antenna
• HSU only - SFF (Connectorized) ODU
The SFF ODU is slightly “fatter” and heavier than a regular connectorized ODU since it
requires extra space for the built-in antenna.
External Antenna Package Contents
The HBS requires a dual pole sector antenna. HSUs may use any suitable dual pole directional
antenna.
External antennas are available for the RADWIN 5000 HPMP radios, varying in operating fre-
quencies, form factor, size and gain.

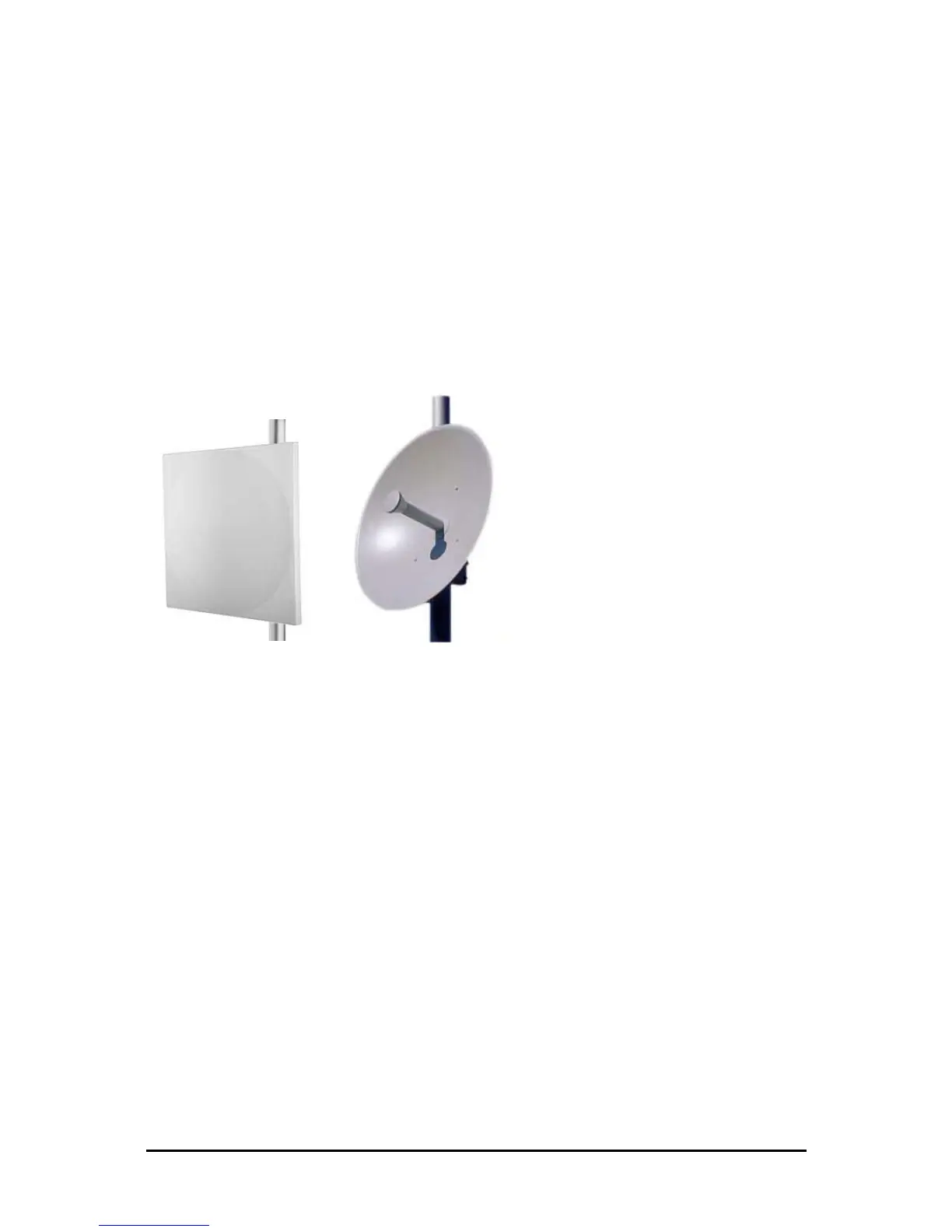

Figure 3-3: External Antennas for use with RADWIN 5000 HPMP
See the RADWIN products catalog for RADWIN offering of external antennas. External anten-
nas are also available from third party antenna vendors.
Antenna kits contain -
• An antenna
• Two RF cable 1m (3’) long
• Mounting kit
Power Over Ethernet (PoE) Devices
GbE PoE
RADWIN’s Gigabit Power over Ethernet (GbE PoE) device provides data and power to RAD-
WIN 5000 outdoor units. The PoE device is available with a variety of AC cables with different
plug types.
This the recommended unit for use with a HBS.
It differs externally from the regular PoE in Figure 3-4 below, having an extra LAN port for
management.
