RADWIN 5000 HPMP User Manual
Release 3.1.00
4-8
Sector Status Panel
Chapter 4
Table 4-4: HBS main button bar functions
Menu Item
Purpose
Reference
Preferences
Monitor - File location, interval and throughput units
Events - Color coding for events log and events log file location
Advanced - Enable/disable check for updates, monitoring interval and time-out
Software Upgrade
Perform software upgrade for a sector
Get Diagnostics
Run and store diagnostics for all or some members of a sector
Log Off
Return to log-on window
Help
Link Budget Calculator
Check Updates
About
Sector Status Panel
The sector level information is shown here. There is nothing that can be changed for an
active sector. The parameters are set before the base station is activated and are duplicated
for each HSU in the sector.

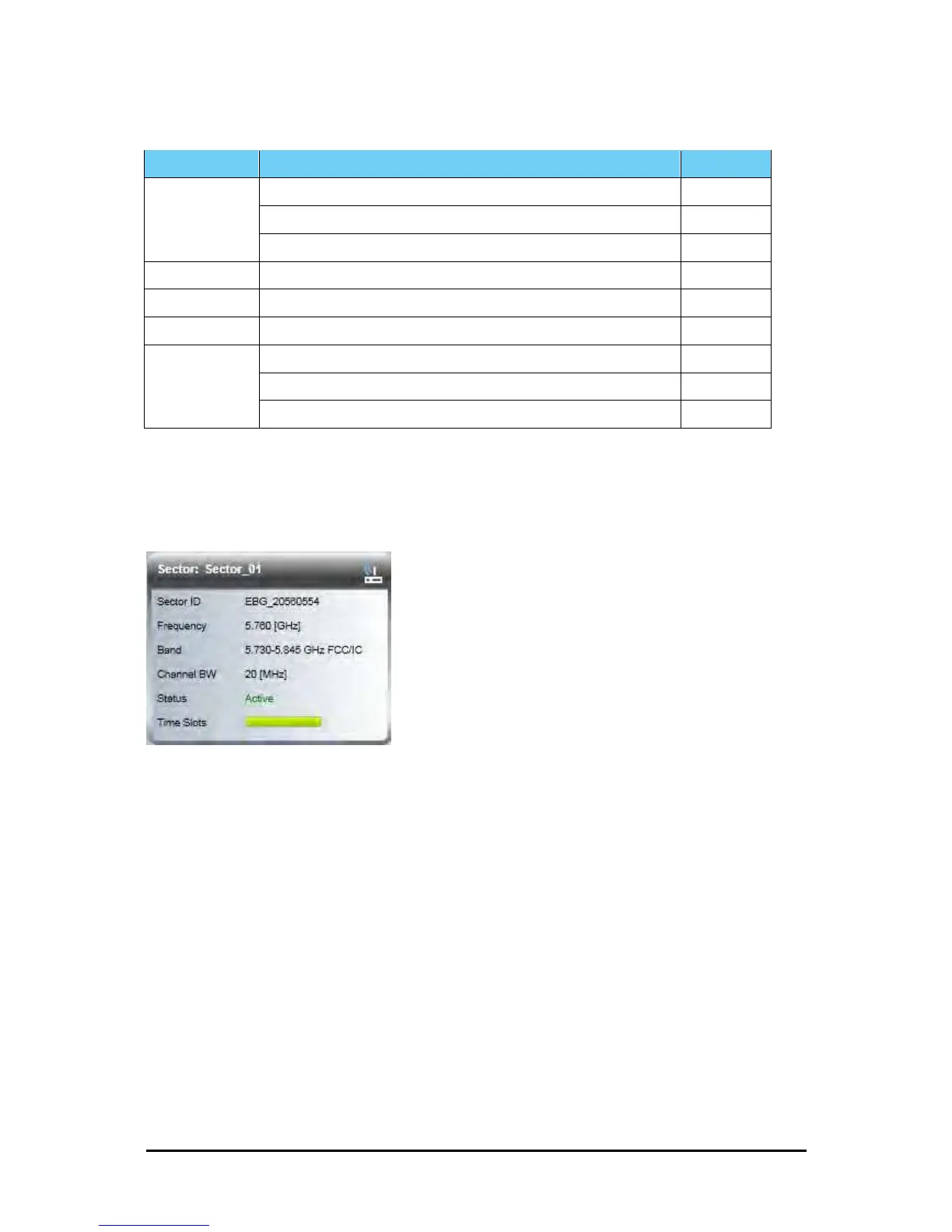

Figure 4-10: Sector Status panel
The last two items are of special interest: The Status (shown as Active) indicates whether
the HBS has been activated or not. The Time Slots bar indicates how many out of 16 time
slots, have been allocated to HSUs. Allocation of time slots between HSU provides a basic
form of prioritization between them. Normally you would not leave unallocated time slots
unless you intended to add more HSUs. Every HSU requires at least one time slot.
Base Station Panel
The displayed items in the Base Station panel are straight forward.
