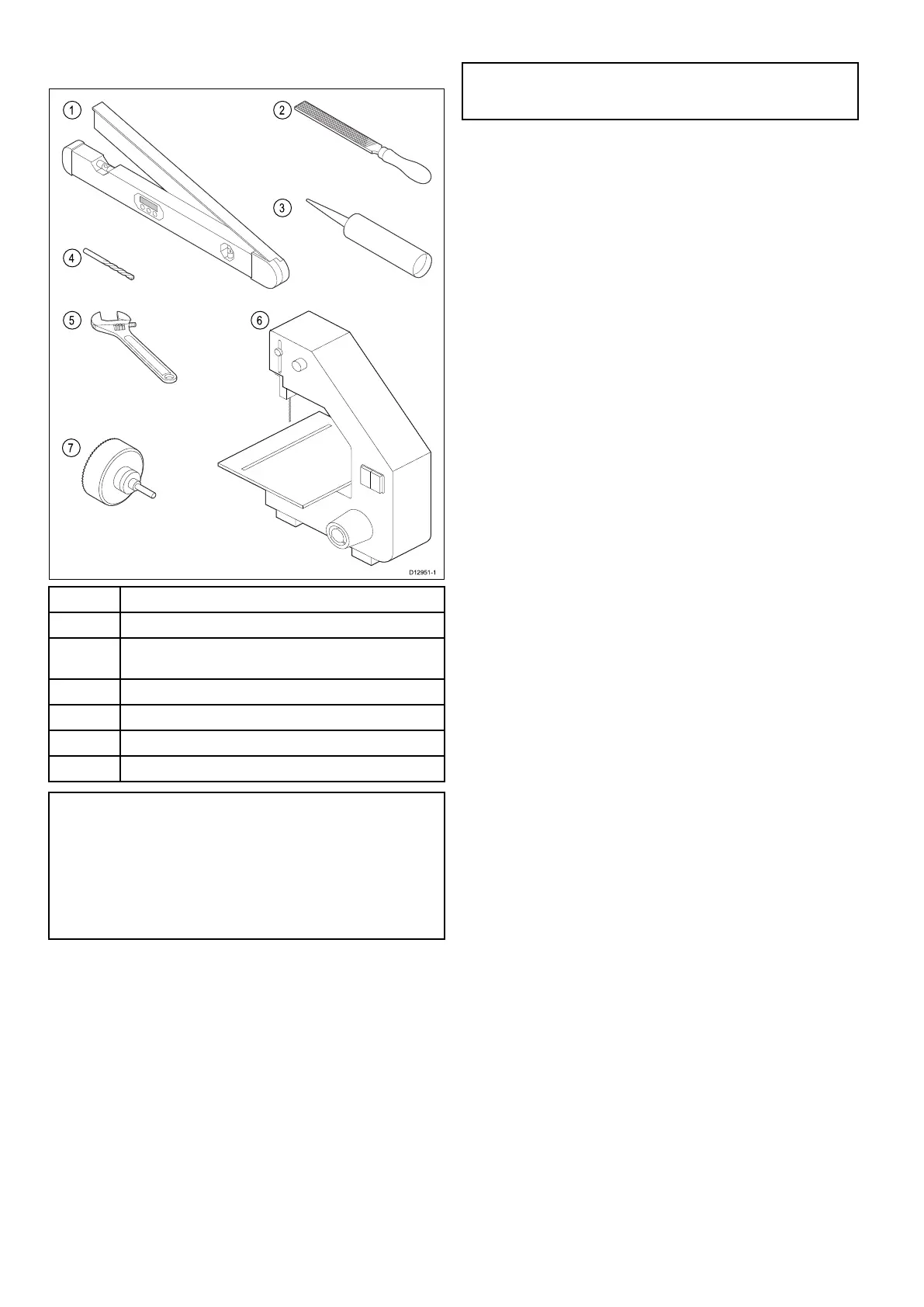

3.5 Tools required
The following tools are required to install the transducer.
1
Angle nder
2 File
3
*Marine grade adhesive sealant (suitable for submerged
applications)
4
Drill bit (for drilling the pilot hole)
5
Adjustable spanner (suitable size for the transducer nut)
6
Band saw (for cutting the Dead rise block)
7
32 mm (1 1/4 in) hole cutter
Important:
*It is the installers responsibility to ensure correct installation.
Before installing the transducer please check the sealant
manufacturer’s guidelines to ensure it is suitable for use in
the intended environment and with the materials used in the
transducer and your vessel’s hull.
Raymarine accepts no liability for damage caused due to the
use of unsuitable materials.
3.6 Warnings and cautions
Important: Before proceeding, ensure that you have read
and understood the warnings and cautions provided in the
Chapter 1 Important information section of this document.
16 CPT-70 / CPT-80 / CPT-110 / CPT-120
